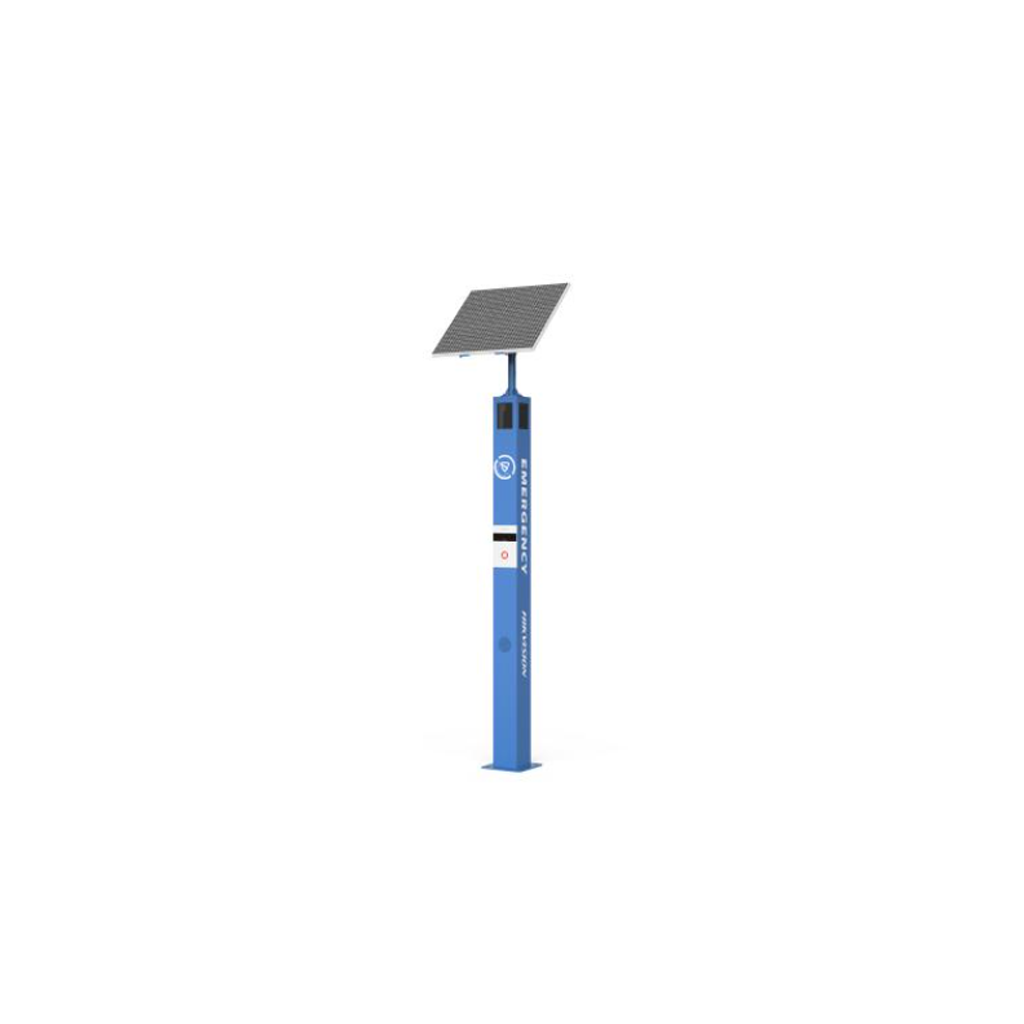

HIKVISION DS-PEA301-CVS1-AL
Solar Panic Alarm Station
Features
- One-touch emergency calling
- High quality imaging with 2 MP bulit-in camera
- Supports siren and audio expansion
Specification
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded Linux Operation System |
| Camera | 2 MP HD IR Camera |
| Audio Input | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 1 m |
| Audio Output | 1-ch 15 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output |
| Network Protocol | ISUP5.0, STD_SIP, TCP/IP, RTSP |
| Ethernet | 10 M/100 M self adaptive(Internal use only) 4G |
| Ethernet Port | 1xRJ45,10 M/100 M self adaptive(Internal use only) 4G |
| IO Input | 1 |
| IO Output | 1 |
| Switch | No |
| Alarm Lamp | 1 Red and Blue Alarm Lamp, Light Can be Configured Separately |
| Siren | 1, Sound Can be Configured Separately |
| SD Card | Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G |
| Power Supply | DC12V |
| Operation Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Installation | Ground Mounting |
| Dimension(mm) | 350 × 350 × 2440 (without solar panel) 760 × 490 × 3160 (solar panel installed with 45° horizontal angel) |
