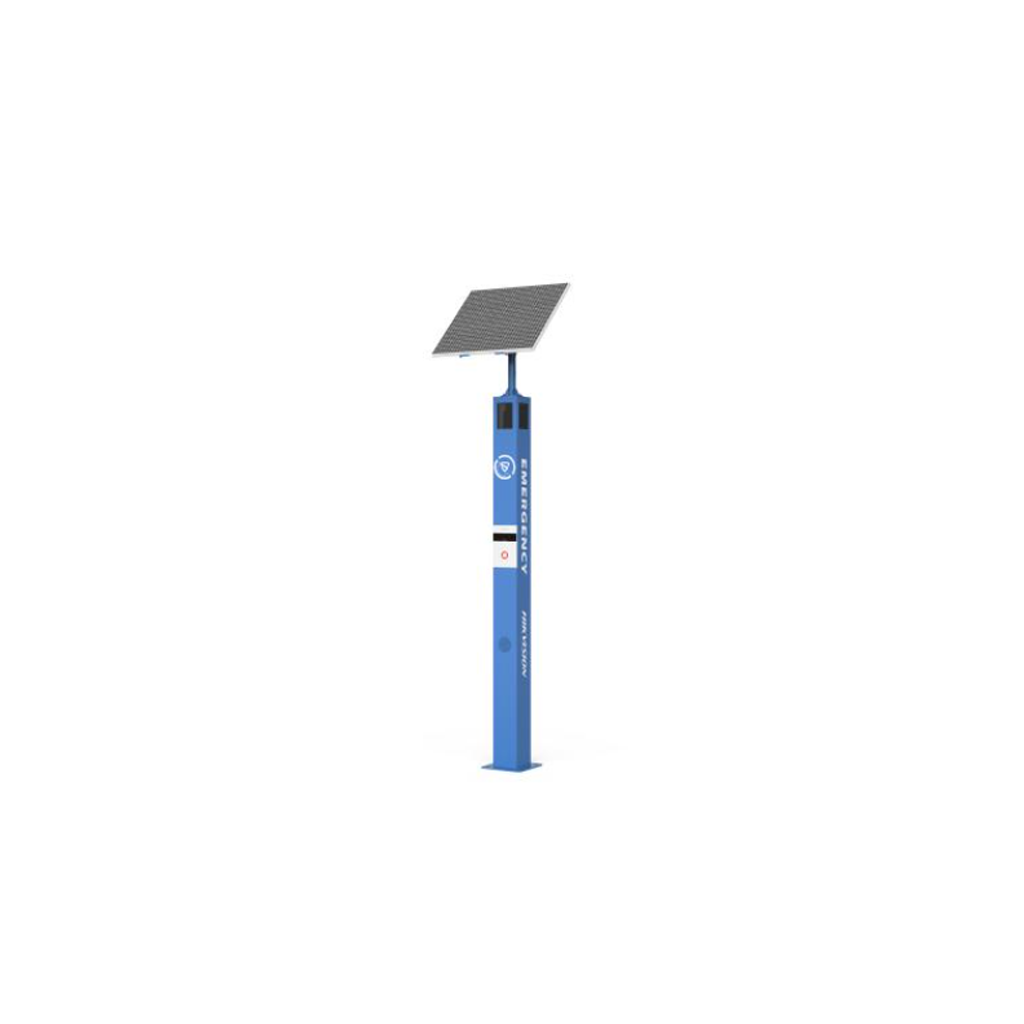

HIKVISION DS-PEA301-CVS1-EA
Solar Panic Alarm Station
Features
- Solar panel and 4G wireless solution for easy deployment
- One-touch emergency calling
- Quantity audio tech and embedded 2M HD camera for high efficiency 2-way communication
- Real-time security via sound and voice detection
- Supports remote broadcasting
- Built-in SD slot supports MicroSD / SDHC / SDXC up to 256 GB
- Supports siren and audio expansion
- Supports standard SIP and ISUP5.0 for VMS compatibility
Specification
| Software features | |
| Tamper-Proof | Tamper Alarm |
| Protocol | ISUP5.0, STD_SIP, TCP/IP, RTSP |
| Hardware features | |
| Alarm input | 1 |
| Alarm output | 1 |
| Siren | Sound Can be Configured Separately |
| Lamp | 1 Red and Blue Alarm Lamp, Light Can be Configured Separately |
| Netowrk interface | 1xRJ45,10 M/100 M self adaptive(Internal use only) 4G |
| Audio interface | 1-ch Built-in Omnidirectional Microphone |
| SD Card | Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G |
| Loudspeaker | Sound Can be Configured Separately |
| Video | |
| Video compression standard | H.264;H.265 |
| Frame rate |
25fps |
| Field Angle | Diagonal: 135° |
| Day/night switch mode | IR Cut Filter |
| Audio | |
| Audio input | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 1 m |
| Audio output | 1-ch 15 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output |
| Audio encoding/decoding standard | G.711U |
| Audio quality | Smart Noise Suppression;AEC |
| Audio compression code rate | 64Kbps |
| Electrical characteristics | |
| Power supply | DC12V |
| Power Consumption | 1. Sleep mode: ≤ 40mW 2. Low consumption mode: ≤ 2W 3. Full consumption mode: ≤ 35W |
| Wireless transmission | |
| Wired network | 10 M/100 M Self-adaptive Ethernet port |
| General | |
| Operation temperature | -20° ~ +60° |
| Operation humidity | 10％-90％ |
| Dimension(WxHxD) | 350x350x2440(without solar panel) 760x490x3160(solar panel installed with 45° horizontal angel) |
| IP Rate | IP65 |
| Installation method | Ground Mounting |
| Device management | |
| Camera | 2 MP HD IR Camera |
