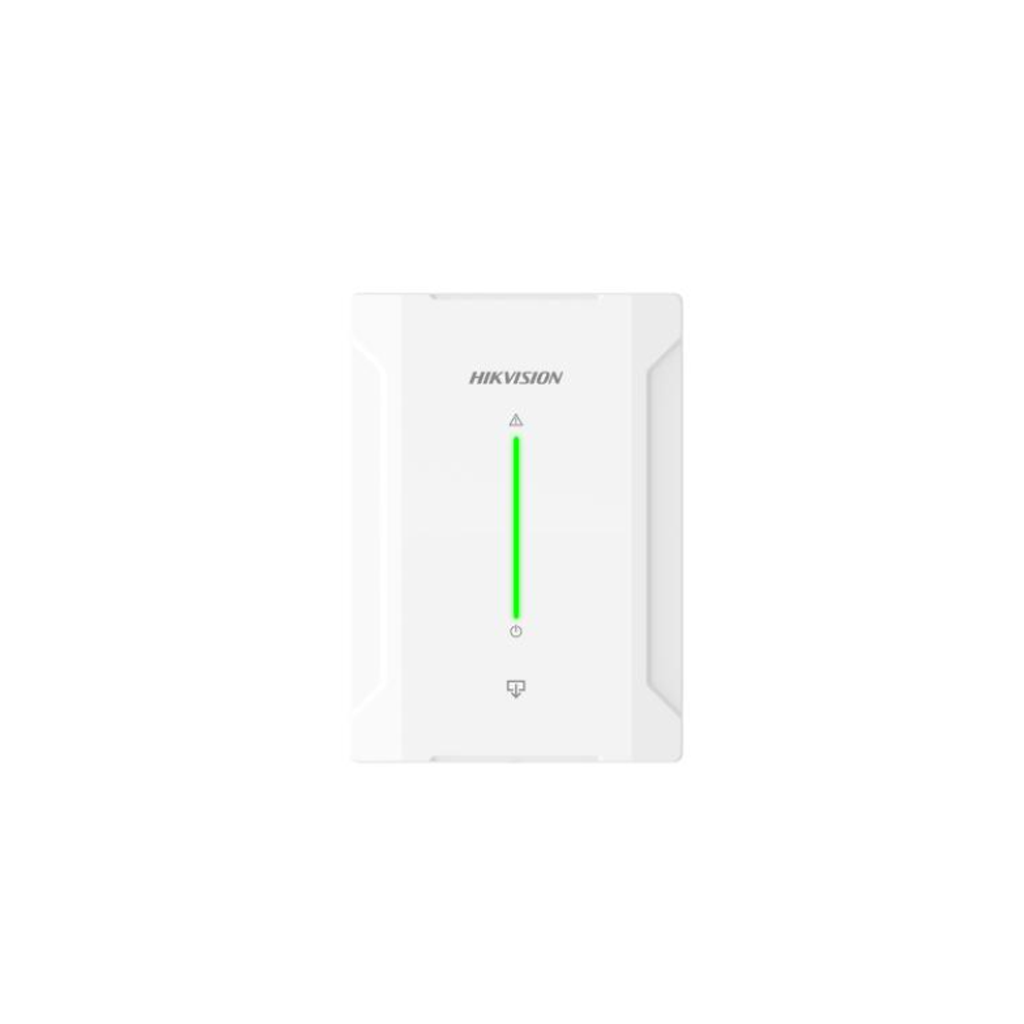

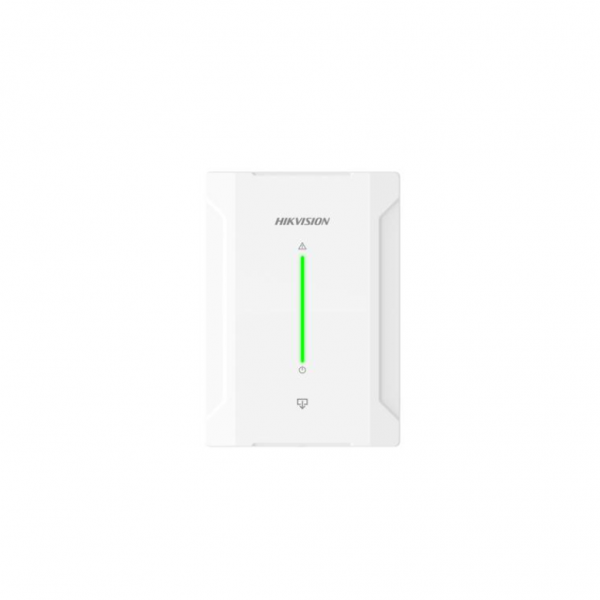

HIKVISION DS-PM1-O4L-H
Wired 4-way low current relay
Features
- 4 on-board low current relays, supporting 6-30V and up to 5A current
- 1 power output, maximum 500mA
- Powered by Speed-X technology，supporting expander cascading with 1 uplink Speed-X port and 1 downlink Speed-X port
Specification
| Hardware features | |
| Serial port | 1 TTL serial port |
| Tamper-Proof | Support (front and rear) |
| Bus | 2×Speed-X bus, 1 uplink for control panel connection and 1 downlink for next expander |
| Electrical characteristics | |
| Power supply | 11 to 24 VDC |
| Typical voltage | 12 VDC |
| Power consumption | Maximum current 153 mA@12 VDC; Quiescent current 70mA@12 VDC |
| Output Current | Maximum 500 mA |
| Output Voltage | 9 to 12 VDC |
| Display | |
| LED Indicator | 1 for power，1 for fault |
| General | |
| Dimension(WxHxD) | 110 mm × 155 mm × 32.5 mm |
| Shell material | Plastic |
| Weight | 285g |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
