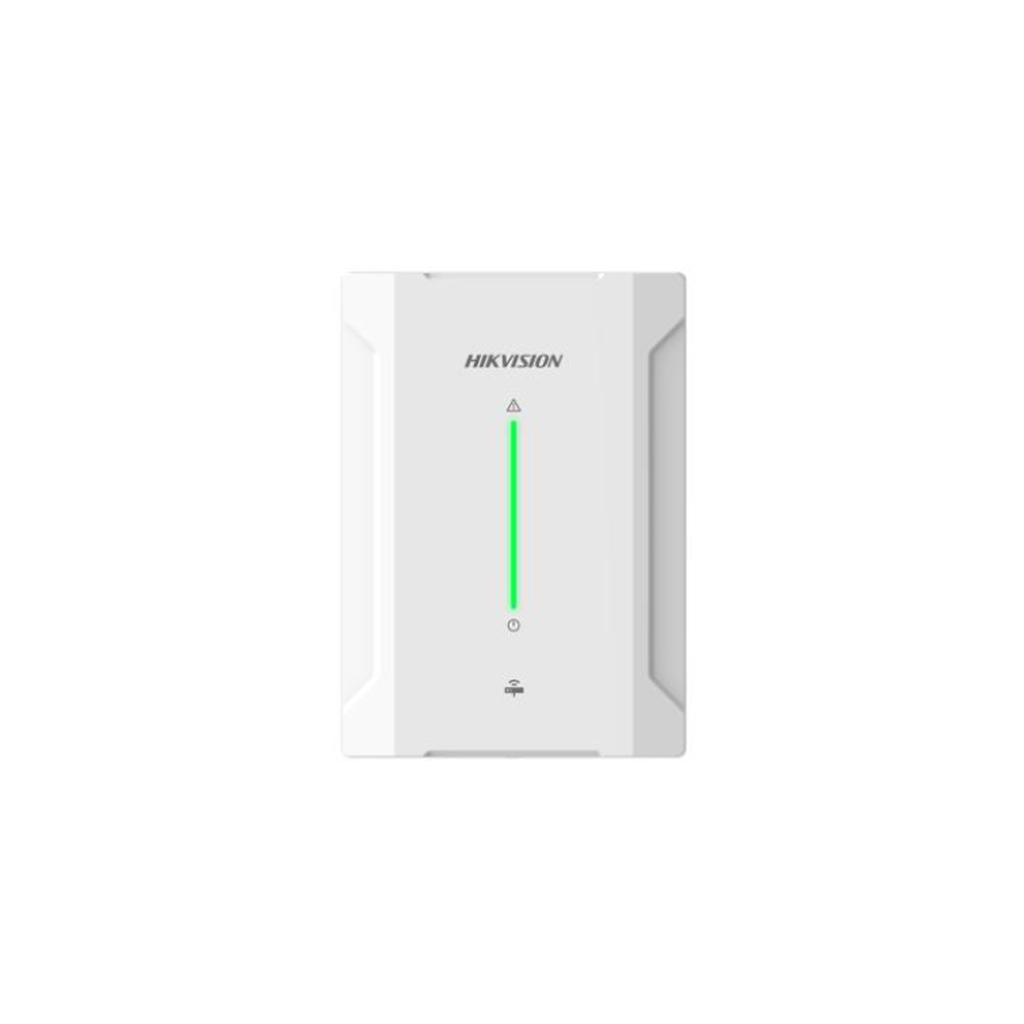

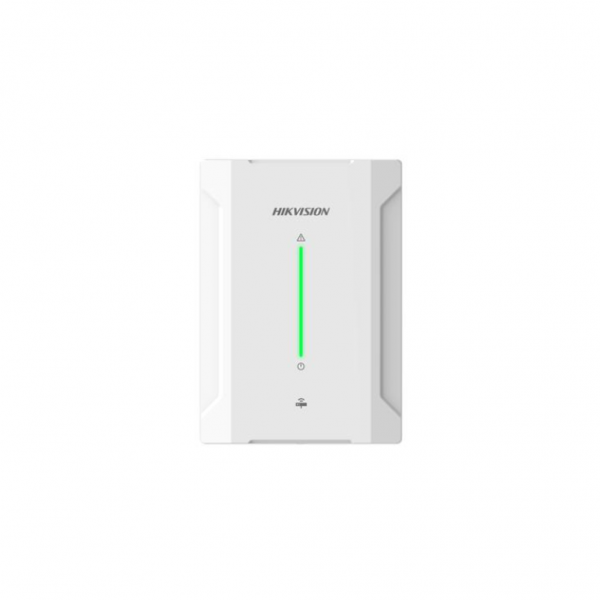

HIKVISION DS-PM1-RT-HWE
Tri-X Wireless Receiver
Features
- 868MHz wireless receiver
- Wireless transmission distance up to 1700m
- Supports 32 wireless detectors, 8 wireless indoor sounders and 4 wireless outdoor sounders
Specification
| Hardware features | |
| Bus | 1 Speed-X bus |
| Electrical characteristics | |
| Power supply | 9 to 28 VDC, 1A |
| Power consumption | Maximum current 100 mA@12 VDC; Quiescent current 40 mA@12 VDC |
| Wireless transmission | |
| RF frequency | 868 MHz |
| Wireless security | Frequency hoping 128 AES encryption |
| Display | |
| LED Indicator | 1. Green: power/find me 2. Orange: alarm/fault |
| General | |
| Dimension(WxHxD) | 110 mm × 155 mm × 32 mm |
| Shell material | Plastic |
| Weight | 225 g |
| Operation temperature | -10°C to 40°C |
| Operation humidity | 10% to 90% |
| Device management | |
| Alarm input | Up to 32 wireless detectors(portable emergency button is not included) |
| Wireless sounder | Up to 8 wireless indoor sounder, 4 wireless outdoor sounder |
