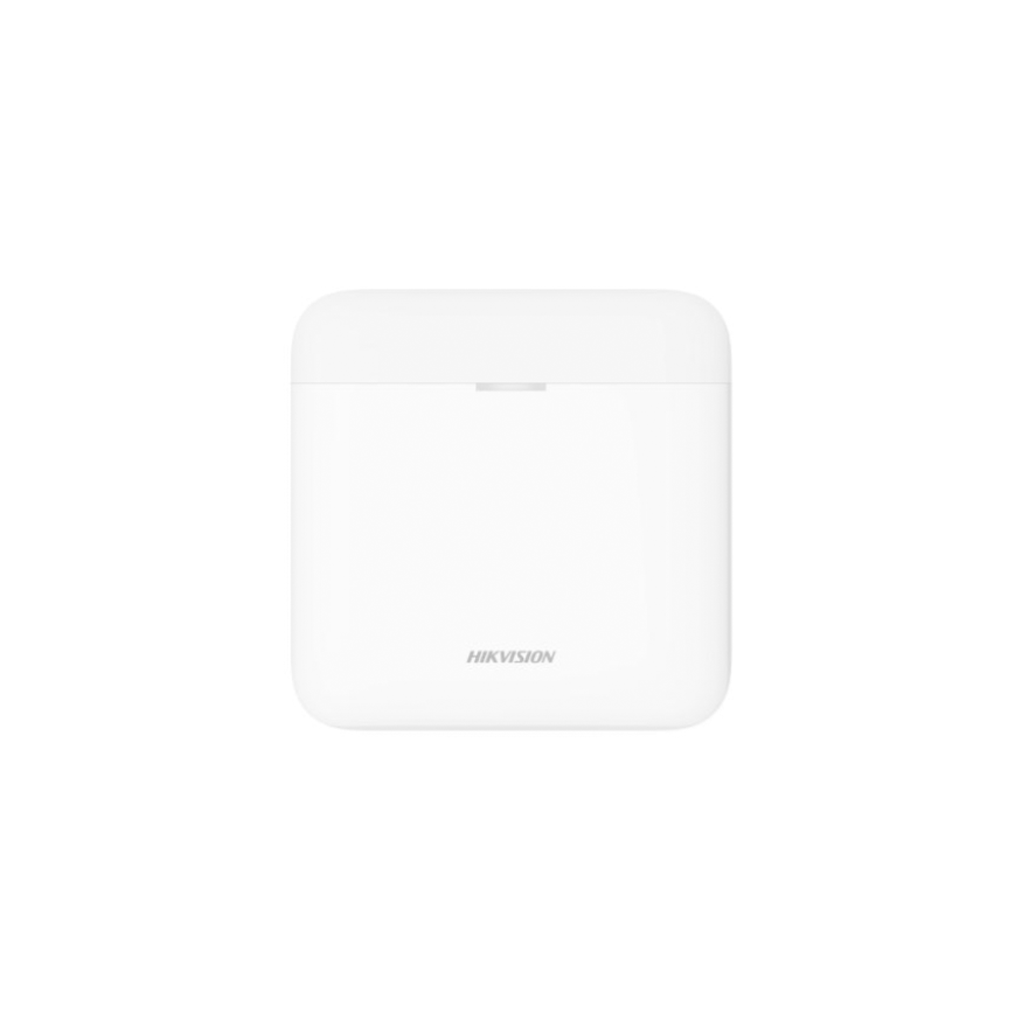

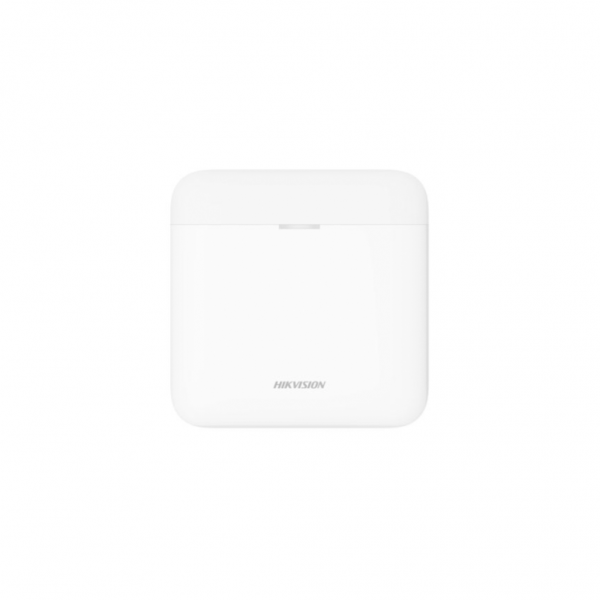

HIKVISION DS-PR1-WB
Wireless Repeater
Features
- 433MHz two-way wireless communication
- Two-way communication, stable and secure
- LED display, show the differernt feedbacks with easy understanding
- Up to 35 hrs battery backup after mains lost, no worry about communication
- Finding and connecting up to 8 PIRCAM or smoke detectors automatically, smart auto-pairing
- Easy installation with new designed structure
Specification
| Software features | |
| Auto paring | Supported |
| Hardware features | |
| Serial port | 2, for debug |
| Tamper-Proof | 1, front and back |
| Power switch | 1 |
| Electrical characteristics | |
| Battery type | Built in Battery Li |
| Power supply | 100 VAC to 240 VAC |
| Operation humidity | 10％ to 90％ |
| Operation temperature | -10°C to +55°C (The battery can not be charged at temperature lower than 10°C, please make sure the adapter is connected) |
| Battery life span | Up to 35 hours at normal temperature(The battery working time can be significantly reduced at low temperatures) |
| Wireless transmission | |
| RF frequency | 433 MHz |
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 800 m (open area) |
| Wireless security | AES-128 |
| Display | |
| LEDs status | 3, Register/Signal (Green/Red), Power (Green), Fault (Amber) |
| General | |
| Installation method | Wall mounting |
| Dimension(WxHxD) | 150 mm × 150 mm × 25 mm |
| Shell material | Plastic |
| Color | White |
| Weight | 372 g |
| Device management | |
| PIRCAM paring | Supported |
