描述

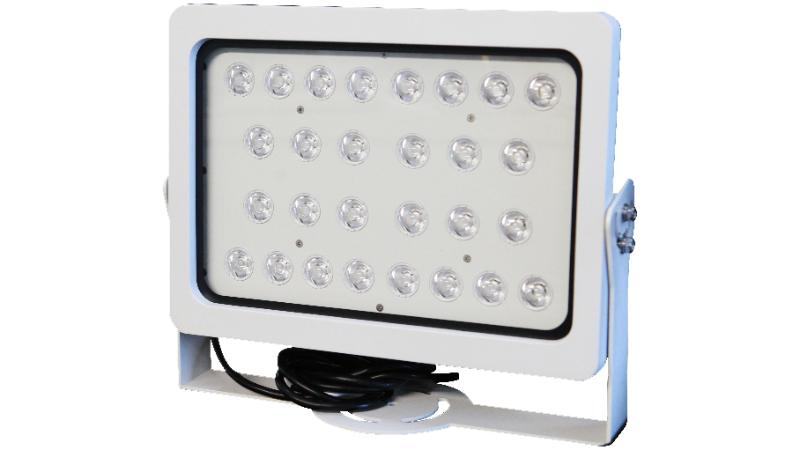

DS-TL2002A
LED Strobe Supplement Light
DS-TL2002A 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Supplement Light
| Light Type | White light |
|---|---|
| Angle of Light | 10° |
| Coverage | 1 lane(s) |
| LED Lamp Beads | 28 |
| Center Illuminance | 250 lx |
| Effective Distance | 16 to 50 m |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 4 to 6 V (High level trigger) |
| Trigger Duty Ratio | 1% to 39% (Enter the protection state at Duty Radio ≥ 40%) |
| Response Time | ≤ 20 us |
| Trigger Frequency | 15 to 250 Hz |
| Service Life | ≥ 50000 Hours |
| Color Temperature | 2800 K to 3200 K |
General
| Power | AC 220 V ±20%, 0.25 A, max. 54 W, 3-core terminal block |
|---|---|
| Material | Aluminium alloy |
| Dimensions | 322 mm × 271 mm × 118 mm (12.7" × 10.7" × 4.6") (L × W × H) |
| Package Dimensions | 430 mm × 380 mm × 215 mm (16.9" × 15.0" × 18.1") (L × W × H) |
| Weight | Approx. 5.1 kg (11.24 lb.) |
| With Package Weight | Approx. 6.28 kg (13.85 lb.) |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing) |
| Storage Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Approval
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Safety | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014, CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
