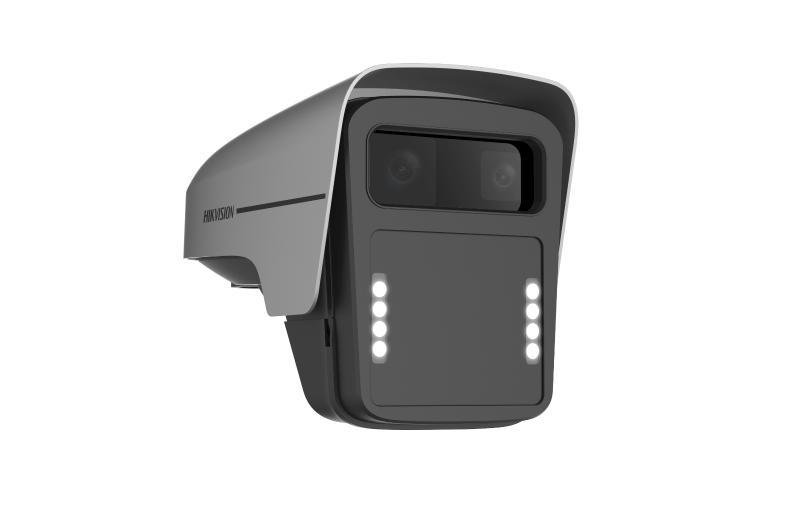

iDS-TCV991-HIR
Dual 9 MP ANPR All-Rounder Traffic Camera
iDS-TCV991-HIR 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1" GMOS *2 |
|---|---|
| Max. Resolution | 4096 × 2160 |
| Min. Illumination | Color: 0.001 Lux @ (F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Time | 54us-40000us |
| Day & Night | IR cut filter |
Lens
| Lens Type | Channel 1: Fixed focal lens, 25 mm, Channel 2: Fixed focal lens, 50 mm |
|---|---|
| Focal Length & FOV | Channel 1: horizontal FOV 32°, vertical FOV 16.8°, diagonal FOV 36.3°, Channel 2: horizontal FOV 16.2°, vertical FOV 8.6°, diagonal FOV 18.2° |
| Focus | Auto |
| Iris Type | Fixed iris |
| Aperture | Channel 1: F1.6, Channel 2: F1.4 |
Illuminator
| Built-in Supplement Light Type | IR light |
|---|---|
| Light Bead | 8 |
| IR Wavelength | 850 nm |
| Built-in Supplement Light Range for LPR | Up to 50 m |
| External Supplement Light | Strobe and flash light |
Radar
| Working Frequency | 24.05~24.25 GHz |
|---|---|
| Modulation Waveform | FMCW |
| Detection Distance | 100m |
| Speed Measuring Range | 10 to 320 km/h |
| Max. Detectable Targets | Up to 64 |
| Speed Measuring Accuracy | ± 2 km/h |
| Coverage Lanes | Up to 6 lane(s) |
| Trigger Mode | Approaching direction,Leaving direction |
Video
| Main Stream | 50 Hz: 25 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50Hz: 25 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 24 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720, 704 × 576) |
| Third Stream | 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 24 fps (1280 × 720, 704 × 576, 352 × 288) |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
PTZ
| Pan | Channel 2: ± 6° |
|---|---|
| Tilt | Channel 2: ± 5° |
Network
| Protocols | TCP/IP,HTTP,HTTPS,DDNS,RTSP,NTP,FTP,SFTP,DHCP,DNS,RTP,IPv4/IPv6,UDP,SSL/TLS,ICMP,RTCP,SNMP,IGMP,802.1X,QoS,ISUP,ARP |
|---|---|
| Simultaneous Live View | Up to 10 channels |
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
| User/Host | Up to 16 users,3 user levels: administrator, operator, and user |
| Security | Password protection,Complicated password,HTTPS encryption,Watermark,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,IP address filter,WSSE and digest authentication for ONVIF,Host authentication (MAC address) |
| Network Storage | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
| Client | Hik-Central Master,Hik-Central Pro,Hik-Central Enterprise,HikCentral Master Lite |
| Web Browser | IE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | Saturation,Brightness,Contrast,Sharpness,AGC |
|---|---|
| Day/Night Switch | Auto,Schedule,Manual |
| SNR | ≥ 60 dB |
| Image Enhancement | BLC,3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| Alarm | 2 input interfaces(T1,SYNC),7 output interfaces |
| RS-485 | 3 RS-485 |
Event
| Basic Event | HDD Error, network disconnected, IP address conflicted |
|---|
Road Traffic and Vehicle Detection
| Coverage | Up to 6 lane(s) |
|---|---|
| Trigger Mode | Video trigger |
| Smart Function | No-plate vehicle capture, Moving direction detection, Motorcycle helmet detection, Manned motorcycle detection, License plate recognition, Vehicle type classification, Vehicle color recognition, Congestion, Stopped Vehicle, Construction, Fallen Object |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Vehicle Manufacturer | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| Motorcycle LPR | Supported |
| Driving on Lane Line Detection | Supported |
| Lane Change Detection | Supported |
| Wrong-Way Driving Detection | Supported |
| Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
| Capture Speed Range | 10 to 300 km/h |
| Speeding | Supported |
| Low-Speed | Supported |
General
| Operating System | Linux |
|---|---|
| Power | DC 36 V ± 20%, 1.67 A, max. 60 W, 2-core terminal block |
| Material | Aluminum alloy |
| Dimension | 378.5 mm × 202.9 mm × 257.7 mm (14.90" × 7.99" × 10.15") (L × W × H) |
| Package Dimension | 530 mm × 480 mm × 365 mm (20.87" × 18.9" × 14.37") (L × W × H) |
| Weight | Approx. 6.64 kg (14.64 lb.) |
| With Package Weight | Approx. 11.3 kg (24.91 lb.) |
| Operating Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| General Function | Heartbeat, Password protection, NTP time adjustment, One-key reset |
| Language | 8 languages: English, Russian, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
