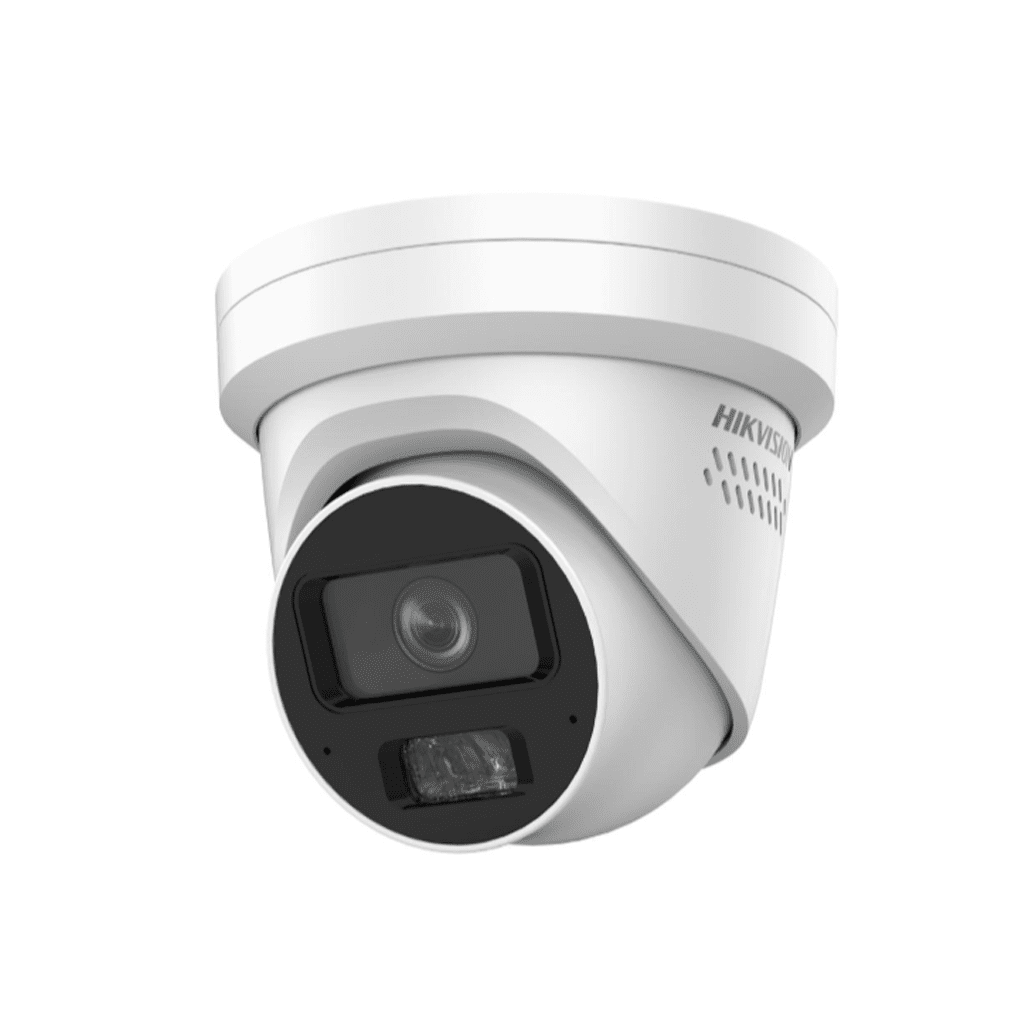

HIKVISION iDS-2CD5347G2/V-XS

4MP DeepinViewX Fixed Lens Turret Camera for Perimeter Protection

High quality imaging with 4 MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67)
Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0014 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter, Blue glass module (less ghost phenomenon)
Image Parameters Switch	Yes
Image Settings	Day,Night,Auto,Schedule,Alarm Trigger
Day/Night Switch	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC,HLC,3D DNR,Defog,Distortion Correction
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image Stabilization	EIS
General
Power	12 VDC ± 20%, 0.93 A, max. 11.2 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.25 A to 0.19 A, max. 12.7 W
Material	Aluminum alloy body
Dimension	Ø138.63 mm × 123.42 mm (Ø5.46″ × 4.86″)
Package Dimension	170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 6.0″)
Weight	Approx. 820 g (1.81 lb.)
With Package Weight	Approx. 1095 g (2.42 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
Integrated Connector Panel	No
