描述
海康威視 iDS-2CD5A46G2-XZ(H)S(Y) 是 4MP DarkFighter 電動變焦槍型鏡頭，具 140 dB 寬動態，支援 H.265+ 及 IP67 防水防塵。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

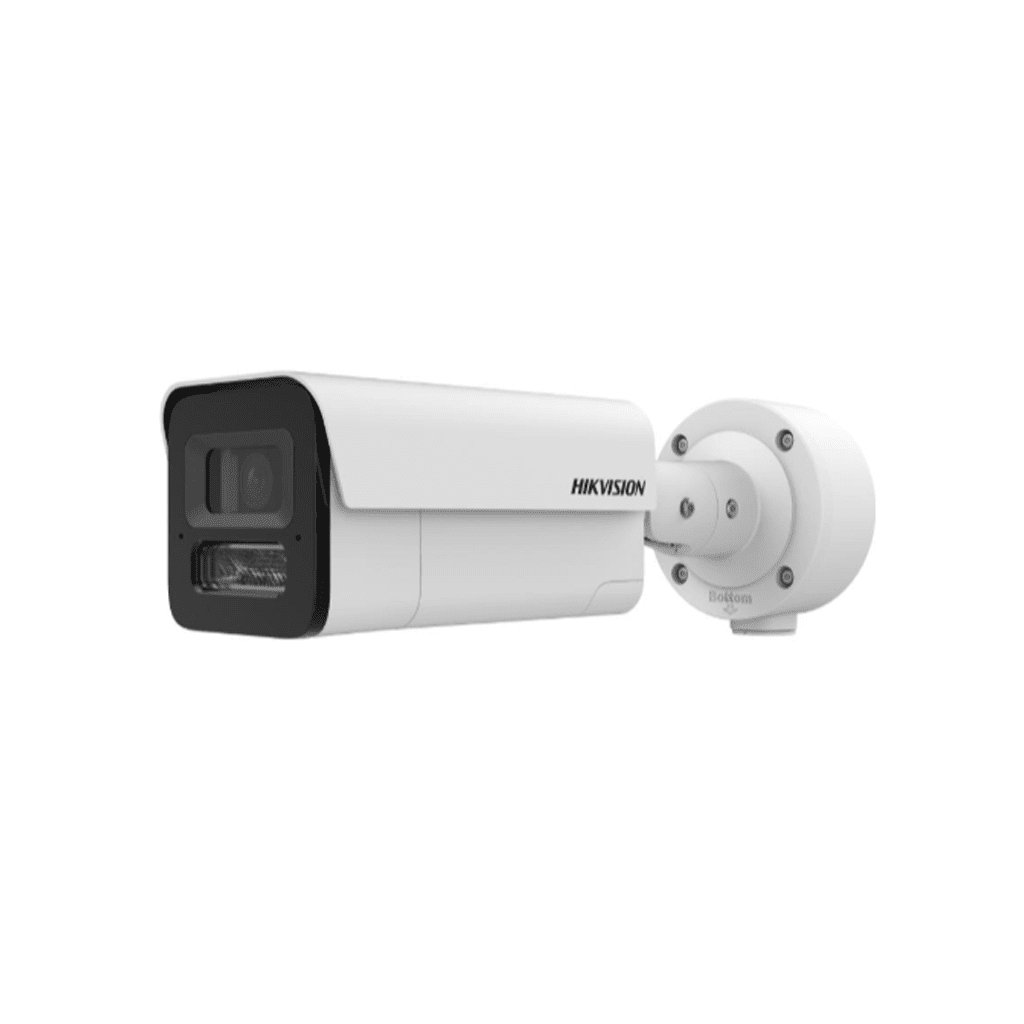

HIKVISION iDS-2CD5A46G2-XZ(H)S(Y)
4MP Darkfighter Moto Varifocal Bullet Camera
Features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via Darkfighter2.0 technology
- Clear imaging against strong back light due to 140 dB Auto-WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 4 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- High frame rate up to 4MP@60fps
- TPM 2.0 for cyber security
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Image Stabilization | EIS |
| General | |
| Power | 12 VDC ± 20%, 1.14A, max. 13.6 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W, 24 VAC ± 20%, 0.94 A, max. 13.6 W |
| Material | Aluminum alloy body |
| Dimension | 323.4 mm × 114.5 mm × 114.5 mm (12.73″ × 4.51″ × 4.51″) |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2″ × 6.14″ × 6.10″) |
| Weight | Approx. 1450 g (3.2 lb.) |
| With Package Weight | Approx. 2167 g (4.78 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log |
| Heater | -H: Yes |
| Integrated Connector Panel | No |
