描述

海康威視 iDS-2CD7046G2-AP 是 4MP DeepinView 變焦槍機（Box Camera），具 DarkFighter 2.0 低照度及 150 dB 寬動態，最高 4MP@60fps，內置麥克風。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：海康威視閉路電視安裝、閉路電視安裝。

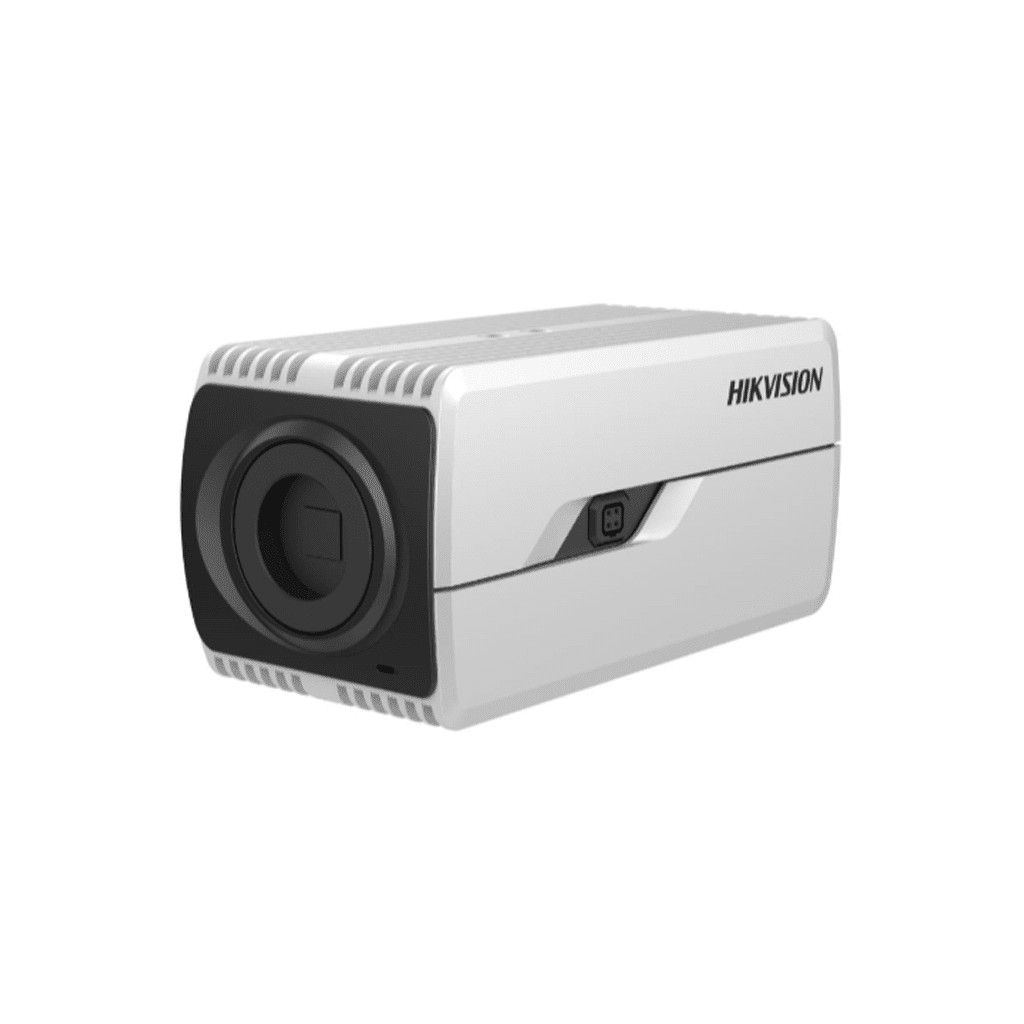

HIKVISION iDS-2CD7046G2-AP

4MP DeepinView Varifocal Box Camera

Features

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter 2.0 technology
Clear imaging against strong back light due to 150 dB AWDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Built-in microphone for real-time audio security
Capture vehicles and humans of different speed clearly via ShotN technology
High frame rate, up to 2MP@120fps and 4MP@60fps
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics

Specifications

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON)
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter,Blue glass module (less ghost phenomenon)
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	150 dB
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask	8 programmable polygon privacy masks
SNR	≥ 52 dB
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
General
Power	12 VDC ± 20%, 0.8 A, max. 9.6 W,three-core terminal block,reverse polarity protection, 24 VAC ± 20%, 0.64 A, max. 9.2 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.32 A to 0.24 A, max. 13.2 W
Material	Aluminum alloy body
Dimension	142.5 mm × 69.8 mm × 68 mm (5.61″ × 2.75″ × 2.68″)
Package Dimension	315 mm × 140 mm × 140 mm (12.4″ × 5.51″ × 5.51″)
Weight	Approx. 765 g (1.69 lb.)
Storage Conditions	Approx. 1150 g (2.54 lb.)
With Package Weight	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,one-key reset,mirror,password protection,pixel counter,anti-banding
Device Management	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Integrated Connector Panel	Yes
