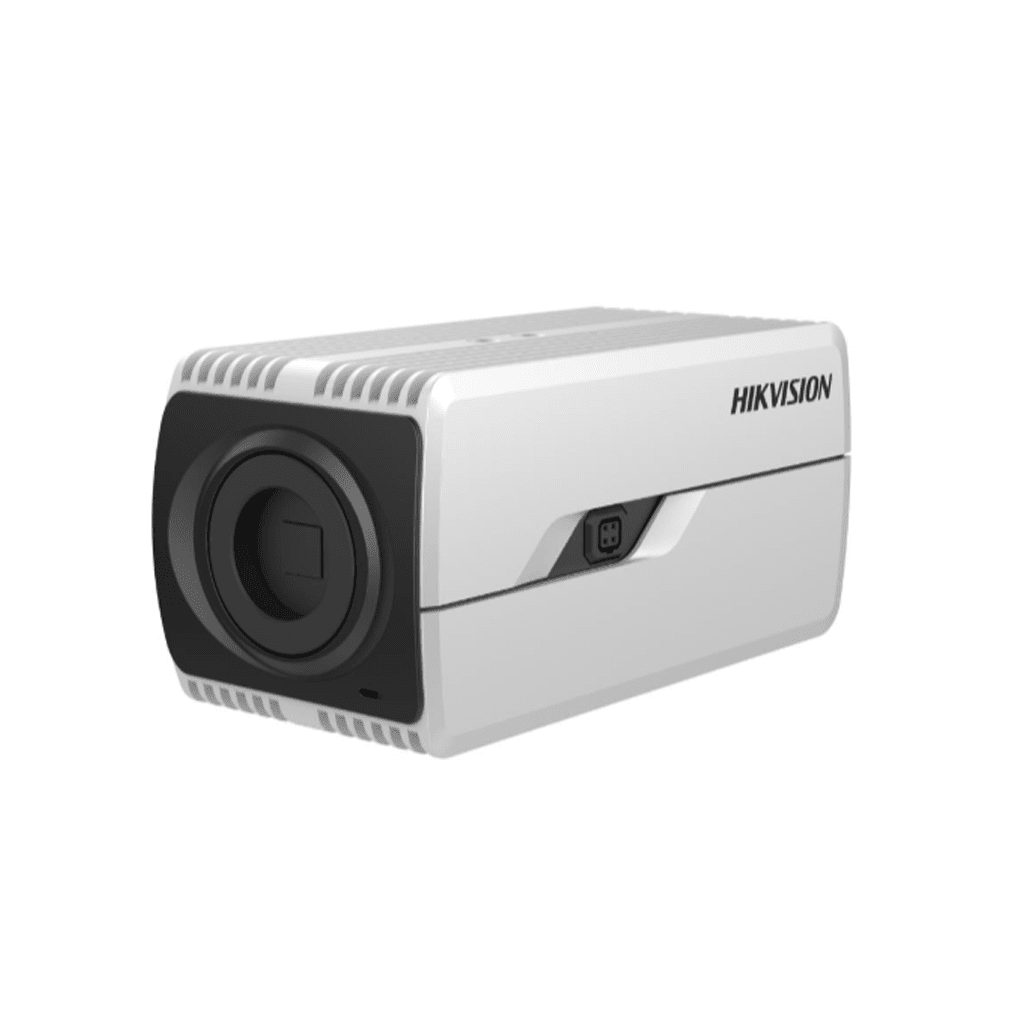

HIKVISION iDS-2CD7086G2-AP
8MP DeepinView Varifocal Box Camera
Features
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Built-in microphone for real-time audio security
- Capture vehicles and humans of different speed clearly via ShotN technology
- High frame rate, up to 8MP@60fps and 2MP@120fps
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON) |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter,Blue glass module (less ghost phenomenon) |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | 12 VDC ± 20%, 0.927 A, max. 11.118 W,three-core terminal block,reverse polarity protection, 24 VAC ± 20%, 0.771 A, max. 10.532 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.34 A to 0.26 A, max. 14.4 W |
| Material | Aluminum alloy body |
| Dimension | 142.5 mm × 69.8 mm × 68 mm (5.61″ × 2.75″ × 2.68″) |
| Package Dimension | 315 mm × 140 mm × 140 mm (12.4″ × 5.51″ × 5.51″) |
| Weight | Approx. 765 g (1.69 lb.) |
| With Package Weight | Approx. 1150 g (2.54 lb.) |
| Storage Conditions | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,one-key reset,mirror,password protection,pixel counter,anti-banding |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| Integrated Connector Panel | Yes |
