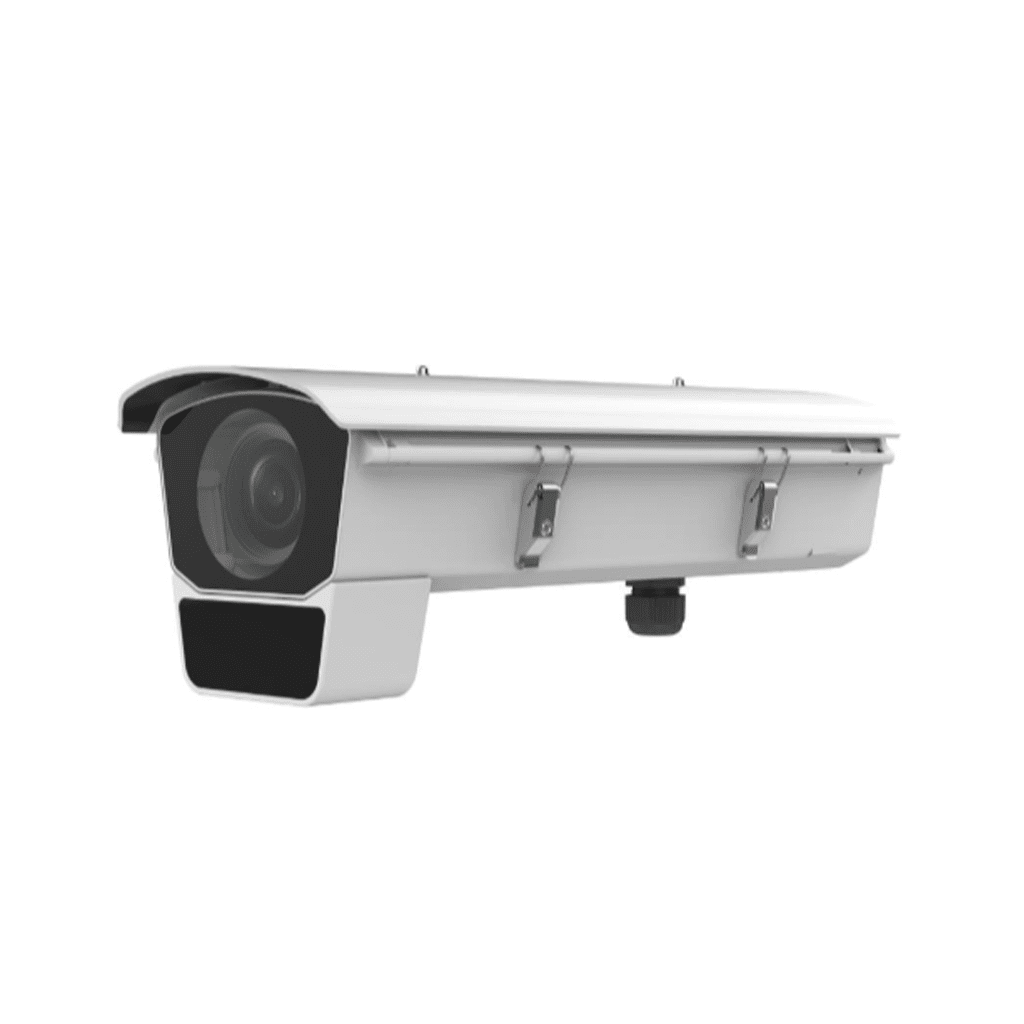

HIKVISION iDS-2CD70C6G2/E-IHSYR

12MP DeepinView Varifocal Box Camera With Housing

Features

High quality imaging with 12 MP resolution, 16:9 aspect ratio
Excellent low-light performance via DarkFighter2.0 technology
Clear imaging against strong back light due to 120 dB AWDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP66) and corrosion resistant (NEMA 4X)
Built-in G-sensor for vibration detection
Built-in power meter for historical power statistics

Specifications

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	4000 × 3000
Min. Illumination	Color: 0.0054 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON)
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter,Blue glass module (less ghost phenomenon)
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask	BLC,HLC,3D DNR,Distortion Correction,Defog
SNR	≥ 52 dB
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image Stabilization	EIS
General
Power	24 VDC ± 20%, 1.09 A, max. 26.1 W 24 VAC ± 20%, 1.74 A, max. 27 W PoE: IEEE 802.3bt, Type3, Class 5, 42.5 V to 57 V, 0.75 A to 0.56 A, max. 31.5W
Material	Aluminum alloy body, PP sun shield, PC front panel
Dimension	465.3 mm × 169.2 mm × 164.7 mm (18.3″ × 6.7″ × 6.5″)
Package Dimension	615 mm × 360 mm × 225 mm (24.2″ × 14.2″ × 8.9″)
Weight	Approx. 4485 g (9.89 lb.)
With Package Weight	Approx. 6875 g (15.2 lb.)
Storage Conditions	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,one-key reset,mirror,password protection,pixel counter
Heater	Yes
Device Management	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces. Supports adding network microphone and speaker
Integrated Connector Panel	Yes
