描述
海康威視 iDS-2CD8A46G2-XZHS(Y) 是 4MP DeepinView 雙通道槍型鏡頭，一個通道看細節、另一個通道看全景，具 140 dB 寬動態，IP67。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

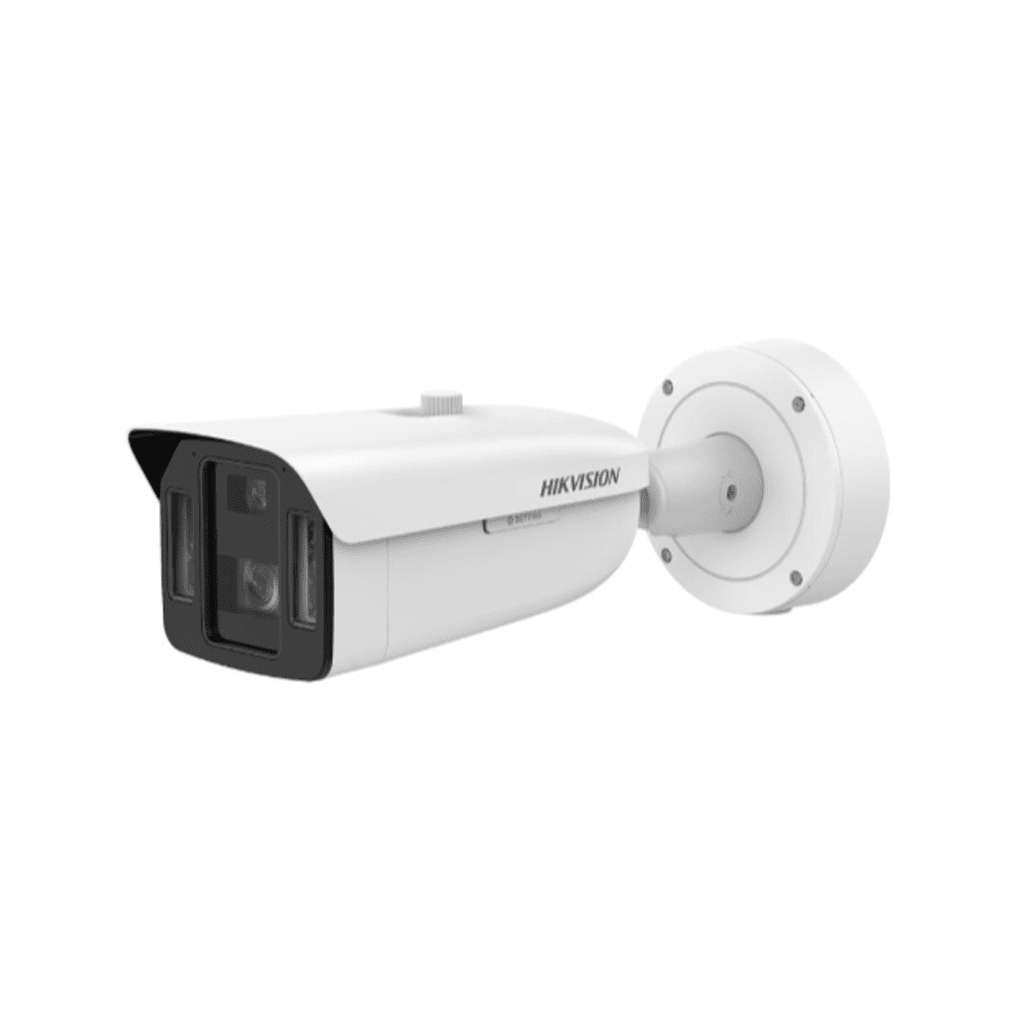

HIKVISION iDS-2CD8A46G2-XZHS(Y)
4MP DeepinView Multi-Sensor Bullet Camera
Features
- High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2
- Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
- Capture vehicles and humans of different speed clearly via ShotN technology
- License plate recognition and vehicle attribution recognition
Specifications
| Camera | |
| Image Sensor | Channel 1: 1/1.8″ Progressive Scan CMOS, Channel 2: 1/1.8 Progressive Scan CMOS” |
| Max. Resolution | Channel 1: 2688 × 1520, channel 2: 2688 × 1520 |
| Min. Illumination | Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR, Channel 2: Color: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Day/Night Switch | Channel 1: Day, Night, Auto, Schedule, Alarm Trigger, Channel 2: Day, Night, Auto, Schedule, Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | Channel 1: BLC, HLC, 3D DNR, Defog, EIS, Channel 2: BLC, HLC, 3D DNR, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | Three-core terminal block, 12 VDC ± 20%, 1.89A, max. 22.6 W, 24 VAC ± 20%, 1.48 A, max. 22.2 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.57 A to 0.43 A, max. 24 W |
| Material | Aluminum alloy body |
| Dimension | Ø140 mm × 410.1 mm (Ø5.5″ × 16.1″) |
| Package Dimension | 462 mm × 197 mm × 195 mm (18.2″ × 7.76″ × 7.68″) |
| Weight | Approx. 2.215 kg (4.85 lb.) |
| With Package Weight | Approx. 3.551 kg (7.45 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,one-key reset,mirror,password protection,flash log,anti-banding |
| Heater | Yes |
| Demist | Yes |
| Integrated Connector Panel | -Y: No |
