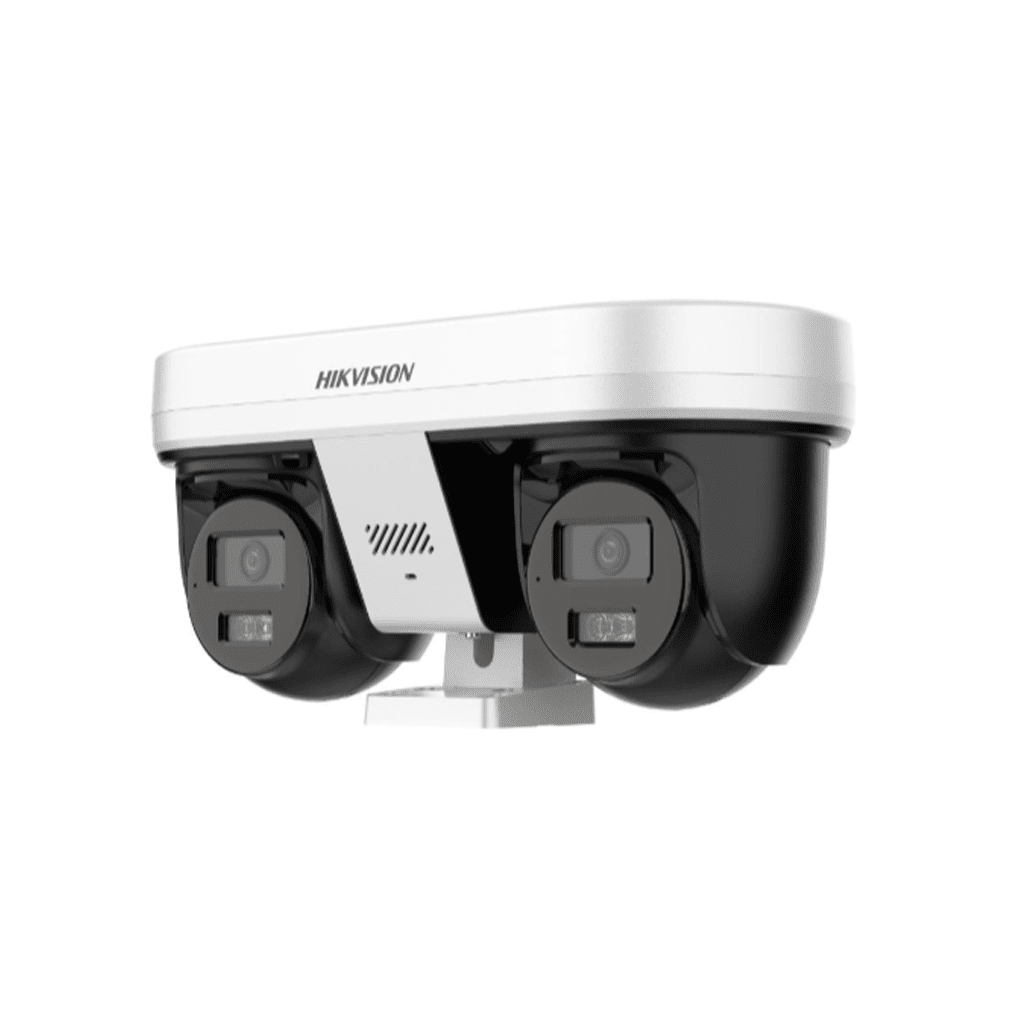

HIKVISION iDS-2CD8V447G0E/X2-XZS
4MP Deepinview Mini Dual-lens Omni Camera
Features
- Excellent low-light performance via DarkFighter technology
- Intelligent functions based on deep learning in various scenarios
- High quality imaging with 4 MP resolution in channel 1 and channel 2
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- Adopt 2-channel design with manual PT, pan -10° to 190°, tilt 0° to 90°, rotate: 0° to 350°
- Built-in power meter for historical power statistics
- Water and dust resistant (IP67)
Specifications
| Camera | |
| Image Sensor | Channel 1: 1/1.8″ Progressive Scan CMOS, Channel 2: 1/1.8 Progressive Scan CMOS” |
| Max. Resolution | Channel 1: 2688 × 1520, Channel 2: 2688 × 1520 |
| Min. Illumination | Channel 1: Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | Channel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon |
| Angle Adjustment | Channel 1: pan: -10° to 190°, tilt: 0° to 90°, rotate: 0° to 350°, Channel 2: pan: -10° to 190°, tilt: 0° to 90°, rotate: 0° to 350° |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | 12 VDC ± 20%, 1.27 A, max. 18.2 W,two-core terminal block, PoE: IEEE 802.3at, Class 4 |
| Material | Plastics |
| Dimension | 280.9 mm × 132.3 mm × 120.9 mm (11.1″ × 5.2″ × 4.8″) |
| Package Dimension | 316 mm × 156 mm × 170 mm (12.44″ × 6.14″ × 6.69″) |
| Weight | Approx. 1430 g (3.15 lb.) |
| With Package Weight | Approx. 1810 g (3.99 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding |
| Flashing Light | White Light |
