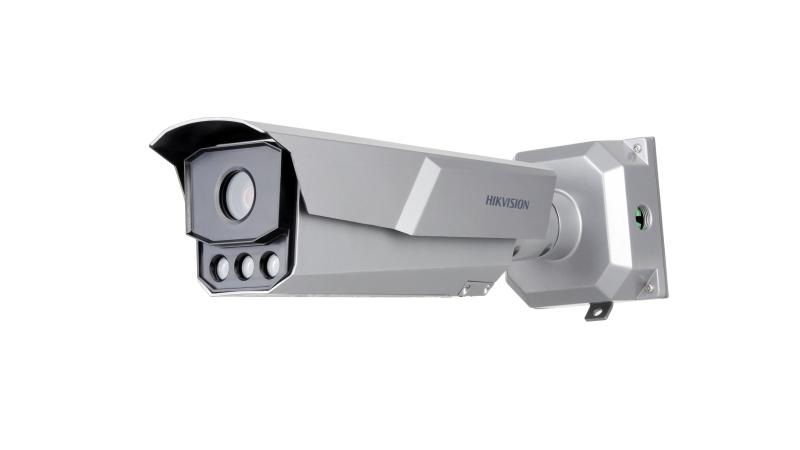

iDS-TCD403-BI
4 MP IR Traffic Flow Camera
iDS-TCD403-BI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25 s to 1/100000 s |
Lens
| Focal Length & FOV | 8-32 mm; Horizontal FOV: 39.7° to 15.9°; Vertical FOV: 22.3° to 9.1°; Diagonal FOV: 45.8° to 18.1° |
|---|---|
| Focus | Auto |
| Iris Type | Auto-iris: DC drive |
| Aperture | F1.7 |
Illuminator
| Built-in Supplement Light Type | IR light |
|---|---|
| Built-in Supplement Light Range | up to 50 m |
| Light Bead | 3 |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 30 fps (2588 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 25 fps (2588 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
|---|---|
| Sub-Stream | 50 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
| Third Stream | 50 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) |
| Video Compression | H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
Audio
| Audio Compression | G.711,G.722.1 |
|---|---|
| Audio Bit Rate | 8 Kbps (G.711),16 Kbps (G.722.1) |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,DDNS,RTSP,NTP,SNMP,IGMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,DHCP,RTP,RTCP,QoS,SSL/TLS |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T) |
| User/Host | Up to 32 users,3 user levels: administrator, operator, and user |
| Security | Password protection,HTTPS encryption,Complicated password,802.1X authentication (EAP-MD5),Watermark,IP address filter,WSSE and digest authentication for ONVIF,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,Host authentication (MAC address),TLS 1.2 1.3 |
| Network Storage | Micro SD/TF card (512 GB), local storage and CVR, NVR, ANPR |
| Client | Hik-Central Master,HikCentral Master Lite |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | Saturatio,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Auto/Scheduled/Triggered by alarm in |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC, 3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10/100/1000 M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| Audio | Supported |
| Alarm | 1 input, 1 output, 2 relays |
| RS-485 | 1 RS-485 |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit) |
Event
| Basic Event | HDD error,Network disconnected,IP address conflict |
|---|
Road Traffic and Vehicle Detection
| Coverage | Up to 6 lane(s) |
|---|---|
| Smart Function | Traffic flow detection：vehicle type, lane flow, lane speed, space headway, time headway, lane time occupancy rate, lane space occupancy rate, queuing length, and traffic status |
General
| Power | DC 12 V to 24 V, 1.25 A, max. 15 W, Two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W |
|---|---|
| Material | Aluminum alloy |
| Dimension | 428.5 mm × 120 mm × 132.8 mm (16.9" × 4.7" × 5.2") (L × W × H) |
| Package Dimension | 595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H) |
| Weight | Approx. 3.0 kg (6.6 lb.) |
| With Package Weight | Approx. 4.4 kg (9.7 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| General Function | One-key reset, three streams, heartbeat, password protection, watermark |
| Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
Approval
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
