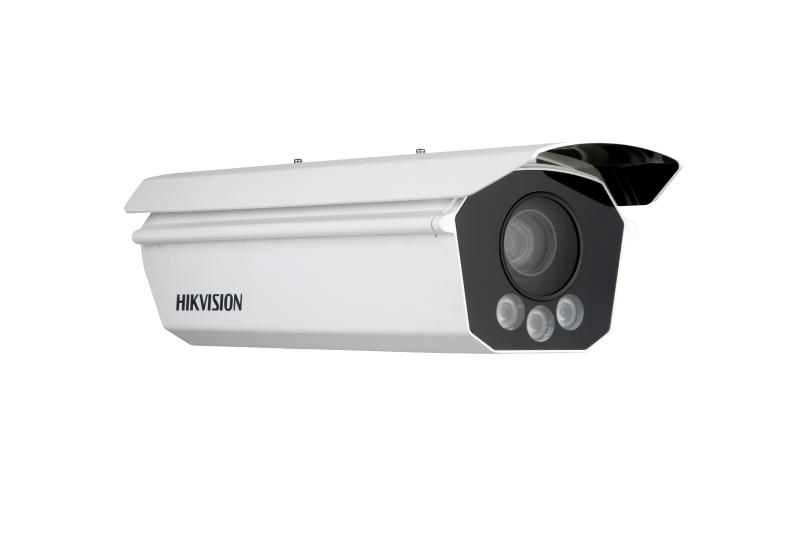

iDS-TCS900-HI
9 MP Incident Detection Capture Unit
iDS-TCS900-HI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1" GMOS |
|---|---|
| Max. Resolution | 4096 × 2160 |
| Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Time | 7 us-20000 us |
| Day & Night | IR cut filter |
Lens
| Lens Type | Varifocal lens, motorized lens, 11 to 40 mm |
|---|---|
| Focal Length & FOV | 11 to 40 mm, horizontal FOV 62° to 23.6°, vertical FOV 32.2° to 12.2°, diagonal FOV 70° to 26.8° |
| Focus | Auto |
| Aperture | F1.6 |
Illuminator
| Built-in Supplement Light Type | IR light |
|---|---|
| Supplement Light Number | 3 |
| Built-in Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| External Supplement Light | Strobe light |
Video
| Main Stream | 50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Third Stream | 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Network
| Protocols | TCP/IP, HTTP, HTTPS, DDNS, RTSP, NTP, FTP, SFTP, DHCP, DNS, RTP, IPv4/IPv6, UDP, SSL/TLS, ICMP, RTCP, SNMP, IGMP, 802.1X, QoS, ISUP, ARP |
|---|---|
| Simultaneous Live View | Up to 10 channels |
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
| User/Host | Up to 16 users,3 user levels: administrator, operator, and user |
| Security | Password protection Complicated password HTTPS encryption Watermark Basic and digest authentication for HTTP/HTTPS RTP/RTSP over HTTPS Control timeout settings Security audit log IP address filter WSSE and digest authentication for ONVIF Host authentication (MAC address) |
| Network Storage | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
| Client | Hik-Central Master,HikCentral Master Lite,Hik-Central Pro |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
|---|---|
| Day/Night Switch | Auto, Schedule, Manual |
| Image Enhancement | BLC, 3D DNR |
Supplement Detection (Satellite Positioning)
| Satellite Positioning | GPS (optional) |
|---|
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface 1 LC fiber optical interface, SFP module, single mode, 20 km transmission distance, 1310 nm (TX) and 1550 nm (RX), 155 Mbps transmission rate |
|---|---|
| RS-232 | 1 RS-232 interface |
| RS-485 | 3 RS-485 interfaces (half duplex, HIKVISION) |
| USB | 1 USB 2.0 (5.0 V, 1.0 A) interface |
| Alarm | 7 output interfaces(5V, level signal) |
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
Event
| Basic Event | HDD Error, network disconnected, IP address conflicted |
|---|
Road Traffic and Vehicle Detection
| Coverage | Up to 4 lanes |
|---|---|
| Trigger Mode | Video trigger |
| Smart Function | Supports multiple incidents detection: Stopped Vehicle, Driving on the Lane Line, Lane Change, Continuous Lane Change, Wrong-Way Driving, Speeding, Low-Speed, Rapid Deceleration, Congestion, Construction, Roadblock, Pedestrian, Fallen Object, Traffic Accident, Emergency Lane Occupation, Fire, Smoke, Animal Intrusion. Supports multiple traffic parameters collection: Traffic Flow, Average Speed, Traffic State, Lane Queue Length, Time Interval of Vehicle Head, Headway Distance, Lane Space Occupancy, Lane Time Occupancy. |
General
| Power | DC 24 V ±20%, 2 A, max. 48 W, 2-core terminal block |
|---|---|
| Material | Aluminum alloy |
| Dimension | 501.0 mm × 175.6 mm × 144.6 mm (19.72" × 6.92" × 5.69") (L × W × H) |
| Package Dimension | 667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H) |
| Weight | Approx. 5.13 kg (11.31 lb.) |
| With Package Weight | Approx. 7.4 kg (16.31 lb.) |
| Operating Condition | -30 °C to +70 °C (-22 °F to +158 °F). Humidity 95% or less (Non-condensing) |
| Storage Condition | -30 °C to +70 °C (-22 °F to +158 °F). Humidity 95% or less (Non-condensing) |
| Operating System | Linux |
| General Function | Heartbeat, Password protection, NTP time adjustment, One-key reset, Watermark |
| Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
Approval
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|---|
| Safety | CE-LVD: EN 61010-1: 2010+A1: 2019, CB: IEC 61010-1: 2010; IEC 61010-1: 2010/AMD1: 2016 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
