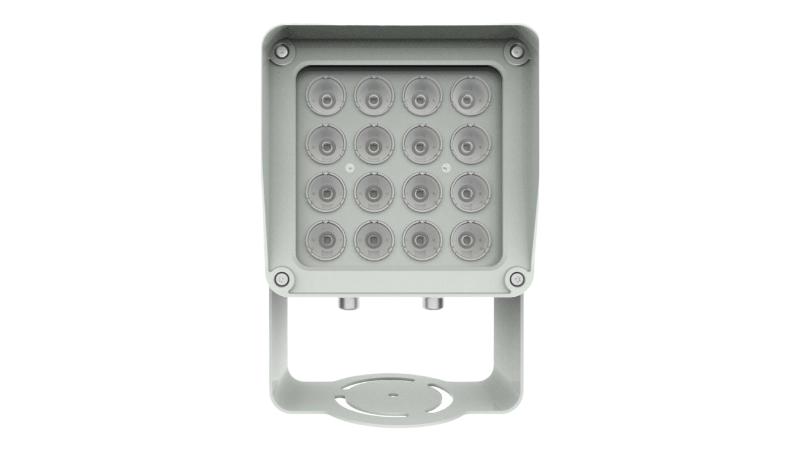

DS-TL2000AI-L1
IR LED Strobe Supplement Light
DS-TL2000AI-L1 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Supplement Light
| Light Type | IR light |
|---|---|
| Angle of Light | 10° |
| IR Wavelength | 850nm |
| Coverage | 1 lane(s) |
| LED Lamp Beads | 16 |
| Center Illuminance | 800 mW/㎡ |
| Effective Distance | 16 to 25 m |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 4 to 6 V (High level trigger) |
| Trigger Duty Ratio | 1% to 39% (Enter the protection state at Duty Radio ≥ 40%) |
| Color Temperature | 2800 K to 3200 K |
| Response Time | ≤ 20 us |
| Trigger Frequency | 15 to 250 Hz |
| Service Life | ≥ 50000 Hours |
General
| Power | AC 100 V to 240 V, 0.18 A, 39.8 W, 3-core terminal block |
|---|---|
| Material | Aluminium alloy |
| Dimensions | 128 mm × 216 mm × 159 mm (5.0" × 8.5" × 6.3") (L × W × H) |
| Package Dimensions | 290 mm × 247 mm × 230 mm (11.42" × 9.72" × 9.05") (L × W × H) |
| Weight | Approx. 2.8 kg (6.17 lb.) |
| With Package Weight | Approx. 3.87 kg (8.53 lb.) |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing) |
| Storage Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Approval
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Safety | CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031,CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
