描述

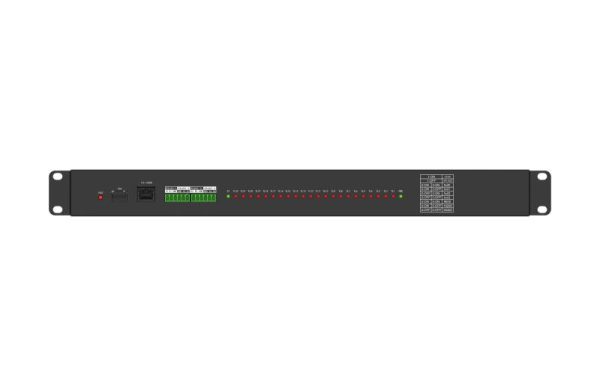

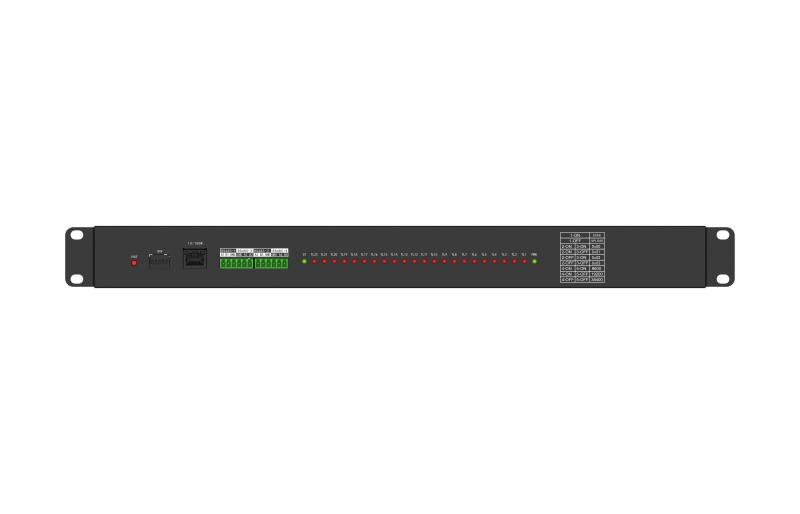

TLD-2022-N
Traffic Light Signal Detector
TLD-2022-N 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
General
| Power | AC 100 V to 240 V, 0.023A, max. 5 W, Three-hole power socket |
|---|---|
| Material | SECC |
| Dimensions | 440 mm × 44 mm × 213.5 mm (17.3" × 1.73" × 8.40") (L × W × H) |
| Package Dimensions | 485 mm × 129 mm × 390 mm (19.1" × 5.1" × 15.4") (L × W × H) |
| Weight | Approx. 2.7 kg (5.95 lb.) |
| With Package Weight | Approx. 3.5 kg (7.72 lb.) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Operating Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 5% to 95% (non-condensing) |
Detector
| Interface of AC signal | 22 ch |
|---|---|
| RS485 output interface | 4 RS-485 |
| DC output interface | 5 VDC, 2A |
| Pin switch | 5 ch |
| Light of status | 22 |
| Range of detection voltage | 100VAC – 240VAC，50Hz/60Hz |
| Working voltage | 100VAC – 240VAC，50Hz/60Hz |
| Consumption | < 5 W |
| Overvoltage Category | Ⅱ |
