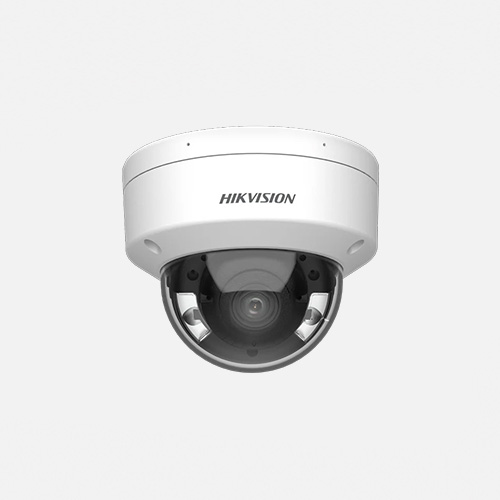

HISVISION DS-2CD2187G2-L(SU)

Description

Lens Type：Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV：2.8 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 130°，4 mm, horizontal FOV 93°, vertical FOV 49°, diagonal FOV 111°
Lens Mount：M16
Iris Type：Fixed
Aperture：F1.0
Depth Of Field：2.8 mm: 3.1 m to ∞，4 mm: 3.5 m to ∞

DORI：2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m，4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

Main Stream：
50 Hz:
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream：
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream：
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression：
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate：32 Kbps to 16 Mbps
H.264 Type：Baseline Profile,Main Profile,High Profile
H.265 Type：Main Profile
Bit Rate Control：CBR,VBR
Scalable Video Coding (SVC)：H.264 and H.265 encoding
Region Of Interest (ROI)：1 fixed region(s) for main stream and sub-stream

Audio Type：-SU: Mono sound
Audio Compression：-SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate：-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate：-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering：-SU: Yes

Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View：Up to 6 channels
API：Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host：
Up to 32 users
3 user levels: administrator, operator, and user
Security：
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage：
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client：iVMS-4200,iVMS-5200,Hik-Connect
Web Browser：
Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Parameters Switch：Yes
Image Settings：Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch：Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)：130 dB
SNR：≥ 52 dB
Image Enhancement：BLC,HLC,3D DNR
Privacy Mask：4 regions of privacy mask

Ethernet Interface：1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In Microphone：-SU: Yes
Audio：
-SU: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm：-SU: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
Reset Key：Yes

Basic Event：Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event：Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage：Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning (-SU), trigger alarm output (-SU), supplement light

Power：12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
Material：Metal
Dimension：Ø121.5 mm × 97.6 mm (Ø4.8 × 3.8\”)”
Package Dimension：150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight：Approx. 540 g (1.2 lb.)
With Package Weight：Approx. 735 g (1.6 lb.)
Language：33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function：Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
Startup And Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

EMC：
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety：
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
Environment：
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection：IP67: IEC 60529-2013,IK10: IEC 62262:2002
