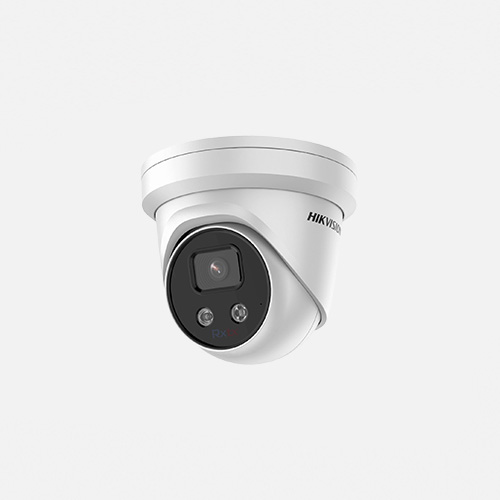

HISVISION DS-2CD2366G2-I(U)

描述

Camera

• Image Sensor：1/2.4″ Progressive Scan CMOS
• Max. Resolution：3200 × 1800
• Min. Illumination：Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time：1/3 s to 1/100,000 s
• Day & Night：IR cut filter
• Angle Adjustment：Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type：Fixed lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV：
  2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
  4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;
  6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
• Lens Mount：M12
• Iris Type：Fixed
• Aperture：F1.6

DORI

• DORI：
  2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
  4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;
  6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type：IR
• Supplement Light Range：Up to 30 m
• Smart Supplement Light：Yes
• IR Wavelength：850 nm

Video

• Main Stream：
  50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream：
  50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
  60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
• Third Stream：
  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
  *Third stream is supported under certain settings.
• Video Compression：
  Main stream: H.265+/H.265/H.264+/H.264,
  Sub-stream: H.265/H.264/MJPEG,
  Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
• Video Bit Rate：32 Kbps to 16 Mbps
• H.264 Type：Baseline Profile,Main Profile,High Profile
• H.265 Type：Main Profile
• Bit Rate Control：CBR,VBR
• Scalable Video Coding (SVC)：H.264 and H.265 encoding
• Region Of Interest (ROI)：1 fixed region(s) for main stream and sub-stream

Audio

• Audio Type：-U: Mono sound
• Audio Compression：-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate：-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate：-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering：-U: Yes

Network

• Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View：Up to 6 channels
• API：Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
• User/Host：
  Up to 32 users
  3 user levels: administrator, operator, and user
• Security：Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage：
  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client：iVMS-4200, Hik-Connect, Hik-Central
• Web Browser：
  Plug-in required live view: IE 10, IE 11,
  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch：Yes
• Image Settings：Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch：Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR)：120 dB
• SNR：≥ 52 dB
• Image Enhancement：BLC,HLC,3D DNR
• Privacy Mask：4 programmable polygon privacy masks

Interface

• Ethernet Interface：1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-In Microphone：-U: Yes
• Reset Key：Yes

Event

• Basic Event：Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart Event：Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
• Linkage：Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

Deep Learning Function

• Face Capture：Yes

General

• Power：
  12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
  PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material：Metal except for trim ring
• Dimension：Ø138.3 mm × 111.4 mm (Ø5.4″ × 4.4″)
• Package Dimension：170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″)
• Weight：Approx. 740 g (1.6 lb.)
• With Package Weight：Approx. 1070 g (2.4 lb.)
• Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language：33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function：Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Approval

• EMC：
  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
  RCM: AS/NZS CISPR 32: 2015,
  KC: KN32: 2015, KN35: 2015
• Safety：
  UL: UL 62368-1,
  CB: IEC 62368-1: 2014+A11,
  CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment：
  CE-RoHS: 2011/65/EU,
  WEEE: 2012/19/EU,
  Reach: Regulation (EC) No 1907/2006
• Protection：IP67: IEC 60529-2013
