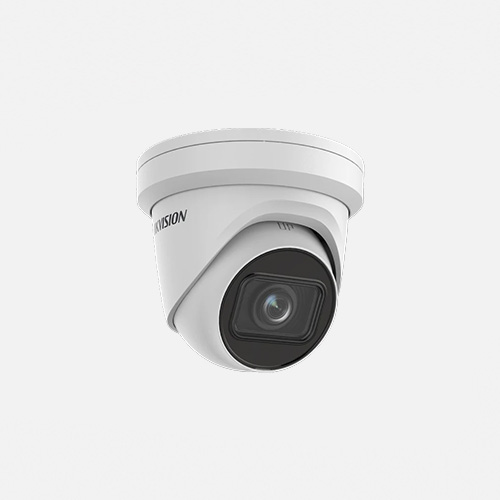

HISVISION DS-2CD2H23G2-IZS

描述

Lens Type：Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV：2.8 to 12 mm, horizontal FOV 106.6° to 31.7°, vertical FOV 54.7° to 17.7°, diagonal FOV 130.3° to 36.4°
Lens Mount：Ø14
Iris Type：Fixed
Aperture：F1.6

DORI：2.8 to 12 mm: D: 44.1 m to 137.9 m, O: 17.5 m to 54.7 m, R: 8.8 m to 27.5 m, I: 4.4 m to 13.8 m

Main Stream：
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream：
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream：
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression：
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate：32 Kbps to 8 Mbps
H.264 Type：Baseline Profile/Main Profile/High Profile
H.265 Type：Main Profile
Bit Rate Control：CBR/VBR
Scalable Video Coding (SVC)：Yes
Region Of Interest (ROI)：1 fixed region for main stream and sub-stream

Audio Compression：G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate：64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16-64 Kbps (AAC-LC)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)
Audio Sampling Rate：8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering：Yes

Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, QoS, 802.1X, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View：Up to 6 channels
API：Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host：Up to 32 users. 3 user levels: administrator, operator and user
Security：Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage：NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client：iVMS-4200, Hik-Connect, Hik-Central
Web Browser：
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch：Yes
Image Settings：Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch：Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)：120 dB
Image Enhancement：BLC, HLC, 3D DNR

Ethernet Interface：1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage：Built-in microSD, up to 512 GB
Audio：
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm：1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key：Yes

Basic Event：Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event：
Line crossing detection, intrusion detection
Supports human and vehicle targets classification
Face detection
Linkage：Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Power：
12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Dimension：Ø138.3 × 126 mm (Ø5.4″ × 5.0″)
Package Dimension：170 × 170 × 150 mm (6.7″ × 6.7″ × 5.9″)
Weight：Approx. 830 g (1.8 lb.)
With Package Weight：Approx. 1115 g (2.5 lb.)
Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language：33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function：Anti-flicker, heartbeat, password reset via email, pixel counter

EMC：FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety：UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment：CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection：IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
