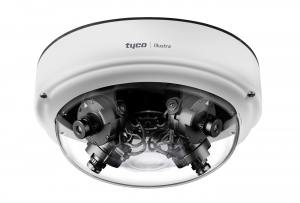

Illustra Flex Multi-sensor

Monitoring multiple directions simultaneously from a single camera

The Illustra Flex multi-sensor camera is ideal for applications that require a flexible, cost-effective surveillance solution that provides wide area coverage along with detailed images. With one IP address and one network cable, the four (4x4MP) multi-directional camera heads provide a flexible, cost-effective solution for multi-directional surveillance. Camera heads can be positioned and angled independently to provide 360 degree coverage in four separate non-stitched streams.

描述

illustra Flex Multi-sensor

Multi-directional 4x 4MP camera with 360 degree coverage

Camera Features

  • Wide area coverage from a single camera
  • 4x4MP multidirectional camera heads for 360 coverage
  • Each camera head supports up to three streams
  • H.264 addresses network and storage cost concerns
  • Flexibility to choose between overview and detailed images for each stream
  • Independently set up the positioning, angle and rotation of each camera head
  • Field swappable lens modules.
  • TWDR (Multi-shutter)
  • IP66 rated
  • Vandal Resistant IK10
  • PoE+ / 12VDC
  • NDAA Compliant



Specification

Camera FeaturesFlex Multi-Sensor
AudioBi-directional audio 1/1
Alarm Input/Output1/1
Backlight Compensation
B/W
Color
Day/NightTrue Day/Night
Defog
Digital Noise Reduction
DimensionsØ7.6 in x 3.3 in (Ø 192 mm x 84 mm)
Dynamic Range
Environment Rating
Ethernet1000 Base-T (1Gbps)
Field of View90° / 55°
Face Detection
Focal Length2.8 mm
Focus
Gain Control
H.264Yes
H.265
Horizontal FOV
Housing ColorWhite (Pantone RAL 9003)
Imager4 x 4MP 1/3” CMOS Sensor
Image Orientation Settings
IntelliZip
IR Distance
IR Filter
IR Illuminator
Lens TypeFixed
Manual Speed
Max ApertureF/2
Max Frame Rate30 fps
Minimum IlluminationColor 0.41 Lux | B/W 0.022 Lux
MJPEGYes
Motion DetectionUp to 4 areas per sensor
Noise Reduction
Onboard StorageMicro SD, Micro SDHC, Micro SDXC (128GB Max)
ONVIF CompliantProfile S
Outdoor RatingIP66
Pan Travel
Power DrawPoE+ 17.5W, 12VDC 16.5W
Power InputPower over Ethernet (PoE+) IEEE 802.3at Type 2 Class 4, 12VDC
Power Supply
Presets
Privacy Zones16 per sensor
Resolution OptionsResolution & Aspect Ratio:-

– H264: Stream 1 @ 30 fps : 2560×1440 16:9, 2304×1296 16:9, 1920×1080 16:9 (1080p), 1280×720 16:9 (720p)

– H264: Stream 2 @ 30 fps : 640×480 4:3 (VGA), 704×576 D1 PAL, 704×480 D1 NTSC, 352×288 CIF PAL, 352×240 CIF NTSC

– MJPEG: Stream 3 @ 10 fps : 1280 x 720 16:9 (720p), 800×600 4:3, 640×480 4:3 (VGA), 768×432 16:9, 704×576 D1 PAL, 704×480 D1 NTSC, 352×288 CIF PAL, 352×240 CIF NTSC

Shutter SpeedAuto / Manual (1/15 ~ 1/32000), Anti-Flicker, Slow Shutter(1/2,1/3,1/5,1/6,1/7.5,1/10)
Simultaneous Users5
Supported ProtocolsTCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
S/N Ratio
Tilt Travel
Turnstile Mode
Vandal-ResistantIK10
Video StreamsTriple Stream
Weight4.4 lbs (2.0 kg)
White Balance
Wide Dynamic RangeTrue WDR
