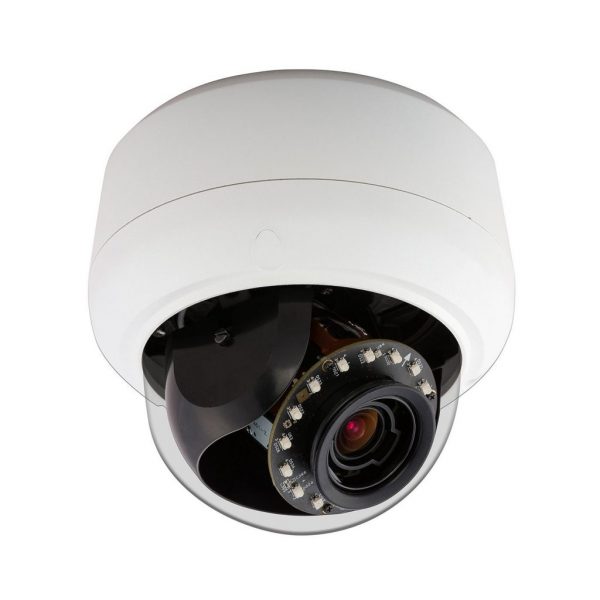

Illustra Pro 3MP Mini-Dome
Professional – High Definition IP Mini-Dome Cameras
Camera Features
- Superior low light performance to see important details
- Face detection enhancement to automatically increase video quality around detected faces
- Blur detection to alert users when camera focus or cleaning is necessary
- Quick and easy installation and configuration
- One-touch focus and motorized zoom
- Multiple motorized lens options
- Expanded browser support – IE, Chrome, Firefox, Safari, Windows, Mac, Linux
- Intelligent ROI-based compression for bandwidth management and reduced storage
- Up to five individual programmable regions of interest
- Hybrid streaming with easily accessible analog out
- Operates in extreme temperatures as low as -30°C operating temperature on PoE (outdoor models)
- Durable enclosure protects against vandalism, water and dust with IP66 and IK10 ratings
- Edge-Ready support for exacqVision Edge
- As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Specification
| Camera Features | Illustra Pro 3MP Mini-Dome |
| Alarm Input/Output | – |
| Backlight Compensation | – |
| B/W | 1.8-3mm 3-9mm 9-22mm
0.01 lux 0.02 lux 0.03 lux |
| Color | 1.8-3mm 3-9mm 9-22mm 0.3 lux 0.3 lux 0.4 lux |
| Corridor Mode | Yes |
| Day/Night | TDN |
| Defog | – |
| Digital Noise Reduction | – |
| Dimensions | – |
| Environment Rating | Indoor and Outdoor models available |
| Ethernet | – |
| Field of View | 1.8-3mm 3-9mm 9-22mm
W: 103°x87° T: 74°/59° W: 88°/64° T: 30°/22° W: 29°/21° T: 12°/9° |
| Focal Length | No |
| Focus | Auto Focus |
| Gain Control | – |
| H.264 | 2048×1536@30fps |
| H.265 | No |
| Horizontal FOV | – |
| Housing Color | White / Black |
| Imager | 1/3.2˝ CMOS progressive scan |
| IntelliZip | No |
| Lens Type | Motorized Varifocal: (3-9mm, 9-20mm)Manual Varifocal: (1.8-3mm) |
| Manual Speed | – |
| Max Aperture | – |
| Max Frame Rate | – |
| Minimum Illumination | – |
| MJPEG | 1920×1440@15fps |
| Motion Detection | No |
| Noise Reduction | – |
| Onboard Storage | Yes |
| ONVIF Compliant | Yes |
| Outdoor Rating | IP66 |
| Pan Travel | – |
| Power Draw | – |
| Power Input | PoE IEEE 802.3af Class 3 |
| Power Supply | – |
| Presets | – |
| Privacy Zones | – |
| Resolution Options | 3MP, 2MP, 1MP, 2592×1944, (2048×1536) QXGA, (1920×1440), (1920×1080), (1600×1200) UXGA, 1080, (1280×960) SXGA, (1920×1080) 1080p, (1280×720) 720p, (1024×768) 1024 XGA, (1024×576) PAL+, (768×576), (640×480) 640 VGA, (640×360) nHD, (480×360) 480, (384×288), (384×216) |
| Shutter Speed | – |
| Supported Protocols | – |
| S/N Ratio | – |
| Tilt Travel | – |
| Vandal-Resistant | IK10 |
| Video Streams | No |
| Weight | – |
| White Balance | – |
