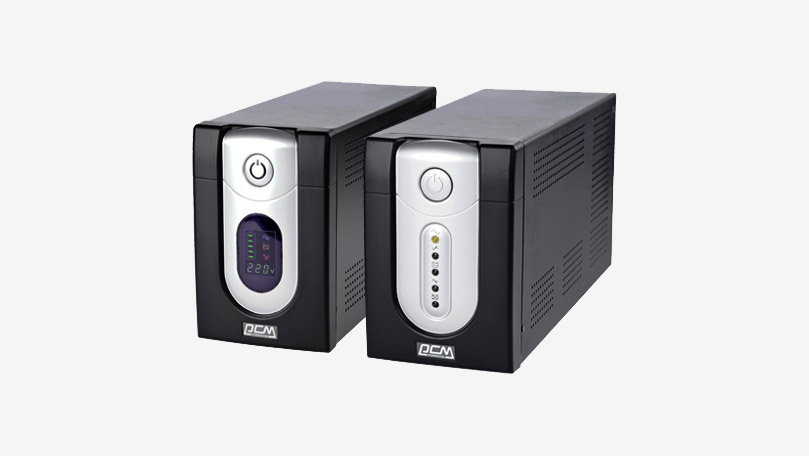

POWERCOM-IMP
IMP/D – Imperial Line Interactive UPS
POWERCOM-IMP 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM IMP/IMD Line Interactive UPS with curve outfit and power protection function are the best choice for Telecom, Business and home application, POWERCOM IMP/IMD line-interactive UPS series with Auto Voltage Regulator (AVR) stabilize fluctuate voltage including over-voltage, under-voltage and other unfluctuating voltage problem and output with clean and stable voltage for essential device. IMP/IMD line-interactive UPS apply with advanced microprocessor control, energy saving green topology and audible alarm system, brings up energy-saving and efficient operating function for essential device. Moreover, IMP/IMD line-interactive UPS series offers protection including overload, surge and short circuit protection. POWERCOM IMP/IMD Line Interactive UPS with elegant design and power protection feature are the best choice for telecom, business and home application.
- Build-in AVR for Fluctuating Voltage Problem
- Diagram LCD for better status indication
- Advanced Digital Microprocessor Control
- Surge, Short Circuit, Overload Protections
- Energy Saving Green Topology
- IMP-425 ~ 3000 VA
型號：IMP-425A/AP、IMP-525A/AP、IMP-625A/AP、IMP-825A/AP、IMP-1000A/AP
規格
| UPS | ||||||
|---|---|---|---|---|---|---|
| Model | IMP-425A/AP | IMP-525A/AP | IMP-625A/AP | IMP-825A/AP | IMP-1000A/AP | |
| IMD-425A/AP | IMD-525A/AP | IMD-625A/AP | IMD-825A/AP | IMD-1000A/AP | ||
| Capacity(VA) | 425 VA | 525 VA | 625 VA | 825 VA | 1000 VA | |
| Capacity(Watts) | 255 W | 315 W | 375 W | 495 W | 550 W | |
| Form | Tower Type | INPUT | ||||
| Voltage | 100 / 110 / 120 or 220 / 230 / 240 Vac | |||||
| Voltage Range | 75 – 150 or 165 – 300 Vac | |||||
| Frequency Range | 50 / 60 Hz (Auto Sensing) | OUTPUT | ||||
| Waveform | Simulated Sine Wave | |||||
| Voltage | 100 / 110 / 120 or 220 / 230 / 240 Vac | |||||
| Frequency | 50 / 60 Hz ± 0.5 Hz | |||||
| Transfer Time | 2 -4 ms(Typical) | PROTECTION | ||||
| Full Protection | Overload, Surge, Short Circuit | |||||
| Tele Communication | RJ11 / RJ45 : AP Model | BATTERY | ||||
| Model | IMP-425A/AP IMD-425A/AP |
IMP-525A/AP IMD-525A/AP |
IMP-625A/AP IMD-625A/AP |
IMP-825A/AP IMD-825A/AP |
IMP-1000A/AP IMD-1000A/AP |
|
| Type | 12V 7.2Ah | 12V 9Ah | ||||
| Quantity | 1 | |||||
| Typical Recharge Time | 6 – 8 Hr to 90% | MANAGEMENT & COMMUNICATION | ||||
| Indicator | LED Control Panel, IMP Digital Control Panel, IMD |
|||||
| Communication Port | USB B-type : AP model | PHYSICAL | ||||
| Dimensions(WxDxH)(mm) | 105 x 334 x 168 | |||||
| Weights(Kgs) | 6.1 | 6.3 | 6.8 | |||
| Shipping Dimensions(mm) | 196 x 410 x 263 | |||||
| Shipping Weights(Kgs) | 7.4 | 7.6 | 8.1 | Alarm | ||
| Overload / Fault | Continuous Beeping | |||||
| Battery Mode | Beep every 2 seconds | |||||
| Low Battery | Beep every 0.5 seconds | Environment | ||||
| Operating Humidity | 0 – 90 % RH at 0 – 40 °C (Non-condensing) | |||||
| Audible Noise | Less than 40 dB | |||||
