描述

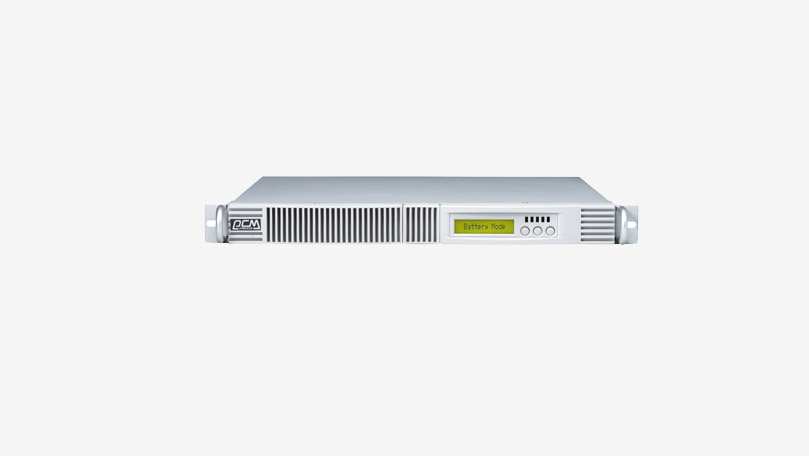

POWERCOM-INV
INV – Inverter RM Inverter
POWERCOM-INV 屬POWERCOM不斷電系統(UPS)產品。傑成系統有限公司(香港防盜)為POWERCOM產品安裝商及經銷商,可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源,方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM INV inverter series are outfit with thin appearance and output with pure sinewave are the design for mini-workstation, IT and business device. INV series are inverter design, transfers DC into AC voltage for connected electronic device. High quality pure sinewave outputs are provided by INV series, 1U sizes are compatible with rack mounting device design. INV series with clear LCD indicator clearly shows up model status for users. POWERCOM INV inverter series output with pure sinewave, transfers DC into AC voltage and with thin appearance for connected electronic device are the best design for mini-workstation, IT and business device.
- Pure Sinewave Output
- Advanced Battery Management (ABM)
- Clear and LCD Indicator
- Energy Saving Green Topology
- Overload, Surge, Short Circuit Protection
型號:INV-700 RM、INV-1000 RM
規格
| Model | |||
|---|---|---|---|
| Model | INV-700 RM | INV-1000 RM | |
| Capacity(VA) | 700 | 1000 | |
| Capacity(Watt) | 490 | 700 | INPUT (DC) |
| Nominal Voltage | ± 48V | ||
| Voltage Range | ± 40 – 56V | ||
| Frequency Range | 50 / 60 Hz (auto sensing) | OUTPUT | |
| Voltage | 100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac | ||
| Voltage Regulation | ±2% | ||
| Frequency Range | 50 / 60 ± 0.5 Hz | ||
| Harmonic Distortion | < 3% of T.H.D. at linear load | ||
| Power Factor | 0.7 | ||
| Waveform | Pure sine wave | Protection | |
| Full Protection | Overload, Short Circuit, Over Temperature | Management | |
| Indicator | LCD panel | PHYSICAL | |
| Dimensions(WxDxH)(mm) | 428 x 525 x 44 | ||
| Weights(Kgs) | 15.5 | ||
| Shipping Dimension(mm) | 547 x 645 x 168 | ||
| Shipping Weight(kgs) | 17.5 | COMMUNICATION | |
| Communication Port | RS232, USB(B-type) | Alarm | |
| Low Condition | 2 beep every 5 seconds | ||
| Fault | Continuous Beeping | ||
| Low Battery | Beep every 0.5 second | Environment | |
| Operating Humidity | 0~90% RH at 0~40°C (Non-condensing) | ||
| Audible Noise | Less than 45 dB | ||
