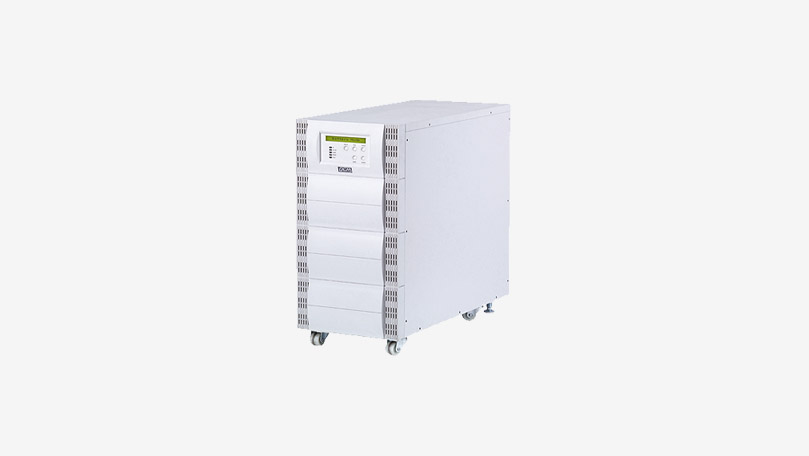

POWERCOM-VGD31
VGD31 – Vanguard 31 ON – Line UPS
POWERCOM-VGD31 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM VGD31 online series with functional high performance, transfer three phase voltage into single phase voltage are the best choice for industrial electronic device. VGD31 series provide pure sinewave for connected device and transfer three phase voltage into single phase output voltage for connected device. VGD31 series attached with PFC (Power Factor Correction) stabilize fluctuate voltage, including over voltage, lower voltage and provide clean and stable voltage for critical device. POWERCOM VGD31 online series with easy-reading LCD indicator, clearly shows up UPS status and easy to operate. POWERCOM VGD31 online series with high performance and transfer three phase voltage into single phase voltage are the best choice for industrial electronic device.
- On-Line UPS and Pure Sinewave Output
- Three Phase Input and Single-Phase Output
- Design for Advanced Electronic Device
- Overload, Surge, Short Circuit Protection
- Advance Battery Management (ABM)
- High Efficiency Mode
- VGD-8K ~ 20K 31
型號：VGD-8K 31、VGD-10K 31、VGD-12K 31、VGD-15K 31、VGD-20K 31
規格
| UPS | ||||||
|---|---|---|---|---|---|---|
| Model | VGD-8K 31 | VGD-10K 31 | VGD-12K 31 | VGD-15K 31 | VGD-20K 31 | |
| Capacity (VA) | 8K | 10K | 12K | 15K | 20K | |
| Capacity (Watts) | 5600 | 7000 | 8400 | 10500 | 14K | |
| Form | Tower | |||||
| Phase | Input : Three Phase , Output : Single Phase | |||||
| Energy Saving | Yes – ECO mode Efficiency > 94% | INPUT | ||||
| Voltage | 208/360 , 220/380 , 230/400 , 240/415 Vac | |||||
| Voltage Range | 208 ~ 478 Vac < 25% Load 243 ~ 478 Vac < 50% Load 277 ~ 478 Vac < 75% Load 312 ~ 478 Vac < 100% Load | |||||
| Frequency Range | 50 / 60 Hz (Auto Sensing) | |||||
| Power Factor | > 0.9 | |||||
| Cold Start | Yes | OUTPUT | ||||
| Rated Power Factor | 0.7 | |||||
| Waveform | Pure Sine Wave | |||||
| Voltage | 208* / 220 / 230 / 240 Vac ± 2% | |||||
| Frequency | 50 / 60 Hz ± 0.5% | |||||
| Transfer Time | 0 ms | |||||
| Harmonic Distortion | ≤ 3% THD at Linear Load | ≤ 5% THD at Linear Load | ||||
| Crest Factor | 3 : 1 | |||||
| EPO Function | Yes | PROTECTION | ||||
| Overload | Line Mode | 110% – 125% for 60 seconds 125% – 150% for 10 seconds | ||||
| Battery Mode | > 110% for 10 seconds | |||||
| Surge Protection | IEC 61000-4-5 Level 3 | |||||
| Bypass | Internal Bypass(Automatic and Manual) | |||||
| Short Circuit Protection | UPS Output Cut Off Immediately | BATTERY | ||||
| Model | VGD-8K 31 | VGD-10K 31 | VGD-12K 31 | VGD-15K 31 | VGD-20K 31 | |
| Type | 12V 7Ah | 12V 9Ah | 12V 7Ah | 12V 9Ah | ||
| Quantity | 20 | 20 x 2 set | ||||
| Sealed, Maintenance Free | YES | |||||
| Typical Recharge Time | 4 Hr to 90% | |||||
| External Battery Module | Option | |||||
| External Battery Connector | Option | MANAGEMENT | ||||
| Indicator | LCD Control Panel | |||||
| Communication Port | RS232, USB(B-type) | |||||
| SNMP Slot | Option | |||||
| Audible Alarms | YES | PHYSICAL | ||||
| Dimensions (WxDxH) | 257 x 690 x 715 | 342 x 690 x 905 | 342 x 760 x 905 | |||
| Weights (Kgs) | 112 | 190 | 207 | |||
| Shipping Dimensions (WxDxH) | 415 x 860 x 930 | 512 x 873 x 1135 | 500 x 930 x 1135 | |||
| Weights (Kgs) | 139 | 210.7 | 225 | PHYSICAL W/ISO TX | ||
| Dimensions (WxDxH) | 342 x 690 x 715 | 342 x 690 x 905 | 342 x 760 x 905 | |||
| Weights (Kgs) | 178 | 243 | 273.5 | |||
| Shipping Dimensions (WxDxH) | 500 x 860 x 930 | 512 x 873 x 1135 | 500 x 930 x 1135 | |||
| Weights (Kgs) | 210 | 263.7 | 295.7 | |||
