描述

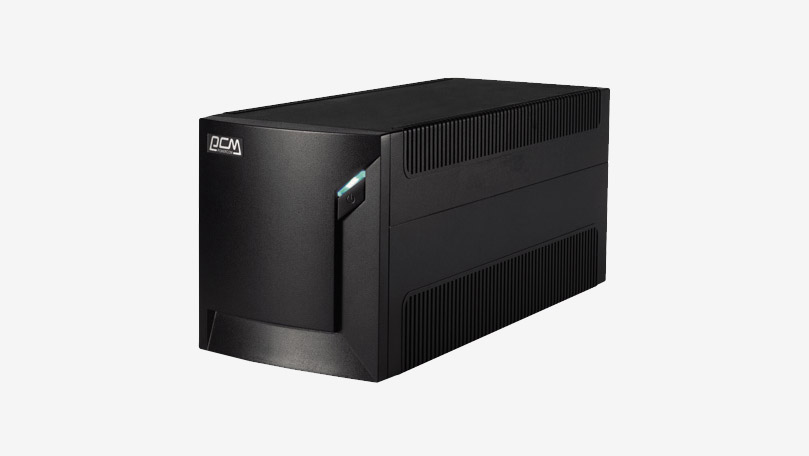

POWERCOM-RPT
RPT – Raptor Line Interactive UPS
POWERCOM-RPT 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM RPT Line Interactive UPS series, provide simulated sine wave output for connected application is the best choice for Office, SOHO and Home application. RPT series UPS retain compact size offer more room to the operating environment. RPT series UPS come with easy-reading LED/ LCD display, Advanced Battery Management, Green Power saving design for UPS status deliver and UPS power saving. POWERCOM RPT Line Interactive series build in AVR (Automatic Voltage Regulator) stabilize fluctuated voltage including over-voltage, under-voltage and other voltage problem, and output with stable output voltage to the essential equipment. POWERCOM RPT series compacted design and multi-working function carry on the duty for computer and small server protection.
- Line-Interactive UPS Design
- Build-in AVR aimed for Fluctuating Voltage
- LED / LCD Display for Instant Status Indication
- Simulated Sinewave for Office Appliances
- Auto Self-Diagnose and Alarm Warnings
- Surge, Short Circuit, Overload Protections
- RPT – 600 / 800 / 1000 / 1025 / 1500 / 2000VA
型號：RPT-600AP、RPT-800AP、RPT-1000AP、RPT-1025AP、RPT-1500AP、RPT-2000AP
規格
| UPS | |||||||
|---|---|---|---|---|---|---|---|
| Model | RPT-600AP | RPT-800AP | RPT-1000AP | RPT-1025AP | RPT-1500AP | RPT-2000AP | |
| RPT-600A | RPT-800A | RPT-1000A | |||||
| Capacity(VA) | 600 VA | 800 VA | 1000 VA | 1025 VA | 1500 VA | 2000 VA | |
| Capacity(Watts) | 360 W | 480 W | 600 W | 615 W | 900 W | 1200 W | |
| Form | Tower Type | INPUT | |||||
| Nominal Voltage | 100 / 110 / 120VAC or 220 / 230 / 240VAC | ||||||
| Voltage Range | 75 – 150VAC or 165 – 300VAC | ||||||
| Frequency Range | 50Hz / 60Hz(Auto Sensing) | OUTPUT | |||||
| Voltage | 100 / 110 / 120VAC or 220 / 230 / 240VAC | ||||||
| Frequency Range | 50 / 60 Hz 0.25HZ | ||||||
| Transfer Time(ms) | 2 – 4 (Typical) | ||||||
| Waveform | Simulated Sine Wave | BATTERY | |||||
| RPT Model | 600VA | 800VA | 1000VA | 1025VA | 1500VA | 2000VA | |
| Type & Number | 12V7Ah x 1 | 12V7.2Ah x 1 | 12V9Ah x 1 | 12V7Ah x 2 | 12V7.2Ah x 2 | 12V9Ah x 2 | |
| Recharge Time | 3 ~ 4 hours to 90% capacity | PROTECTION | |||||
| Full Protection | Overload, Surge, Short Circuit | ||||||
| Tele Communication | RJ11 / RJ45 : AP model | Management & Communication | |||||
| Indicator | LED indicator | LED or LCD | |||||
| Communication Port | USB Btype : AP Model | PHYSICAL | |||||
| Dimension (WxDxH)(mm) | 100 x 278 x 143 | 147 x 360 x 164 | |||||
| Weight (kgs) | 4.3 | 4.8 | 5.4 | 8.5 | 10.1 | 11.1 | |
| Shipping Dimension (mm) | 147 x 329 x 227 | 233 x 449 x 277 | |||||
| Shipping Weight (kgs) | 4.8 | 5.3 | 5.9 | 9.7 | 11.3 | 12.3 | ALARM |
| Overload | Continuous Beeping | ||||||
| Battery Mode | Beep every 2 seconds | ||||||
| Low Battery | Beep every 0.5 second | MANAGEMENT | |||||
| Interface | Usb Port / Serial Port / Software | ENVIRONMENT | |||||
| Humidity | 0 ~ 95% RH at 0 ~ 40℃(Non-condensing) | ||||||
| Audible Noise | Less than 40 dB | ||||||
