描述

ROSSLARE AY-B1660 & AY-B2660 是ROSSLARE指紋門禁終端。香港防盜為安裝商及經銷商。手套或手濕不建議只用指紋。規格以下方原廠資料為準。

相關方案：門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

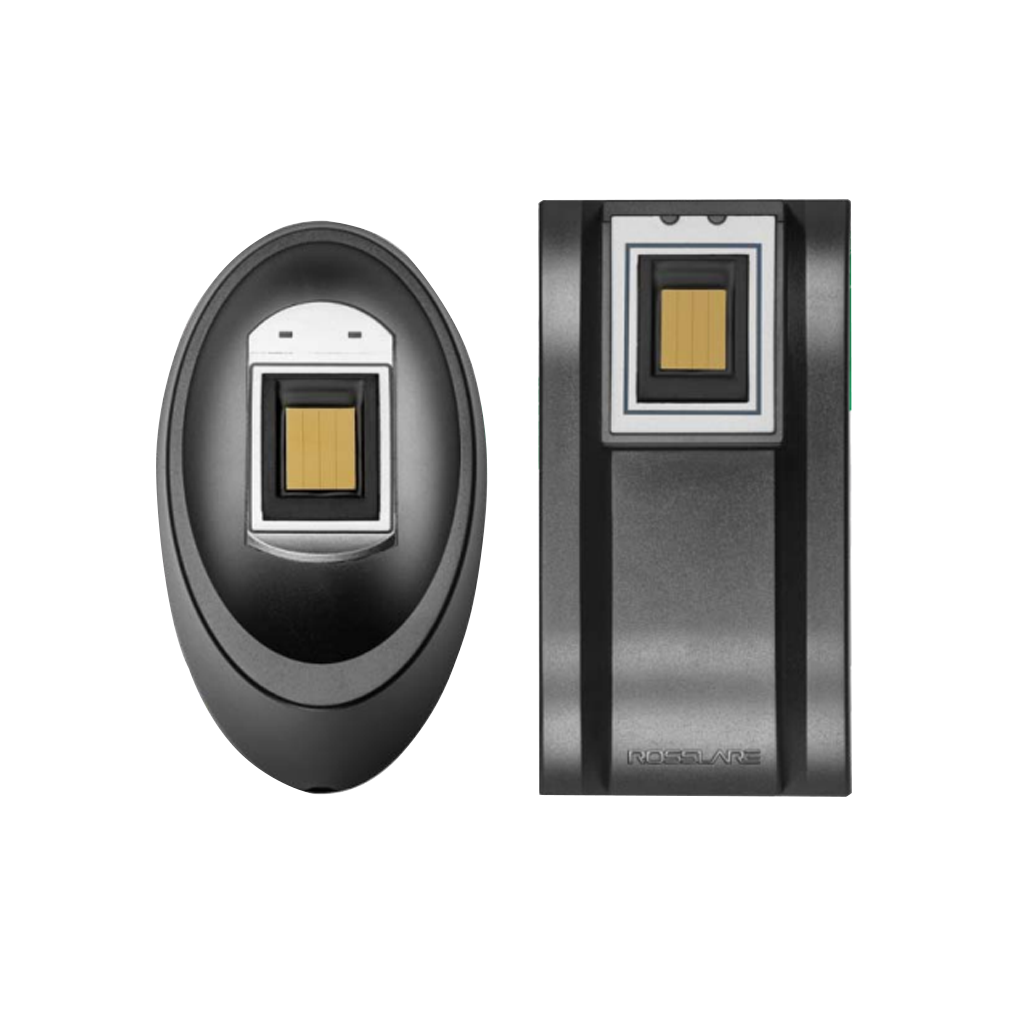

ROSSLARE AY-B1660 & AY-B2660

MIFARE Classic® EV1 Capacitive Fingerprint
(MOC) Reader Family

MAIN FEATURES

Advanced, secure, multi-application functionality for intelligent installations
Unlimited number of users
Unique and reliable Match-On-Card technology
Designed for indoor use (capacitive sensor protection required for outdoor use)
Easy to deploy in field with configuration card (Master card) for secure sector reading of data from sectors
Configurable multi output format, supports Wiegand 26-bit format and many more
Compatible with Rosslare’s CP-R26 USB Desktop Card Programmer and fingerprint enroller
PC software for Master and User Card configuration (AS-B01)
Reads MIFARE Classic® EV1 ISO14443 Type A, standards cards
Optical tamper sensor for case and wall tamper detection
Fully compatible with MIFARE Classic® EV1 1K and 4K credentials
Configuration card allows setting of:
- Format
- Input Contro
- Lockout parameters
- Secret keys (KeyA)

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Operating Voltage Range

5–16 VDC

Standby Input Current

60 mA

Maximum Input Current

135 mA

Tamper Output

Open collector, active low, max. sink current 32 mA

SENSOR SPECIFICATIONS

Array Size

208 x 288 sensors

Capture Rate

15 frames per second

Image Resolution

508 DPI

OPERATIONAL SPECIFICATIONS

Inputs

2 programmable LEDs / buzzer control input, N.O, Dry Contact

Indicators

2 three color LEDs

Output Format

Wiegand 26-Bit, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit, and Clock & Data

Built-In Proximity Reader

Operating frequency: 13.56 MHz

Compatible Cards

MIFARE Classic® EV1 Compatible ISO-14443A

Max. Proximity Read Range

4 cm (1.6 in.)

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature Range

-25ºC to 60ºC (-13ºF to 140º F

Operating Humidity Range

30% to 85% (non-condensing)

MECHANICAL SPECIFICATIONS

AY-B1660

AY-B2660

Dimensions (L x W x H)

100 x 54 x 42 mm
(3.9 x 2.1 x 1.7 in.)

102 x 54 x 32 mm
(4.0 x 2.1 x 1.3 in.)

Weight

79 g (2.8 oz)

156 g (5.5 oz)

SYSTEM COMPONENTS

The MIFARE Classic® EV1 Fingerprint (MOC) Readers are compatible with Rosslare’s CP-R26 USB Desktop card programmer and its associated software, the AS-B01.
The Readers are compatible with Rosslare’s controllers as well as various third party systems.
