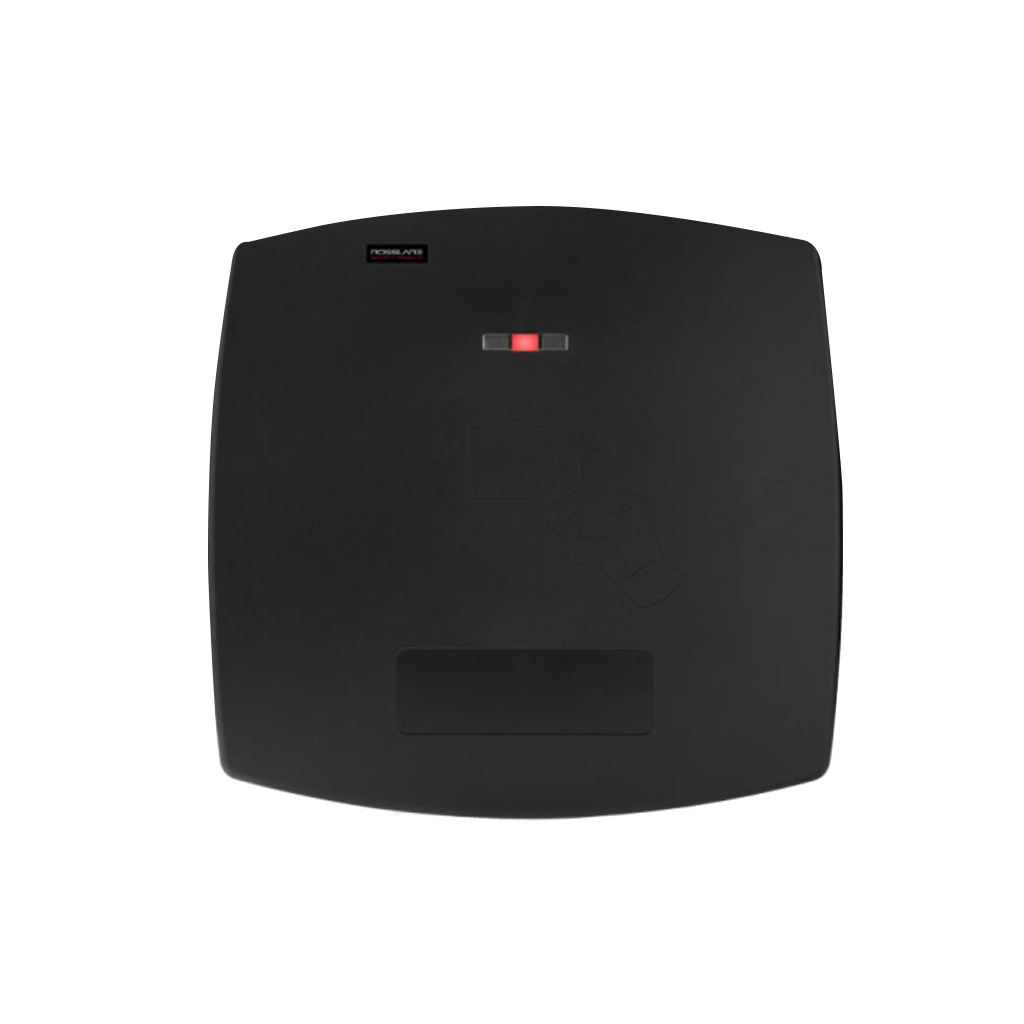

ROSSLARE AY-Z12A
Long Range Outdoor Proximity Reader
MAIN FEATURES
Wiegand 26 Bit output format
RFID read range:
▪ Up to 60 cm (23.6 in.) in single mode
▪ Up to 45 cm (17.7 in.) in multiple mode
Operating voltage range of 10 to 16 VDC
60 cm (23.6 in.) shielded interface cable
PROFESSIONAL GRADE FEATURES
RF Modulation: ASK at 125 kHz
Compatible with standard, passive EM type, cards and tags
Internal buzzer
LED control input
Optical wall tamper detection
Made of tough polycarbonate UV-resistant plastic
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 10-16 VDC, from a regulated power supply |
| Input Current | Standby: 280 mA at 12 VDC Maximum: 330 mA at 12 VDC |
| LET Control | Dry Contact, N.O. |
| Proximity | Maximum read range*: 60 cm (23.6 in.) – single mode, 45 cm (17.7 in.) – multiple mode Modulation: ASK at 125 kHz Compatible cards: All 26-Bit EM Cards |
| Tamper | Optical back tamper sensor, O.C. active low 30 mA max sink current |
| OPERATIONAL SPECIFICATIONS | |
| Output Format | Wiegand 26-bit |
| Audio/Visual | Tri-color LED indicator, Built-in sounder |
| Design | Epoxy potted, fully sealed in a rugged polycarbonate enclosure. Suitable for harsh environments |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | IP54 |
| Operating Temperature | 30˚C to 63˚C (-22˚F to 145˚F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 30 x 30 x 2.5 cm (11.8 x 11.8 x 1 in.) |
| Weight | 1.066 kg (2.35 lbs) |
| System Components | The AY-Z12A is compatible with a variety of Rosslare’s access controllers (AC-215, AC-115, AC-020, AC 015), as well as with many third party access control systems. |
