描述
ROSSLARE AY-D09M 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

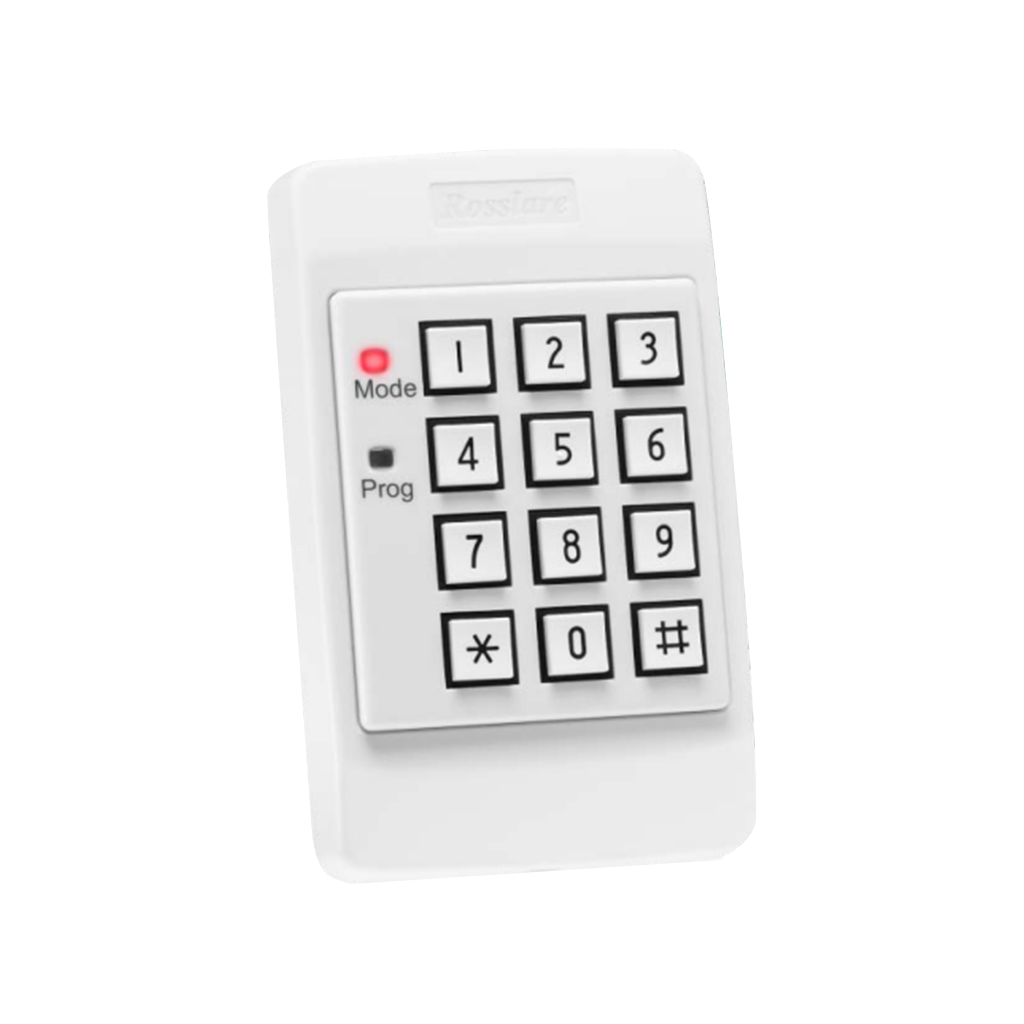

ROSSLARE AY-D09M
Indoor Multi-Format PIN Reader
MAIN FEATURES
Sophisticated Wiegand 26-bit format
High quality membrane keypad
Slim, stylish design for indoor use
Two tri-colored LEDs
Buzzer indicator
PROFESSIONAL GRADE FEATURES
Built-in tamper detection when used with Rosslare controllers
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Input voltage | 5 – 16 VDC |
| Input current | Standby: 55 mA Maximum: 100 mA |
| Output | Wiegand 26-Bit |
| LED signaling | Two tri-colored LEDs |
| Sounder | Internal buzzer provides audible interface feedback |
| Wiring | 4-wire terminal block |
| Tamper | Yes |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Suitable for indoor use |
| Operating Temperature | -32°C to 63°C (-25°F to 145°F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 122 x 75 x 24 mm (4.80 x 2.95 x 0.94 in.) |
| Weight | 110 g (3.88 OZ) |
| SYSTEM COMPONENTS | The AY-D09M is compatible with a variety of Rosslare’s Wiegand 26-bit supporting single/double/multi-door controllers, as well as with many third-party access control systems. |
