描述
ROSSLARE AY-x5B 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

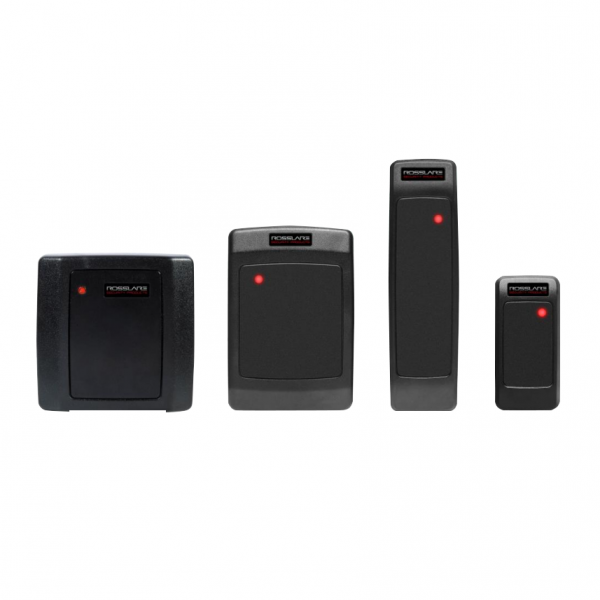

ROSSLARE AY-x5B
MIFARE Classic® EV1 Contactless 13.56 MHz Smart Card Reader
MAIN FEATURES
▪ Incorporates the ISO-14443A (MIFARE Classic EV1) ID format protocol
▪ Read range of up to 65 mm (2.6 in.) depending on the card type
▪ Supports standard Wiegand 26-40 Bit
▪ Made of tough polycarbonate plastic for improved performance in all indoor weather conditions
▪ Developed for cost-effective market
PROFESSIONAL GRADE FEATURES
▪ Bi-colored LED and LED control input
▪ Internal buzzer
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
| Operating Voltage Range | 5–16 VDC from a regulated power supply | |||
| Input Current | Standby: 45 mA @ 12 VDC Max: 100 mA @ 12 VDC |
|||
| OPERATIONAL SPECIFICATIONS | ||||
| Indicators | Bi-colored LED indicator | |||
| Inputs | Input for LED control | |||
| Output Format | Selectable transmission formats: Wiegand 26-Bit w/site code, Fixed 26-bit, 32-Bit, 32-Bit reversed, 34-Bit, 40-Bit and Clock & Data |
|||
| Maximum read range | AY-M5B: 6.5 cm (2.6 in.) AY-H5B/AY-L5B: 7 cm (2.8 in.) AY-K5B: 6 cm (2.4 in.) |
|||
| Built-In Proximity Reader | Operating frequency: 13.56 MHz Compatible cards: MIFARE Classic EV1 compatible ISO-14443A |
|||
| ENVIRONMENTAL SPECIFICATIONS | ||||
| Operating Environment | Suitable for Indoor Use, IP-54 | |||
| Operating Temperature Range | -31°C to 63°C (-25°F to 145°F) | |||
| Operating Humidity Range | 0% to 95% (non-condensing) | |||
| MECHANICAL SPECIFICATIONS | AY-M5B | AY-H5B | AY-L5B | AY-K5B |
| Dimensions (H x W x D) | 89 x 89 x 15mm (3.5 x 3.5 x 0.6 in.) |
110 x 75 x 15 mm (4.3 x 3.0 x 0.6 in.) |
145 x 43 x 20 mm (5.7 x 1.7 x 0.8 in.) |
80 x 40 x 12.8 mm (3.2 x 1.6 x 0.5 in.) |
| Weight | 75.0 g (2.6 oz.) | 74.8 g (2.6 oz) | 7O.6 g (2.5 oz) | 34.3 g (1.2 oz) |
