描述

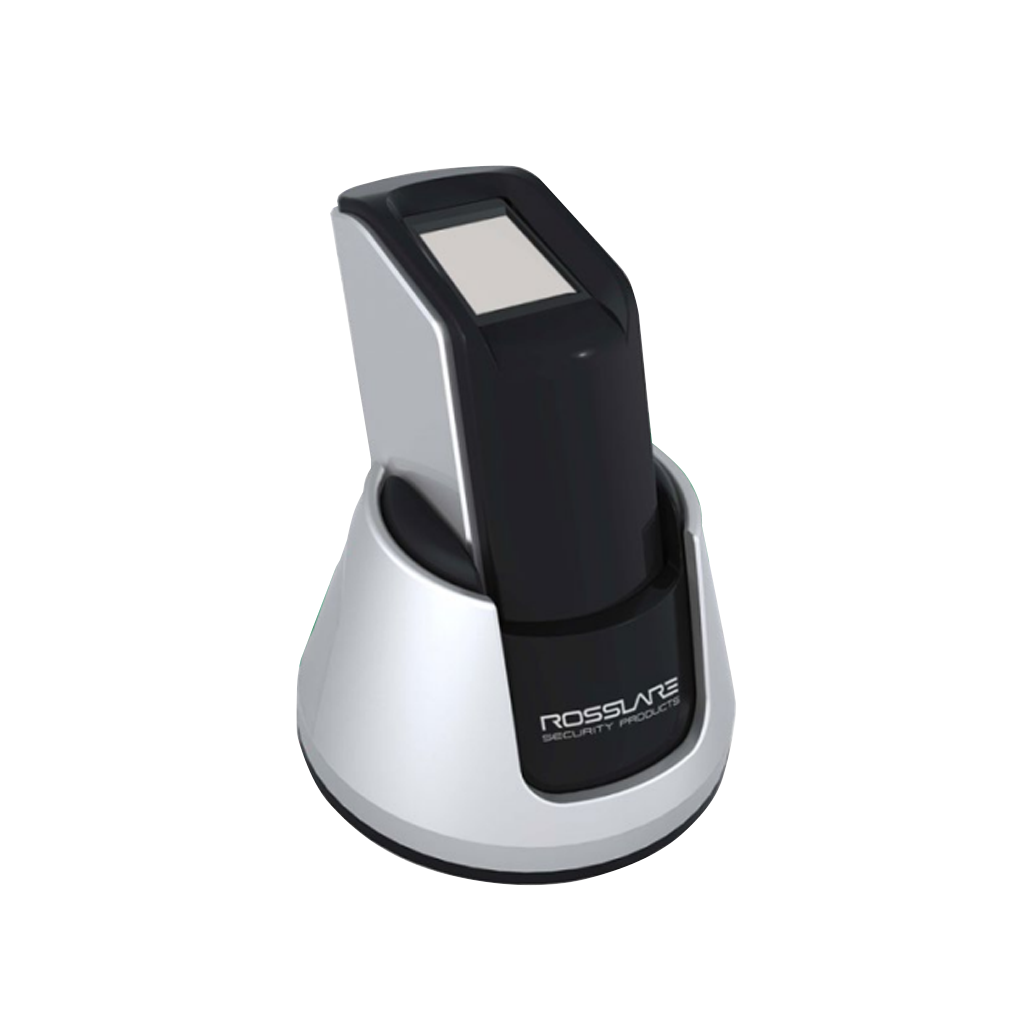

ROSSLARE DR-B9000
USB Fingerprint Reader / Scanner
Enrollment Terminal with Liveness Check
PROFESSIONAL GRADE FEATURES
- USB 2.0 complaint
- USB Powered – no need separate power supply
- Use standard drivers that support the following operating systems:
- Windows series
- Linux kernel v2.6x and v3.x
- Android 3.1(API Level 12) HONEYCOMB_MR1
MAIN FEATURES
- Scratch-proof glass scanning surface
- Dual technology IR and camera scanning
- Crystal clear finger scan image
- Well designed for convenient use
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Power | USB Bus Powered |
| Current Consumption (Normal) | 80 mA |
| Current Consumption (Standby) | < 5mA |
| Current Consumption (Capture Operation) | Max 120 mA |
| ESD Tolerance | < +/- 8 KV |
| OPTICAL FINGERPRINT SENSOR TECHNOLOGY | |
| Resolution | 500 PPI |
| Platen Area | 14.8 (x) x 17.9mm (y) |
| Effective Sensing Area | 12.6 (x) x 14.8mm (y) |
| Effective Pixel Array | 248 x292 |
| Image Aspect Ratio | 0.85 (x / y) |
| Resolution | 8 bits/pixel (256 Gray Level) |
| Light Source | White LED |
| TEMPLATE COMAPTIBLITY | |
| Interoperability | ISO19794-2/4, ANSI378 |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 68 x 68 x 81 (w/stand) 30 x 48.5 x 70 (w/o stand) |
| Weight | 210 g (0.46 lbs) |
