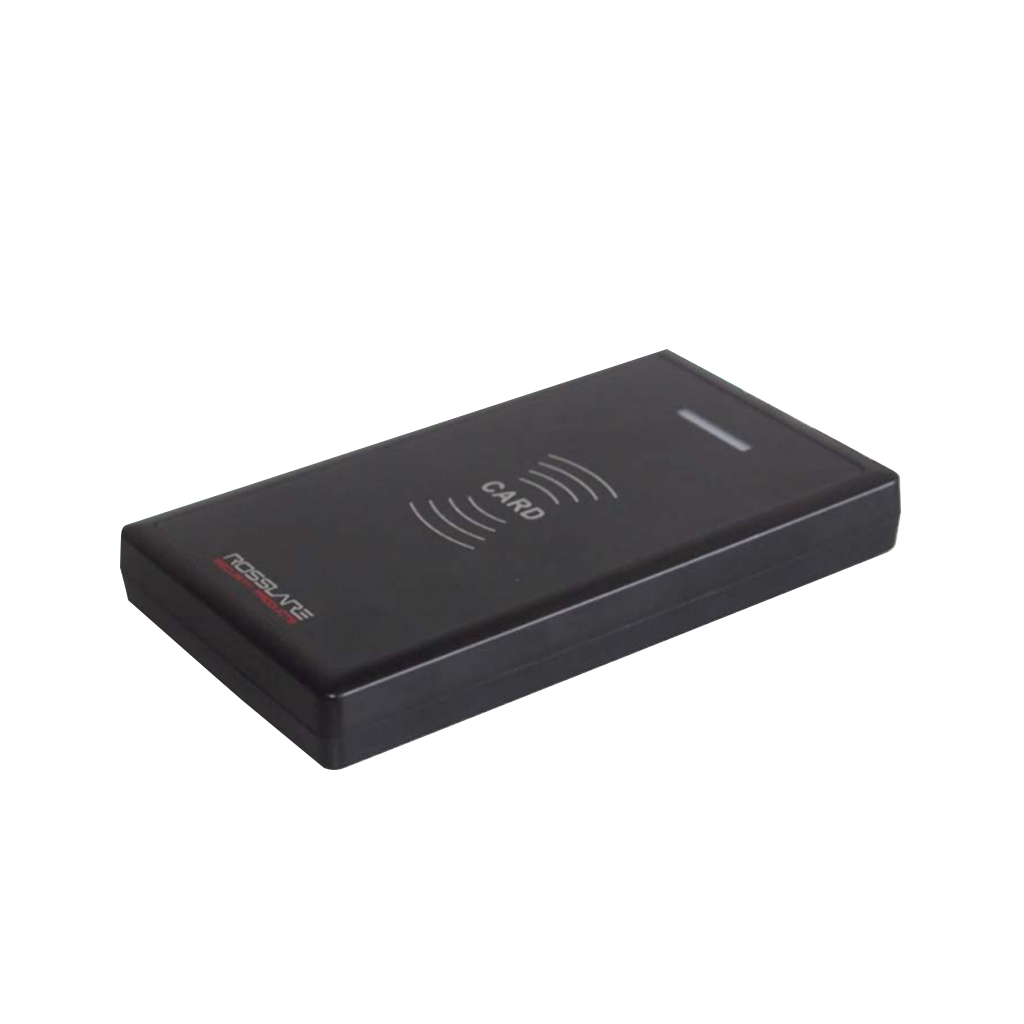

ROSSLARE DR-12C
EM Card Desktop Reader
MAIN FEATURES
Reads EM cards ID
Bi-Colored LED
Supports USB 2.0 standard (compatible with USB 1.1), meets the EIA standard
Driver supports the following Operating Systems:
Windows 7, 8, 8.1 and 10 32- and 64-Bit, Windows Vista, and Vista 64-Bit, Windows XP and XP 64-Bit, Server 2003, XP and Server 2008
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | VDC (USB powered) |
| Operation Current | Standby: 70 mA Max: 90 mA |
| OPERATIONAL SPECIFICATIONS | |
| Supported Transponders | EM cards |
| Read Card Distance | Up to 75 mm (3.0 in.) |
| RF Modulation | ASK |
| Operation Frequency | 125 kHz |
| Output Format | Wiegand 26-Bit |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Indoor use |
| Operating Temperature Range | 0°C to 63°C (32°F to 145°F) |
| Storage Temperature Range | -20°C to 63°C (-4°F to 145°F) |
| Operating Humidity | 0 to 95% (non-condensing) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 123 x 70 x 16 mm (4.9 x 2.8 x 0.6 in.) |
| Weight | 130 g (4.6 oz.) |
| System Components | Compatible with a Rosslare’s AxTraxNG™, as well as many thirdparty Access Control software. |
