ROSSLARE AY-x6x70 是ROSSLARE門禁讀頭，用於層門或通道。香港防盜為安裝商及經銷商。卡種及讀距以原廠規格書為準。

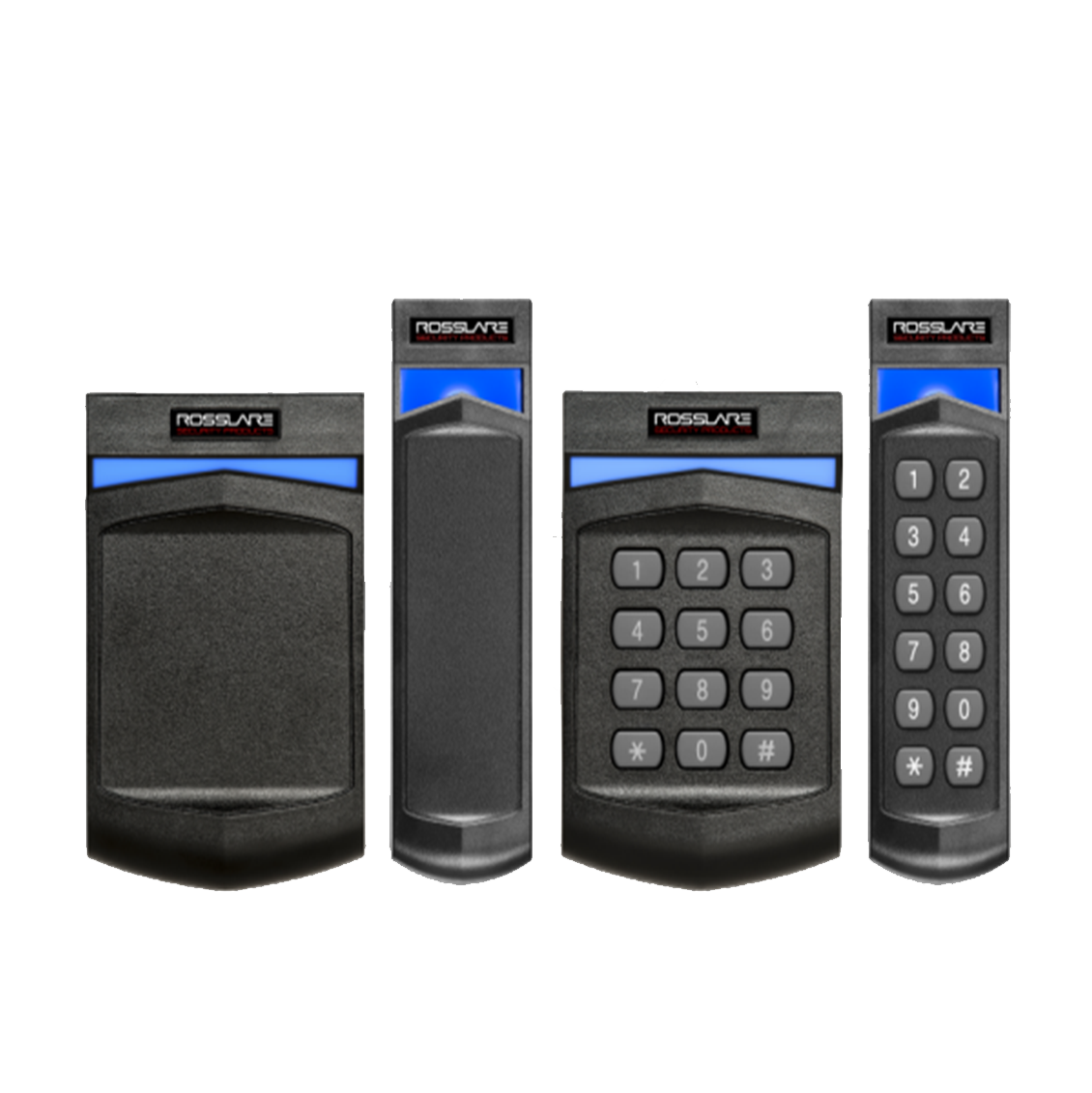

ROSSLARE AY-x6x70
Open to Secure (O2S) Readers
Main Features
• Contactless smart card reader (13.56 MHz)
• Meets ISO14443 Type A Standard
• AES 128-bit encryption during transmission
• Reads O2S ID data from O2S credentials
• Reads CSN of non-O2S credentials
• Output formats:
• Wiegand (per format on O2S credential)
• OSDP via RS-485 (selected models)
• RGB multicolor light indicator
• Blue backlit tact switch keypad
• IP68 water and dust resistant for AY-x6270 pigtail models
• IP65 water and dust resistant for AY-x6270 terminal block models and AY-x6370 models
• IK08 vandal resistant for all AY-x6x70 models
• Optical back tamper sensor
• Two LED control and buzzer control inputs
• Pigtail or terminal block connectivity
• Antimicrobial technology reduces level of microbes on reader by up to 99.99%.
Specifications
| ELECTRICAL SPECIFICATIONS | ||
| Operating Voltage Range | 6 to 16 VDC | |
| Input Current at 12V | Standby: 85 mA, Maximum: 110 mA | |
| OPERATIONAL SPECIFICATIONS | ||
| Read Range (secure credential memory) | AY-H6xx0 | AY-G6xx0 |
| MIFARE Classic EV1 MIFARE Plus |
40 to 45 mm (1.5 to 1.8 in.) 25 mm (1 in.) |
40 to 45 mm (1.5 to 1.8 in.) 30 mm (1.2 in.) |
| LED Control | Two Inputs: Green LED CTL and RED LED CTL – TTL | |
| Auxiliary Input | Buzzer CTL or Hold CTL – TTL | |
| Auxiliary Output | Tamper Output (OC, active low, max. sink current 30 mA) | |
| Supported Protocol | Wiegand OSDP Secure Channel V2 |
|
| Output Format | O2S – Preprogrammed key (per format on O2S credential) Custom – Wiegand 26, 32, 34, 40, 56, 64, 128-bit and customized1 Keypad: Four user-selectable standard formats available |
|
| Maximum Cable Distance to Controller | Wiegand: 150 m (500 ft) with 18-AWG cable OSDP (RS-485): 1200 m (4,000 ft) with 2×2 18-AWG twisted shielded cable |
|
| Compatible Cards | MIFARE Plus X/S (2K, 4K) and MIFARE EV1 Classic (1K, 4K) | |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -31ºC to 63ºC (-24ºF to 145ºF) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| Outdoor Usage | Weather-resistant, epoxy potted, suitable for outdoor use |
| Operating Environment | UV-resistant, epoxy-potted, suitable for indoor and outdoor use • IP68 water and dust resistant • AY-G6270 and AY-H6270 pigtail models • IP65 water and dust resistant • AY-G6270 and AY-H6270 terminal block models • AY-G6370 and AY-H6370 |
| Vandal Resistance | IK08 |
| Antimicrobial efficacy | Inhibits bacteria proliferation by up to 99.9% |
| MECHANICAL SPECIFICATIONS | |
| Dimensions of Pigtail Models (H x W x D) |
AY-G6x70: 145.3 x 42.0 x 23.0 mm (5.7 x 1.7 x 0.9 in.) AY-H6x70: 120.0 x 80.0 x 23.0 mm (4.7 x 3.2 x 0.9 in.) |
| Dimensions of Terminal Block and OSDP Models (H x W x D) |
AY-G6x70: 145.3 x 42.0 x 31.0 mm (5.7 x 1.7 x 1.2 in.) AY-H6x70: 120.0 x 80.0 x 31.0 mm (4.7 x 3.2 x 1.2 in.) |
| Weight | AY-G6x70: 155 g (5.5 oz) AY-H6x70: 217 g (7.7 oz) |
