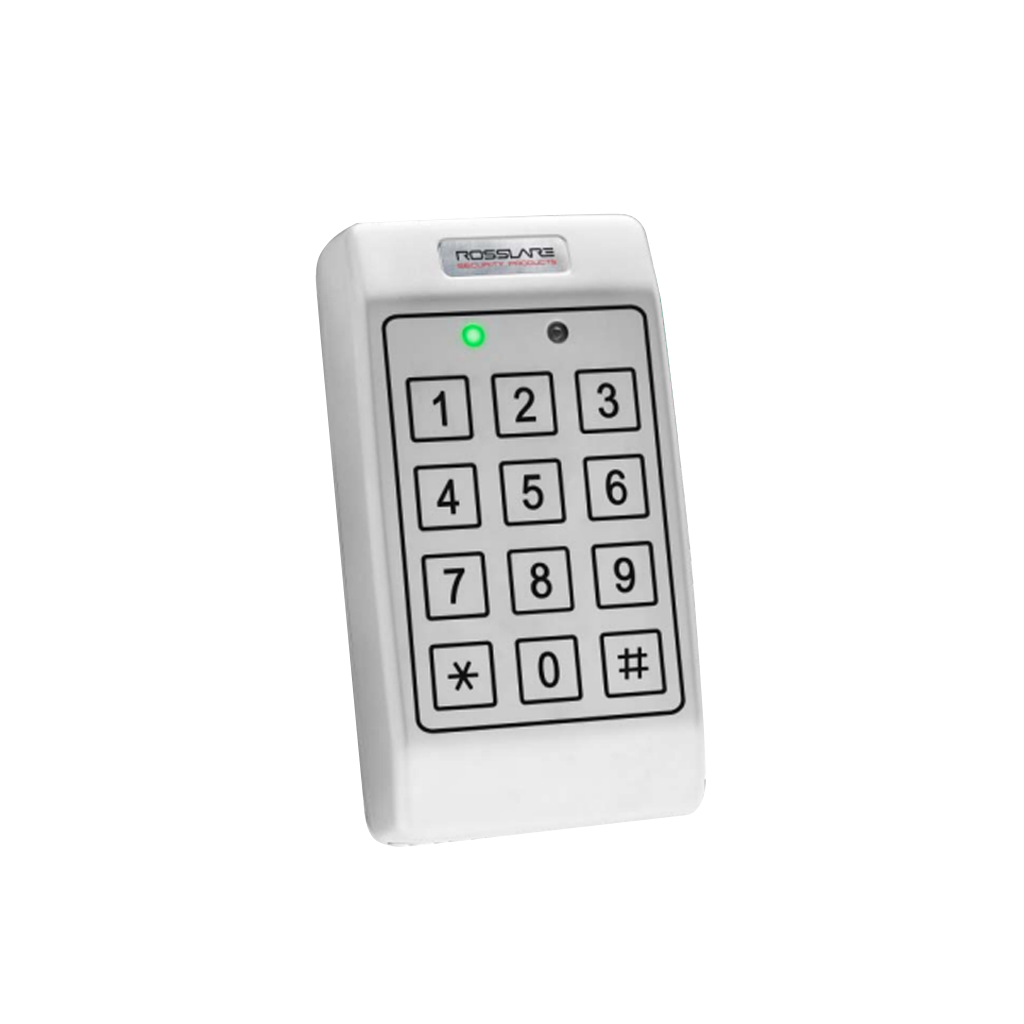

ROSSLARE AY-T55
Anti-Vandal Piezoelectric 3×4 PIN Reader
MAIN FEATURES
Supports 4-digit to 8-digit PIN credentials
Smooth, attractive design, with all-weather indoor and outdoor operation
Large metallic piezoelectric keypad with highly sensitive keys
2 tri-colored LEDs and an integral sounder for programming and operation
User-friendly menu system based on keypad, LED, and sounder indicators
Back Optical tamper detection output
Door bell feature (‘*’ key), when operated with Rosslare controllers
PROFESSIONAL GRADE FEATURES
8 selectable PIN transmission modes including options for key stream, binary, parity, and 3×4 Matrix
LED control
Programmable Facility code
Comes with a mounting and drilling label, security screw, and tool set to prevent unauthorized opening
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 5–16 VDC, from a regulated power supply |
| Standby Input Current | 30 mA |
| Maximum Input Current | 120 mA |
| LED Control Input | Dry Contact, N.O. |
| Tamper Output | Open collector, active low, max. sink current 32 mA |
| OPERATIONAL SPECIFICATIONS | |
| Keypad | 3×4 keypad for PIN codes entry and local programming Doorbell key (‘*’) function (with Rosslare controllers only) |
| Facility Code | Programmable |
| PIN Code Formats | 8 selectable formats, from single-digit to 8-digit PIN codes, including: – Wiegand 6-Bit and 8-Bit, nibble and parity bit options, optional Rosslare format – 1–5 keys, fixed 4 keys and 6 keys BCD with Facility code, Wiegand 26-Bit – 3×4 matrix single key – 1 to 8 keys BCD, Clock & Data |
| Audio/Visual | Two tri-color LED indicators, built-in sounder |
| Design | Epoxy-potted, fully-sealed in a rugged metal slim enclosure, high strength construction, high-sensitive piezoelectric metal keys, no moving parts. Highly suitable for extremely harsh environments. |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Suitable for outdoor use (meets IP65) |
| Operating Temperature Range | -31ºC to 63ºC (-25ºF to 145º F) |
| Operating Humidity Range | 0% to 95% (non-condensing) |
| RFI Protection | > 20 V/m up to 1000 MHz |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x W x D) | 120 x 65 x 27 mm (4.7 x 2.6 x 1.1 in.) |
| Weight | 500 g (17.6 oz) |
| SYSTEM COMPONENTS | The AY-T55 is compatible with a variety of Rosslare’s access controllers, as well as with many third-party access control systems. |
