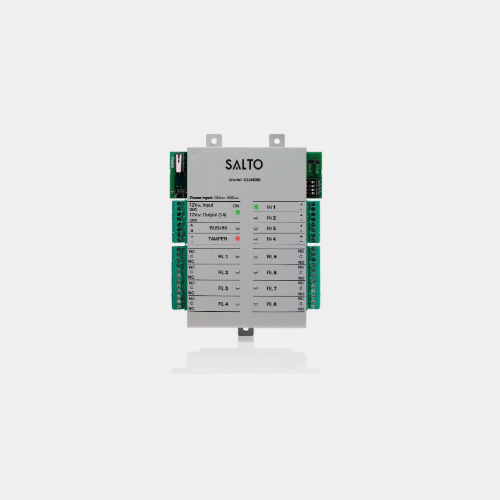

SALTO EXPANSION BOARD – CU4EB8

分類: , 標籤:

描述

SALTO EXPANSION BOARD – CU4EB8

The CU4EB8 provides multi-relay switchable output management to external systems such as lift floor level access, multi-shutter and barrier systems, machine switching and more.

Features

  • Works with the CU42xx.
  • Input and output board managed by the controller.
  • Software configuration.
  • Up to 16 connected units.
  • Additional control output relays.
  • Compatible with the SALTO ProAccess SPACE alarm event engine module to manage trigger events through inputs when connected to an online network via BUS485.

Technical Characteristics

  • Connection to the controller through BUS485.
  • 8 relay outputs.
  • 4 relay inputs.
  • 2 tamper inputs (input, switch).
  • The maximum cable length between the I/O board and the controller is up to 400 meters.1
  • Connection to the controller using 2 wire connection, twisted pair.
  • Power consumption: 12V DC 400mA, supplied by a power adaptor.

Technology platforms

SALTO Space
  • SVN data-on-card
  • JustIN Mobile – Digital Key

Technical Drawing
