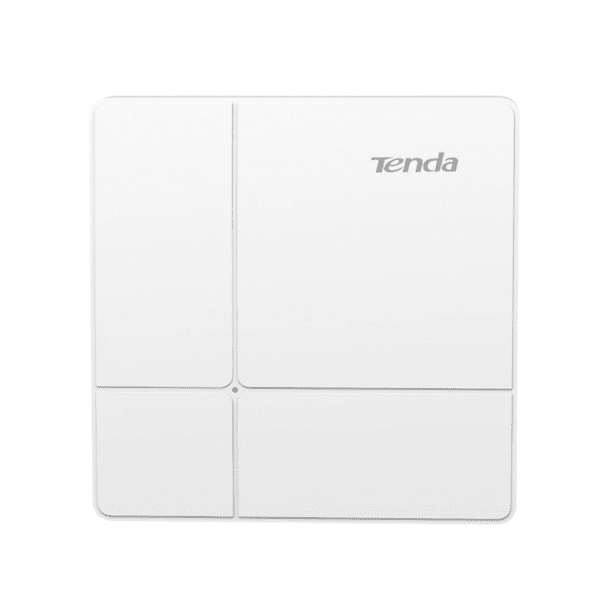

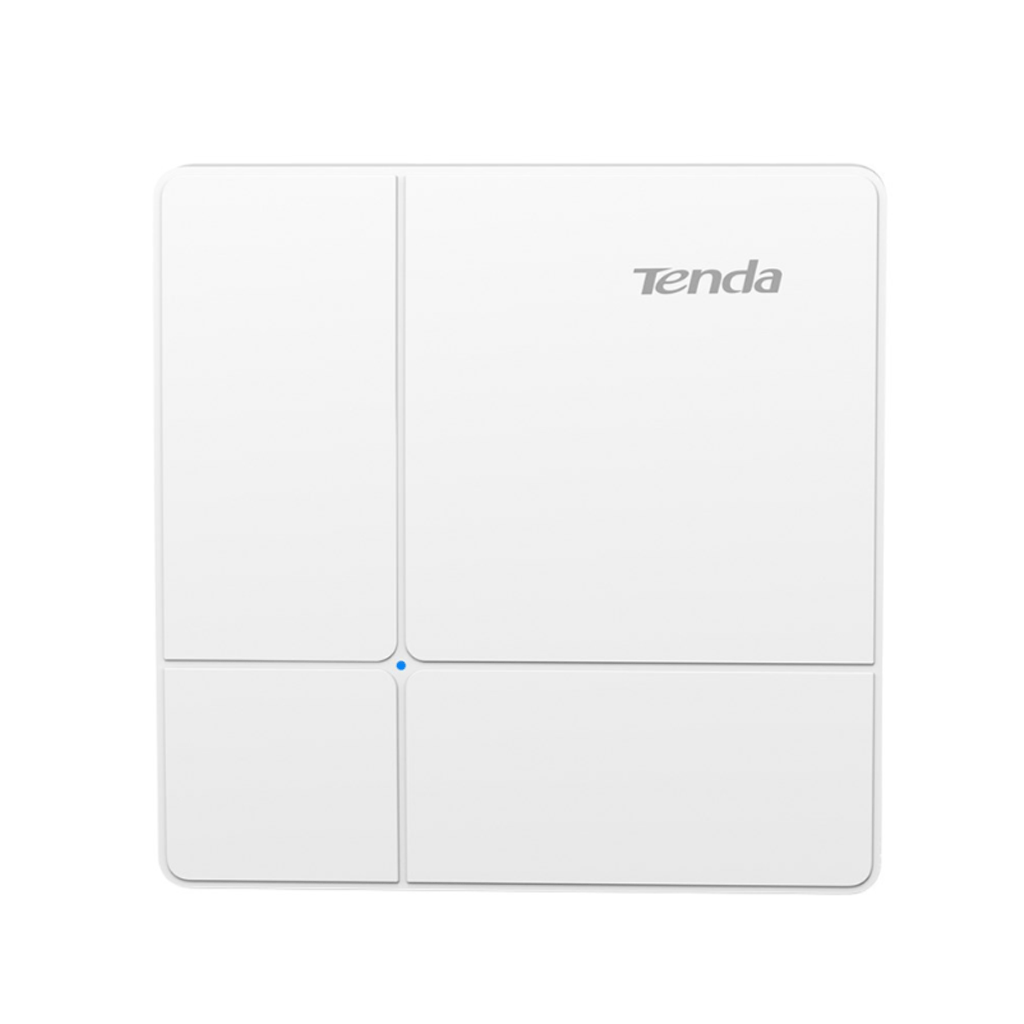

Tenda i23
AC1200 Wave 2 Gigabit Access Point
Features
- Gigabit internet connections for ultra-fast experience
- IEEE 802.11ac Wave 2 and MU-MIMO
- Dual-band for more connected clients
- Built-in omni-directional antennas
- Resource allocation fairness for reliable wireless network
- Multiple interference-mitigation technologies
- VLAN tagging for SSID
- Standard PoE sourcing and DC power supply for easy deployment
- Centralized management
Specifications
| Product Information | |
| Model | i23 |
| Category | Ceiling |
| Dimension | 178 × 178 × 38mm |
| Hardware | |
| Interface | One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1 x RESET |
| LED indicator | 1 x SYS |
| Maximum Power Consumption | 10.5W |
| Power Supply | 802.3af/at & DC: 12V 1A |
| Max. Number of Clients | 256 |
| Recommended Clients | 40 |
| Antenna Gain | 3dBi |
| 2.4GHz maximum power | • CE: <20 dBm (2.4 GHz, EIRP) • FCC: <26dBm (2.4 GHz) |
| 5GHz maximum power | • CE: <<23 dBm(5 GHz, EIRP) • FCC: <26 dBm(5 GHz) |
| Reception Sensitivity | 802.11b -93 dBm 2.4 GHz 802.11n (MCS7) -73dBm 5 GHz 802.11a -93 dBm 5 GHz 802.11n (MCS7) -74 dBm |
| Frequency Range | 2.4GHz&5GHz |
| Standard & Protocol | 802.11a/b/g/n/ac(wave2) |
| Maximum wireless speed | 2.4GHz: 300Mbps 5GHz: 867Mbps |
| Bandwidth | 20MHz/40MHz/80MHz |
| Others | |
| Operation Temperature | -10℃ ~ 40℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -30℃ ~ 70℃ |
| Storage Humidity | 10%~90% non-condensing |
