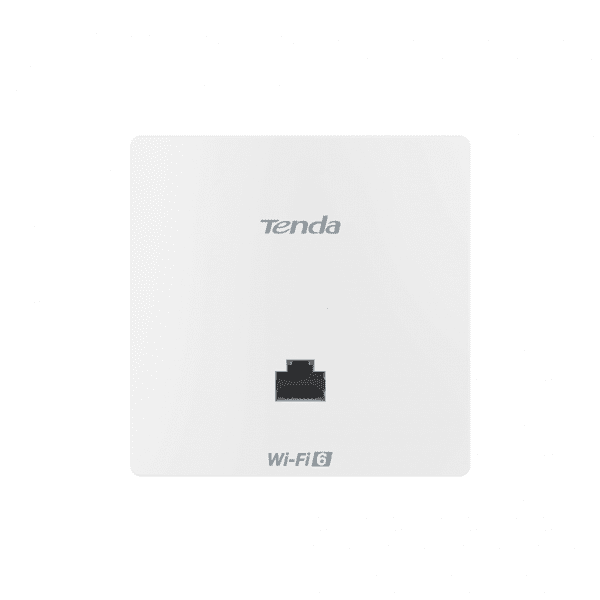

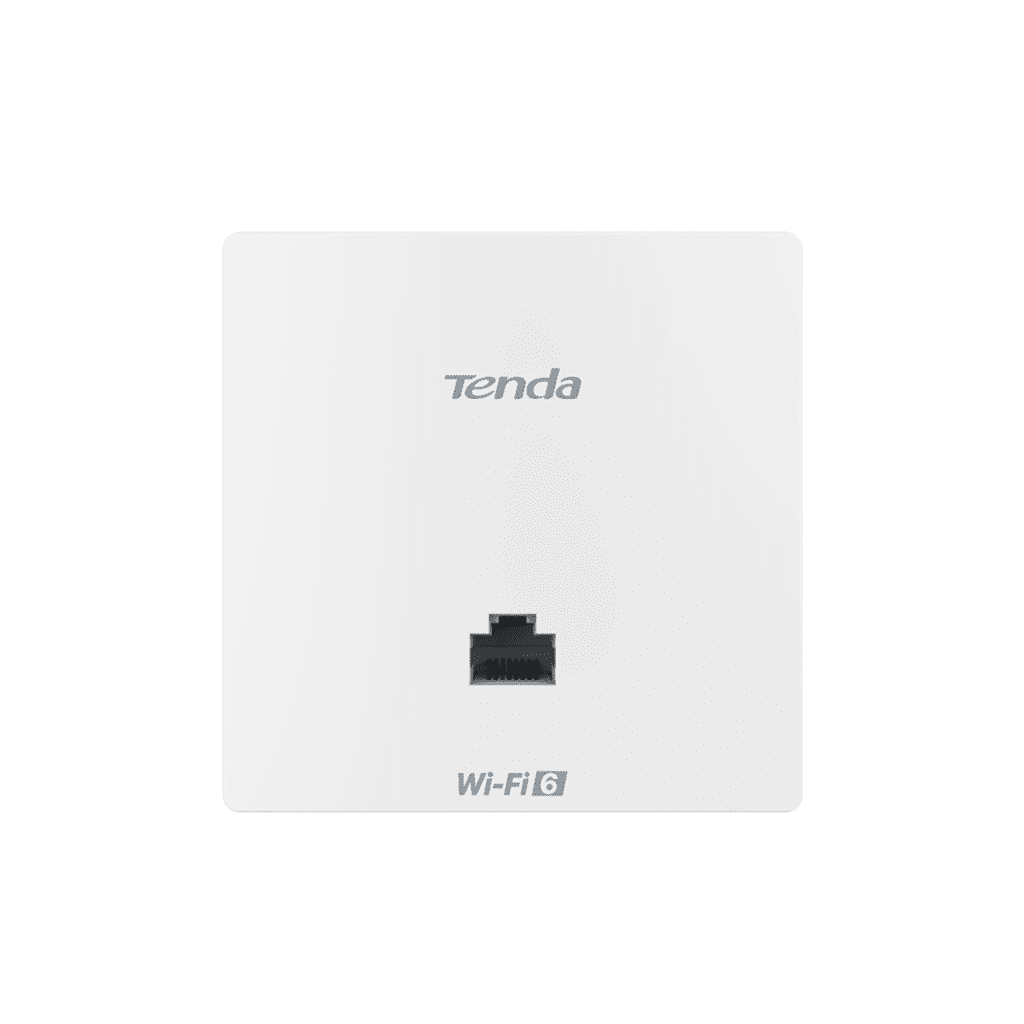

Tenda W15
AX3000 Dual-Band Gigabit Wi-Fi6 In-Wall AP
Features
- Mainstream colors + frosted shading design
- Wireless speed up to 3000Mbps, 160MHz channel bandwidth gaming and watching live broadcasts faster
- 10mm ultra-thin “seamless wall-mounted” design
- Supports standard PoE power supply, a network cable achieve PoE power supply
- Standard 86 panel design to fit any house, enjoy high-speed Wi-Fi in five easy steps
- Seamless roaming at 50 ms, walk around the whole house and automatically switch to the best WiFi
Specifications
| Product Information | |
| Model | W15 |
| Category | In-wall |
| Dimension | 86*86*32mm |
| Hardware | |
| Interface | One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED Indicator | 1*SYS |
| Maximum Power Consumption | 8.5W |
| Power Supply | PoE 802.3af |
| Max. Number of Clients | 256 |
| Recommended Clients | 60 |
| Antenna Gain | 3dBi |
| 2.4GHz maximum power | 20dBm |
| 5GHz maximum power | 19dBm |
| Reception Sensitivity | 2.4GHz 802.11b -98dBm 2.4GHz 802.11n (MCS7) -73.5dBm 2.4GHz 802.11ax (MCS11) -62.5dBm 5GHz 802.11a -94dBm 5GHz 802.11n (40M-MCS7) -72dBm 5GHz 802.11ax (80M-MCS11) -58dBm |
| Frequency Range | 2.4GHz&5GHz |
| Standard&Protocol | IEEE 802.11b/g/n/a/ac/ax(wave2) |
| Maximum wireless speed | 2.4GHz: 574Mbps 5GHz: 2402Mbps |
| Bandwidth | 20MHz/40MHz/80MHz/160MHz |
| Others | |
| Operation Temperature | -10℃ ~ 45℃ |
| Operating Humidity | -30℃ ~ 70℃ |
| Storage Temperature | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
