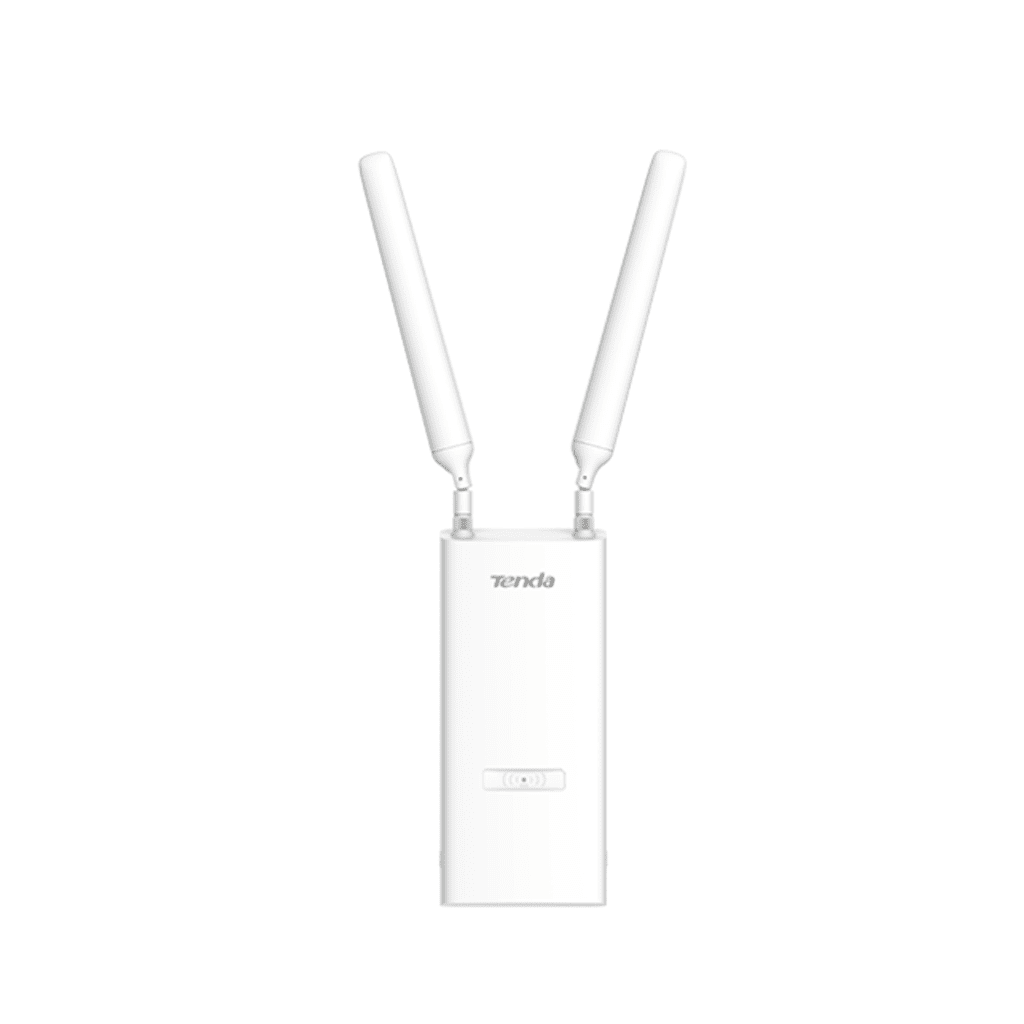

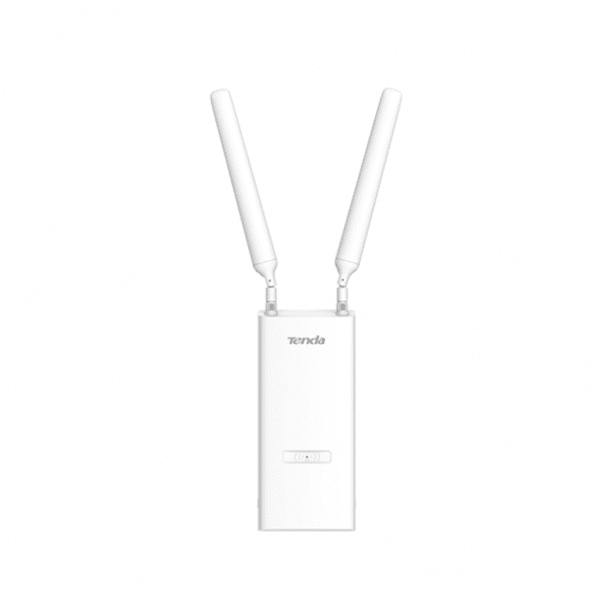

Tenda OAP3000 V1.0
AX3000 Indoor/Outdoor Wi-Fi6 Access Point
Features
- Always Connect to Best Wi-Fi Signal with Millisecond-level Roaming
- Dual-band For More Connected Clients
- 160MHz Channel Bandwidth, Experience The Double Speed
- High-gain Omni-directional Antennas
- PoE 802.3at And Passive PoE Power, Supply Supported For Easy Deployment
- Extreme Environment, Also Can Work Normally
- Easy To Setup And Management
Specifications
| Product Information | |
| Model | OAP3000 |
| Category | Pole Mounting and Wall Mounting |
| Dimension | 194.7* 83* 42.1 mm |
| Hardware Specifications | |
| Interface | 1*Gigabit Ethernet Port |
| Button | 1*Reset |
| LED indicator | 1*SYS |
| Maximum Power Consumption | 256 |
| Power Supply | 802.3at PoE，48-51V Passive PoE |
| Max. Number of Clients | 16.8W |
| Recommended Clients | 80 |
| Antenna Gain | 2.4GHz: 2*4dBi 5GHz: 2*5 dBi |
| 2.4GHz maximum power | CE: <20 dBm ( EIRP) FCC: <28 dBm |
| 5GHz maximum power | CE: <23 dBm( EIRP) FCC: <26 dBm |
| Reception Sensitivity | 11b:-99dBm（1Mbps） 11a:-96dBm(6Mbps),-78dBm(54Mbps) 11g:-79dBm(54Mbps) 11n:20MHz:-96dBm(mcs0),-77dBm(mcs7) 11n:40MHz:-74dBm(mcs7) 11ax:20MHz:-67dBm(mcs11) 11ax:40MHz:-94dBm(mcs0),-64dBm(mcs11) 11ax:80MHz:-90dBm(mcs0),-59dBm(mcs11) 11ax:160MHz:-56dBm(mcs11) |
| Wireless Specifications | |
| Frequency Range | 2412MHz-2472MHz,5150MHz- 5350MHz, 5470MHz-5725MHz, 5725MHz- 5850MHz |
| Standard & Protocol | IEEE 802.11b/g/n/a/ac/ax |
| Maximum wireless speed | 2.4GHz: 574Mbps 5GHz: 2402Mbps |
| Bandwidth | 2.4GHz:20MHz/40MHz 5GHz:20MHz/40MHz/80MHz/160MHz |
| Others | |
| Operation Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -30℃ ~ 70℃ |
| Storage Humidity | 5%~90% non-condensing |
