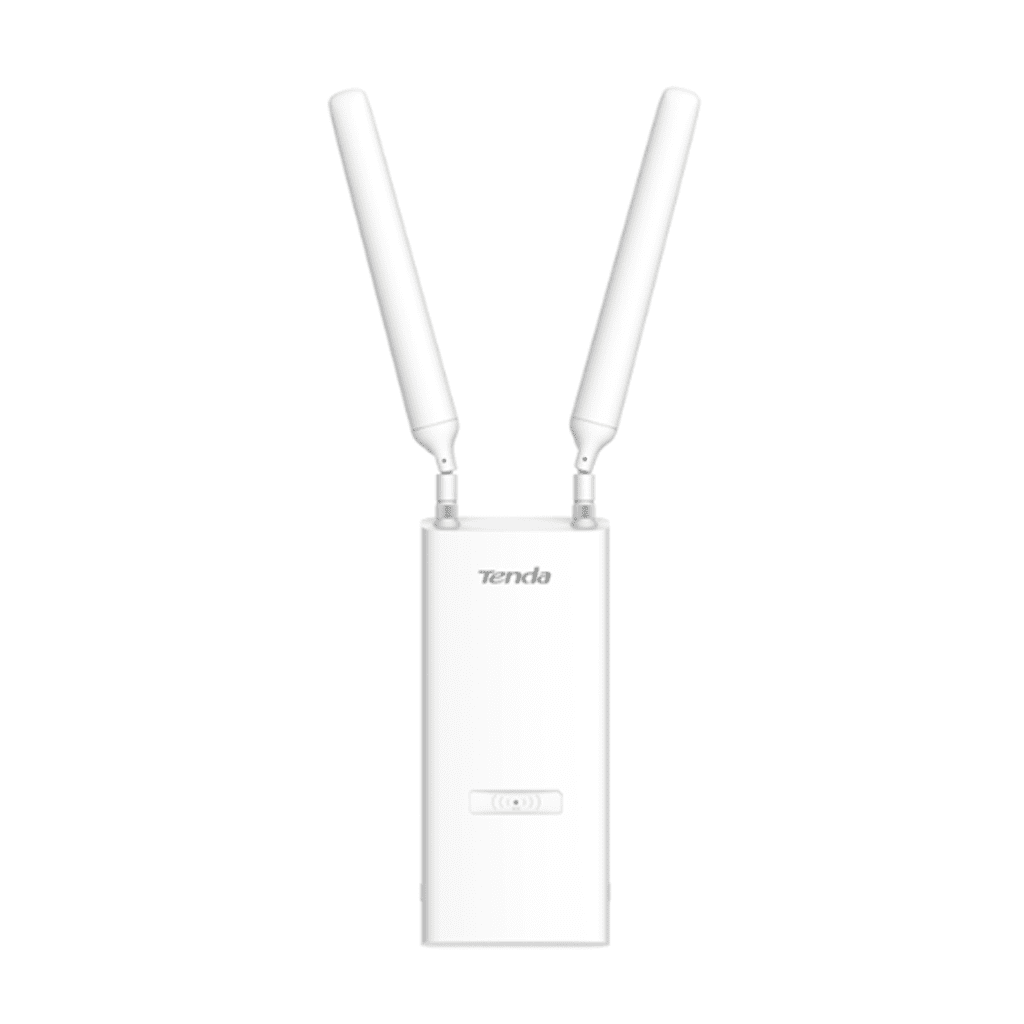

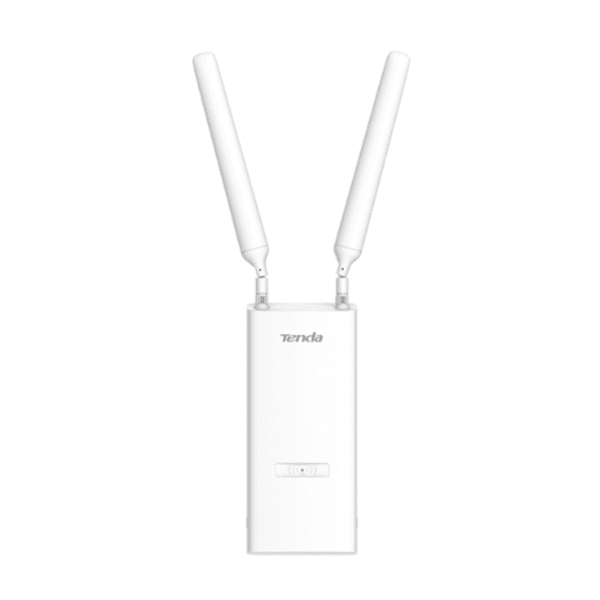

Tenda OAP1200
802.11AC Indoor/Outdoor Wi-Fi Access Point
Features
- Durable IP65 enclosure for outdoor Wi-Fi applications
- IEEE 802.11ac Wave2 and MU-MIMO
- Dual-band for more connected clients
- High-gain omni-directional antennas
- Built-in RF for intelligent optimization
- VLAN tagging for SSID
- PoE 802.3af and Passive PoE power supply, supported for easy deployment
Specifications
| Product Information | |
| Model | OAP1200 |
| Category | Outdoor AP |
| Dimension | 194.7*83*42.1 mm |
| Hardware | |
| Interface | One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED Indicator | 1 x SYS |
| Maximum Power Consumption | 11.5w |
| Power Supply | 802.3af & 24V 0.5A Passive PoE |
| Max. Number of Clients | 256 |
| Recommended Clients | 50 |
| Antenna Gain | 5dBi |
| 2.4GHz maximum power | • CE: <20 dBm (2.4 GHz, EIRP) • FCC: <26dBm (2.4 GHz) |
| 5GHz maximum power | • CE: <23 dBm(5 GHz, EIRP) • FCC: <26dBm(5 GHz) |
| Reception Sensitivity | 802.11b -93 dBm 2.4 GHz 802.11n (MCS7) -73dBm 5 GHz 802.11a -93 dBm 5 GHz 802.11n (MCS7) -74 dBm |
| Wireless Specifications | |
| Frequency Range | 2.4GHz&5GHz |
| Standard&Protocol | 802.11a/b/g/n/a/ac(wave2) |
| Maximum wireless speed | 2.4GHz: 300Mbps 5GHz: 867Mbps |
| Bandwidth | 20MHz/40MHz/80MHz |
| Others | |
| Operation Temperature | -30℃ ~ 50℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -30℃ ~ 70℃ |
| Storage Humidity | 10%~90% non-condensing |
