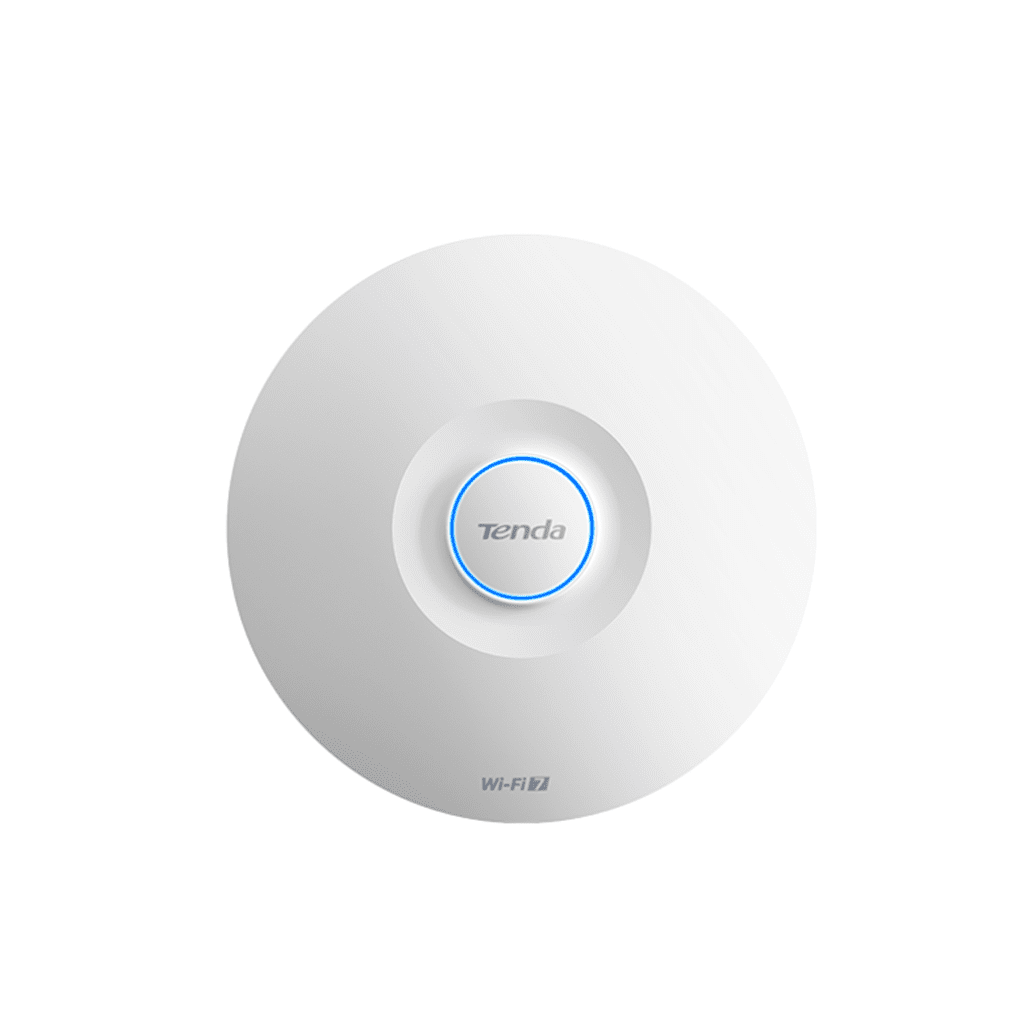

Tenda i36
BE5010 Dual-Band WiFi7 Ceiling Access Point
Features
- Unmatched speed up to 5.1 Gbps
- 2.5 Gigabit Wired Connections
- Independent power amplifiers and high gain antennas deliver great Wi-Fi Coverage
- Always Connect to Best Wi-Fi Signal with Millsecond-level Roaming
- Load balance for Wi-Fi user
- Easy to setup and management
Specifications
| Product Information | |
| Model | i36 |
| Category | Ceiling |
| Dimension | Φ250.6*55 mm |
| Hardware | |
| Interface | 1*100/1000/2500Mbps Ethernet Port (PoE) 1*10/100/1000Mbps Ethernet Port |
| Button | 1*Reset |
| LED Indicator | 1*SYS |
| Maximum Power Consumption | 17.4W |
| Power Supply | PoE 802.3at |
| Max. Number of Clients | 256 |
| Recommended Clients | 100 |
| Antenna Gain | 4dBi |
| 2.4GHz maximum power | • CE: <20 dBm (2.4 GHz, EIRP) • FCC: <29 dBm (2.4 GHz) |
| 5GHz maximum power | • CE: <23 dBm(5 GHz, EIRP) • FCC: <31 dBm(5 GHz) |
| Reception Sensitivity | 2.4GHz 802.11b -98dBm 2.4GHz 802.11n (MCS7) -77dBm 5GHz 802.11a -95dBm 5GHz 802.11n (40M-MCS7) -76dBm 5GHz 802.11ax (80M-MCS11) -64dBm |
| Frequency Range | 2.4GHz&5GHz |
| Standard&Protocol | IEEE 802.11a/b/g/n/ac/ax/be |
| Maximum wireless speed | 2.4GHz: 688Mbps 5GHz: 4323Mbps |
| Bandwidth | 2.4GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80/160 MHz |
| Others | |
| Operation Temperature | -10℃ ~ 40℃ |
| Operating humidity | 10%~90% non-condensing |
| Storage temperature | -30℃ ~ 70℃ |
| Storage humidity | 5%~90% non-condensing |
