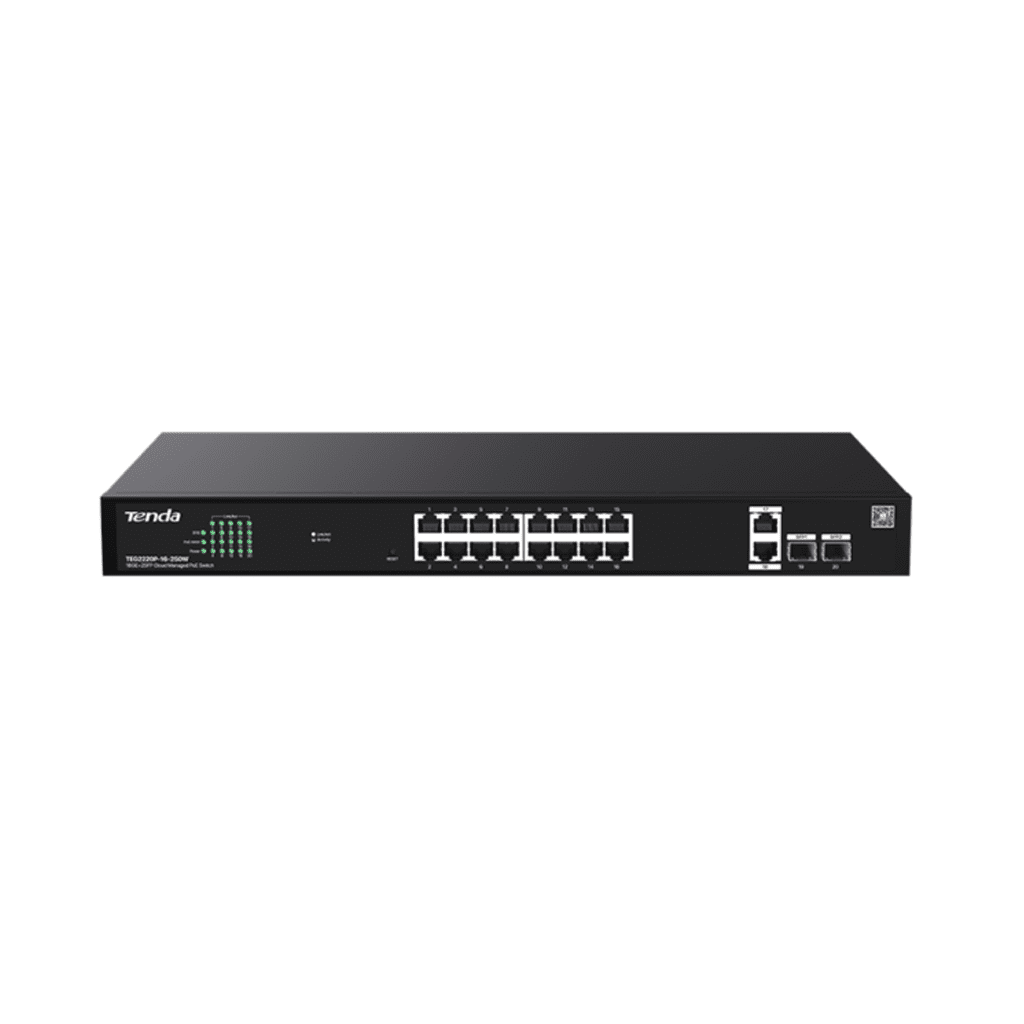

Tenda TEG2220P-16-250W
18GE+2SFP Cloud Managed PoE Switch
Features
- Network meets cloud, Everything is under control
- Remote restart of the PoE port
- Visual topology, Automatically generated
- Remote configuration, VLAN fast partition
- Real time alarm for abnormal status
- Port Custom terminal type, View port status
- Simple management, Minimal configuration
- Cloud Managed Switch
Specifications
| Hardware | |
| Dimensions | 440mm*178mm*44mm |
| Mounting | Rack mounting : support Desktop mounting: support Wall mounting: support |
| Enclosure material | Metal |
| Interfaces | (18) 1GE RJ45 ports (2) 1GE SFP ports |
| PoE interface | (16) PoE (Pins 1, 2+,3, 6-) |
| LED Indicator | Power Link/Act PoE MAX |
| Switching capacity | 40Gbps |
| Forwarding rate | 29.8Mpps |
| Power method | 100-240V AC，50 / 60Hz |
| Power consumption | 250W |
| Total available PoE | 30W |
| Max. PoE wattage per port by PSE | 230W |
| Lightning protection | Port: 6 KV Power：6 KV |
|
Button
|
Factory reset |
| Operating temperature | 0°C – 45℃ |
| Storage temperature | -40°C – 70°C |
| Operating humidity | 10% – 90%,non-condensing |
| Storage humidity | 5% – 90%,non-condensing |
