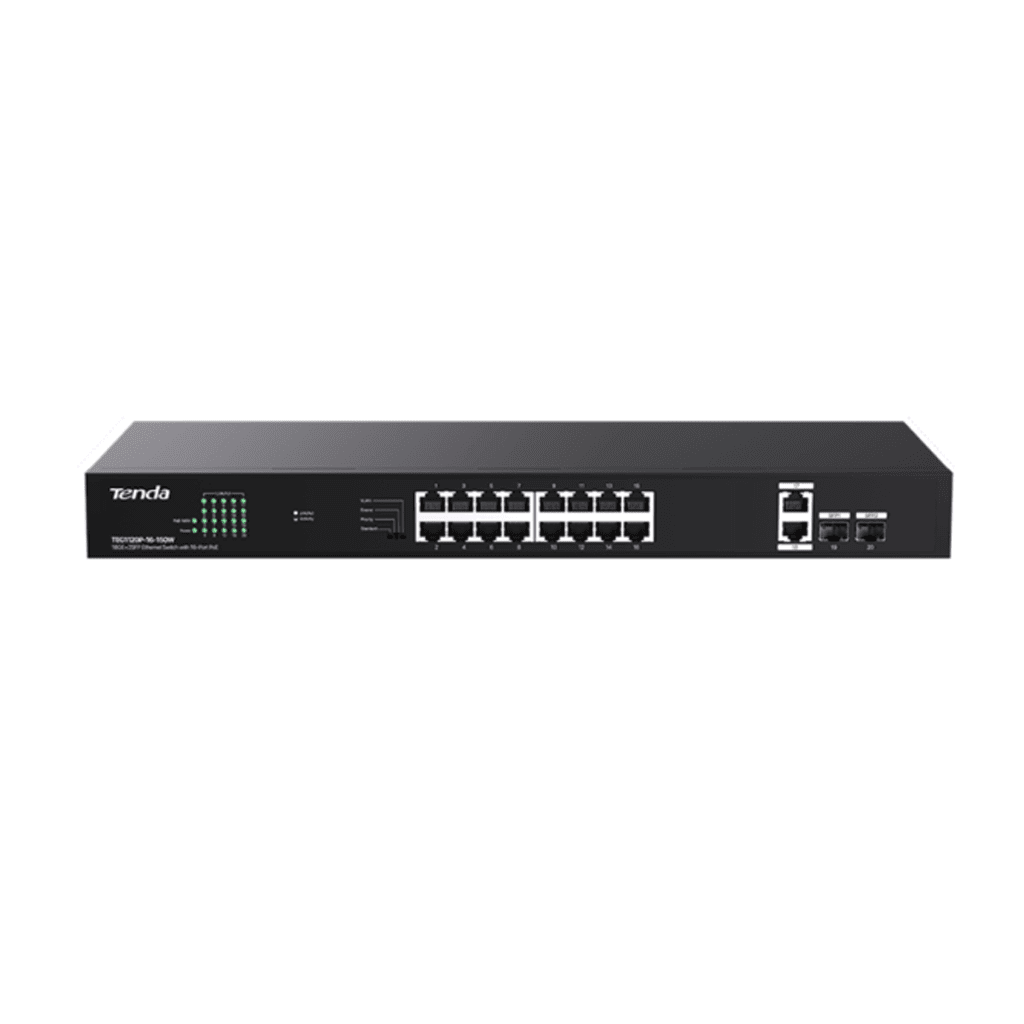

Tenda TEG1120P-16-150W
18GE+2SFP Ethernet Switch With 16-Port PoE
Features
- High speed network transmission, Experience extreme smoothness
- GE and SFP Uplink Ports, Easier HD Monitoring
- Smart PoE Power Supply, Stable Transmission
- 4 Modes for More Scenarios, One-key To Change Smart and Easy
Specifications
| Hardware | |
| Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at |
| LED Indicator | Power Link/Act PoE MAX |
| Interfaces | (18) 1GE RJ45 ports (2) 1GE SFP ports |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | 1 |
| Dimensions | 440mm*178mm*44mm |
| Level of protection | Port: 6 KV Power：6 KV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 56Gbps |
| Forwarding rate | 41.7Mpps |
| Buffer | 4Mb |
| MAC address table | 8K |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 230W |
| Power consumption | 250W |
| Input voltage | 100-240V AC，50 / 60Hz |
| Mounting | Rack mounting : support Desktop mounting: support Wall mounting: support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
