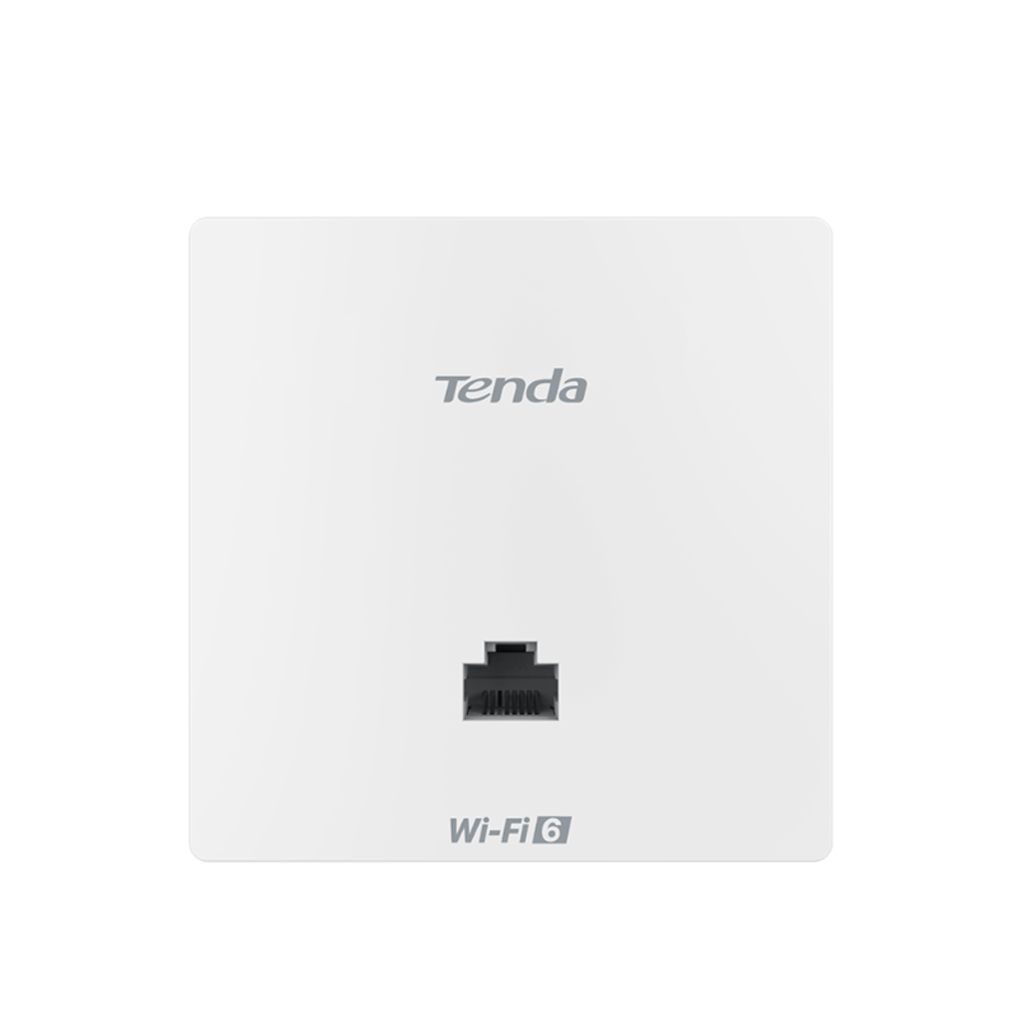

Tenda W13
AX1500 Dual-Band Gigabit Wi-Fi 6 In-Wall AP
Features
- Mainstream colors + frosted shading design
- AX1500 Wi-Fi 6, Super Fast & Stable
- 10mm ultra-thin “seamless wall-mounted” design
- Seamless roaming at 50 ms Walk around the whole house
- Supports standard PoE power supply, A network cable achieve PoE power supply
- Standard 86 panel design to fit any house, Enjoy high-speed Wi-Fi in five easy steps
- Separated IPTV and Internet ports, Enjoy both TV and Internet
Specifications
| Product Information | |
| Model | W13 |
| Category | In-wall |
| Dimension | 86*86*32mm |
| Hardware | |
| Interface | One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED indicator | 1*SYS |
| Maximum Power Consumption | 6.8W |
| Power Supply | PoE 802.3af |
| Max. Number of Clients | 256 |
| Recommended Clients | 40 |
| Antenna Gain | 3dBi |
| 2.4GHz maximum power | 20dBm |
| 5GHz maximum power | 19dBm |
| Reception Sensitivity | 2.4GHz 802.11b -95dBm 2.4GHz 802.11n (MCS7) -74dBm 5GHz 802.11a -94dBm 5GHz 802.11n (40M-MCS7) -72dBm 5GHz 802.11ax (80M-MCS11) -60dBm |
| Frequency Range | 2.4GHz&5GHz |
| Standard & Protocol | IEEE 802.11b/g/n/a/ac/ax |
| Maximum wireless speed | 2.4GHz: 300Mbps 5GHz: 1201Mbps |
| Bandwidth | 20MHz/40MHz/80MHz |
| Others | |
| Operation Temperature | -10℃ ~ 45℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -30℃ ~ 70℃ |
| Storage Humidity | 5%~90% non-condensing |
