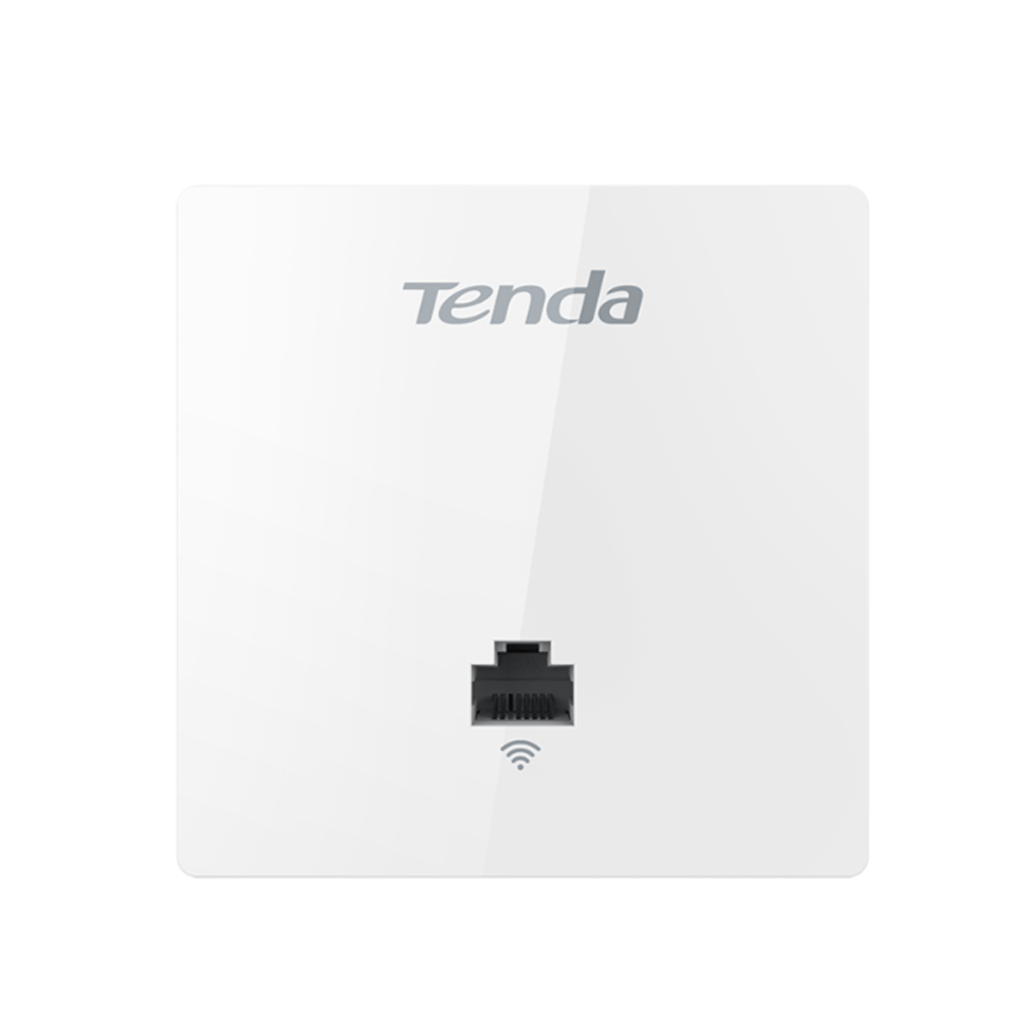

Tenda W12 V3.0
AC1200 Dual Band Gigabit In-Wall Access Point
Features
- 100+ colours available
- Dual-band Gigabit Wired/Wireless
- With the latest WAVE 2.0 wireless technology, providing access for up to 50 devices
- RF signal optimisation, full coverage for 2 rooms
- Band Steering(5G first) to guarantee network performance
- Supports standard PoE power supply for easier installation
Specifications
| Product Information | |
| Model | W12 |
| Category | In-wall |
| Dimension | 86*86*32mm |
| Hardware | |
| Interface | One 10/100/1000 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED indicator | 1*SYS |
| Maximum Power Consumption | 7.3W |
| Power Supply | PoE 802.3af |
| Max. Number of Clients | 256 |
| Recommended Clients | 35 |
| Antenna Gain | 3dBi |
| 2.4GHz maximum power | 18dBm |
| 5GHz maximum power | 17dBm |
| Reception Sensitivity | 2.4GHz 802.11b -88dBm 2.4GHz 802.11n (MCS7) – -72.5dBm 5GHz 802.11a -92.5dBm 5GHz 802.11n (MCS7) – -72dBm |
| Frequency Range | 2.4GHz&5GHz |
| Standard & Protocol | IEEE 802.11b/g/n/a/ac(wave2) |
| Maximum wireless speed | 2.4GHz:300Mbps 5GHz:867Mbps |
| Bandwidth | 20MHz/40MHz/80MHz |
| Others | |
| Operation Temperature | -10℃ ~ 45℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -30℃ ~ 70℃ |
| Storage Humidity | 5%~90% non-condensing |
