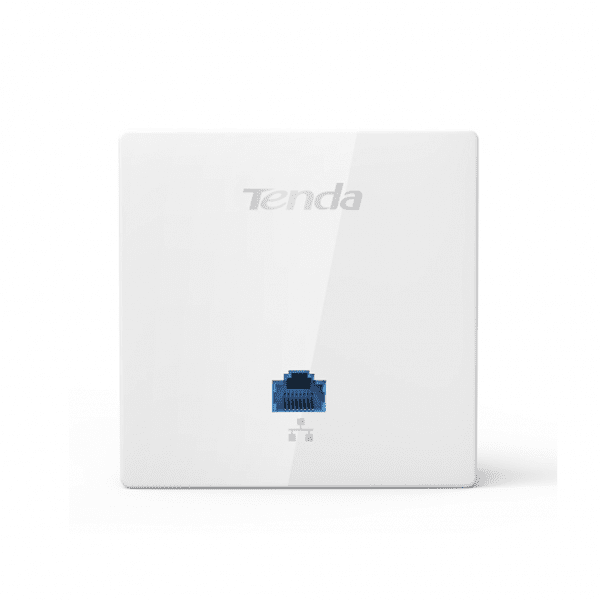

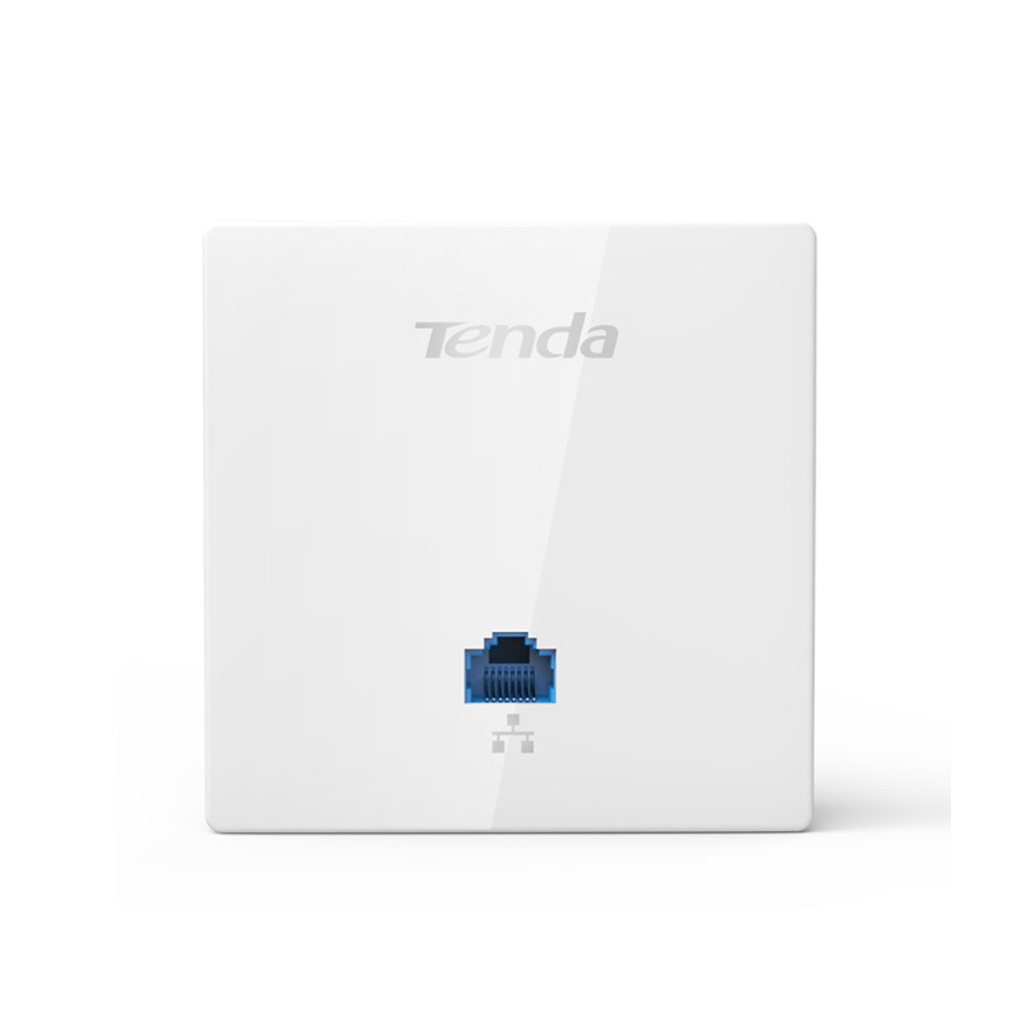

Tenda W6-S
N300 in-wall Wireless Access Point
Features
- 2.4GHz 11n 300Mbps
- Two 10/100Mbps LAN ports
- Compliant with PoE 802.3af
- VLAN tagging for multi SSID
- Centralized managed by M3
- 86 Type wall mount junction box design
Specifications
| Product Information | |
| Model | W6-S |
| Category | In-wall |
| Dimension | 86*86*34.8mm |
| Hardware | |
| Interface | One 10/100 Mbps Ethernet Port One 10/100 Mbps Ethernet Port (PoE) |
| Button | 1*Reset |
| LED indicator | 1*SYS |
| Maximum Power Consumption | 3.4W |
| Power Supply | PoE 802.3af |
| Max. Number of Clients | 64 |
| Recommended Clients | 5 |
| Antenna Gain | 2*2dBi |
| 2.4GHz maximum power | 18+/-1.5dBm |
| 5GHz maximum power | 2.4GHz 802.11b -90dBm 2.4GHz 802.11n (MCS7) -72dBm |
| Frequency Range | 2.4GHz |
| Standard&Protocol | IEEE 802.11b/g/n |
| Maximum wireless speed | 300Mbps |
| Bandwidth | 20MHz/40MHz |
| Others | |
| Operation Temperature | -10℃ ~ 45℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Temperature | -30℃ ~ 70℃ |
| Storage Humidity | 10%~90% non-condensing |
