描述

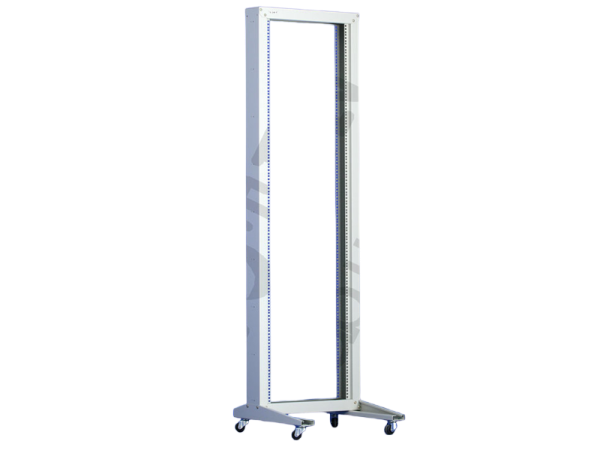

TOTEN-OR
open rack
TOTEN-OR 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Modular design, easy to install, low-cost, easy to load and unload, transport, and assemble.
規格

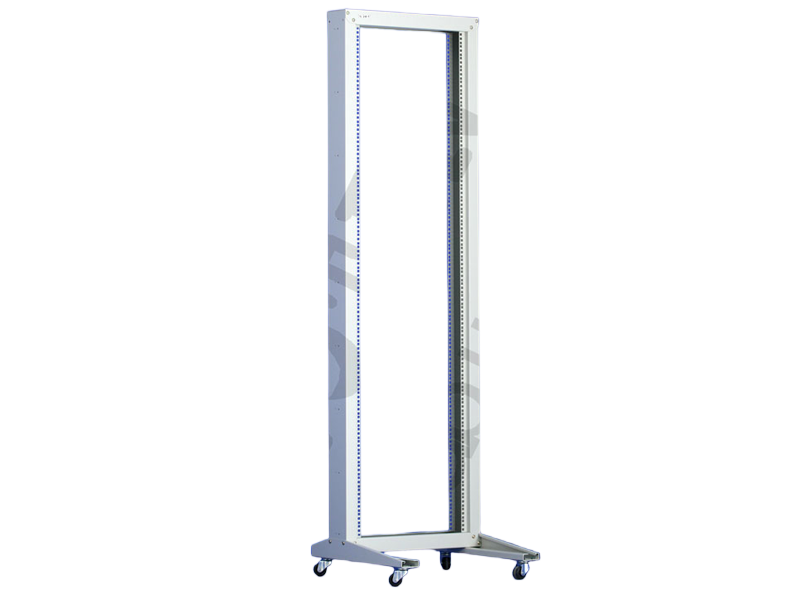

OR open rack
Standard
Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1、DIN41494; PART7 and GB/T3047.2-92 standards.
Features
Modular design, easy to install, low-cost, easy to load and unload, transport, and assemble;
Multiple configurations can be selected according to needs, such as cable trays, cable racks, horizontal pull-out work platforms, etc.
Load capacity: Static load 150KG
Protection level: IP20
Main materials
SPCC high-quality cold-rolled steel plate production; Thickness: base, upper and lower crossbeams 2.0mm, columns 1.5mm
Surface treatment: degreasing, acid washing, phosphating, electrostatic spraying
| Order Code | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) | Packaging size (WDH) | Volume (CBM) |
|---|---|---|---|---|---|---|
| OR.6622.90■■ | 22 | 600 | 600 | 1119 | 6701501149 | 0.1155 |
| OR.6632.90■■ | 32 | 600 | 600 | 1562 | 6701501592 | 0.1600 |
| OR.6637.90■■ | 37 | 600 | 600 | 1785 | 6701501815 | 0.1824 |
| OR.6642.90■■ | 42 | 600 | 600 | 2007 | 6701502037 | 0.2047 |
| OR.6647.90■■ | 47 | 600 | 600 | 2230 | 6701502260 | 0.2271 |
Cabinet Color Definition Table
| Order Code | color | color |
|---|---|---|
| OR.■■■■.■■01 | black | RAL9004 |
| OR.■■■■.■■02 | light gray | RAL7035 |
