描述

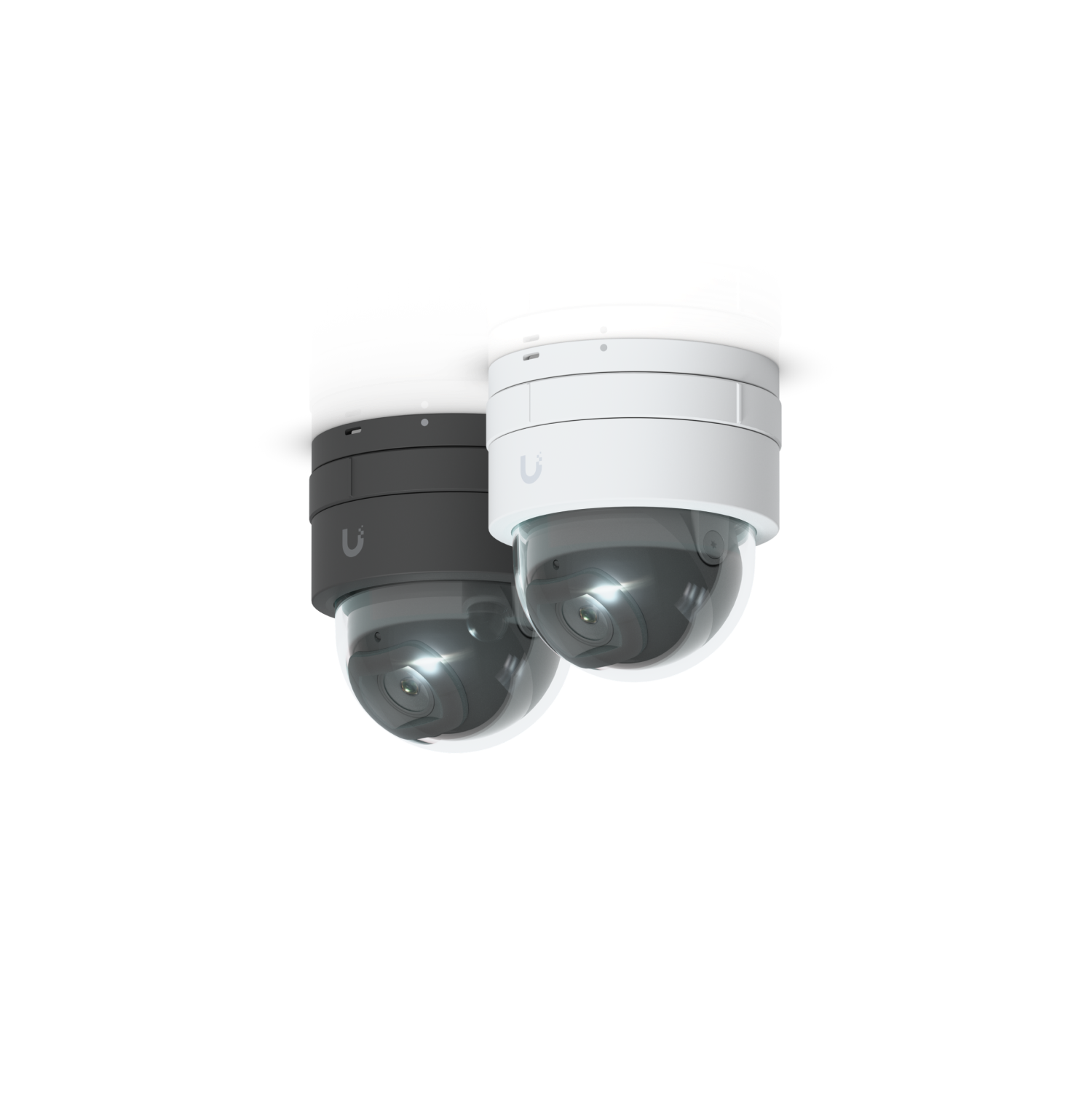

UVC-G5-Dome-Ultra
Camera G5 Dome Ultra
UVC-G5-Dome-Ultra 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.
功能重點
- 2K (4MP) video resolution
- Ultra-wide viewing angle (102.4°)
- 20 m (65 ft) IR night vision
- AI event detections
- Connect and power using PoE
- Optional Flush Mount for in-ceiling installation
規格
Overview
| Dimensions | ⌀63.6 x 68.2 mm; (⌀2.5 x 2.7") |
|---|---|
| IR Night Vision | 20 m (65 ft) |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Tamper Resistance | IK06 |
| Mounting | Surface mount (Included); Junction box, Ultra Flush mount (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP 2688 x 1512 (16:9) |
| Sensor | 1/2.4" CMOS |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 4.2W |
|---|---|
| Supported Voltage Range | 37–57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | 175 g (6.2 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Stainless steel |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
