描述

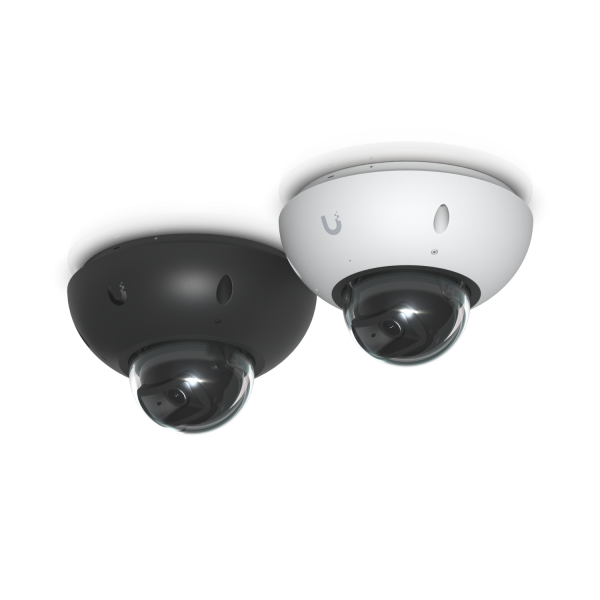

UVC-G6-Dome
Camera G6 Dome
UVC-G6-Dome 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
All-weather, vandal-proof 4K PoE camera with a 1/1.8″ 8MP image sensor, Multi-TOPS AI Engine, and long-range IR night vision ideal for discreet installations in high-traffic areas.
規格
Overview
| Dimensions | ⌀144.7x 96.3 mm ; (⌀5.7 x 3.8") |
|---|---|
| IR Night Vision | 30 m (98 ft) |
| Resolution | 4K |
| Networking Interface | 10/100 MbE RJ45 port |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Ceiling, Wall mount (Included); Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 9.25W |
|---|---|
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 820 g (1.8 lb) |
| Enclosure Material | Aluminum alloy |
| Mount Material | Polycarbonate |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
