描述
UVC-G6-Mini-Dome

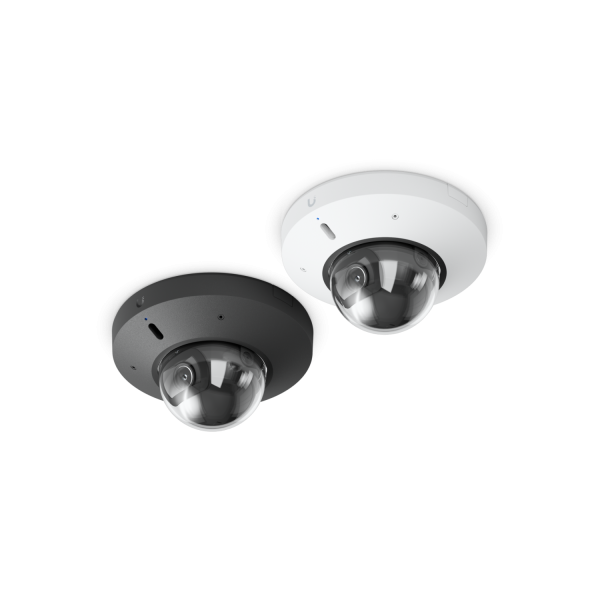

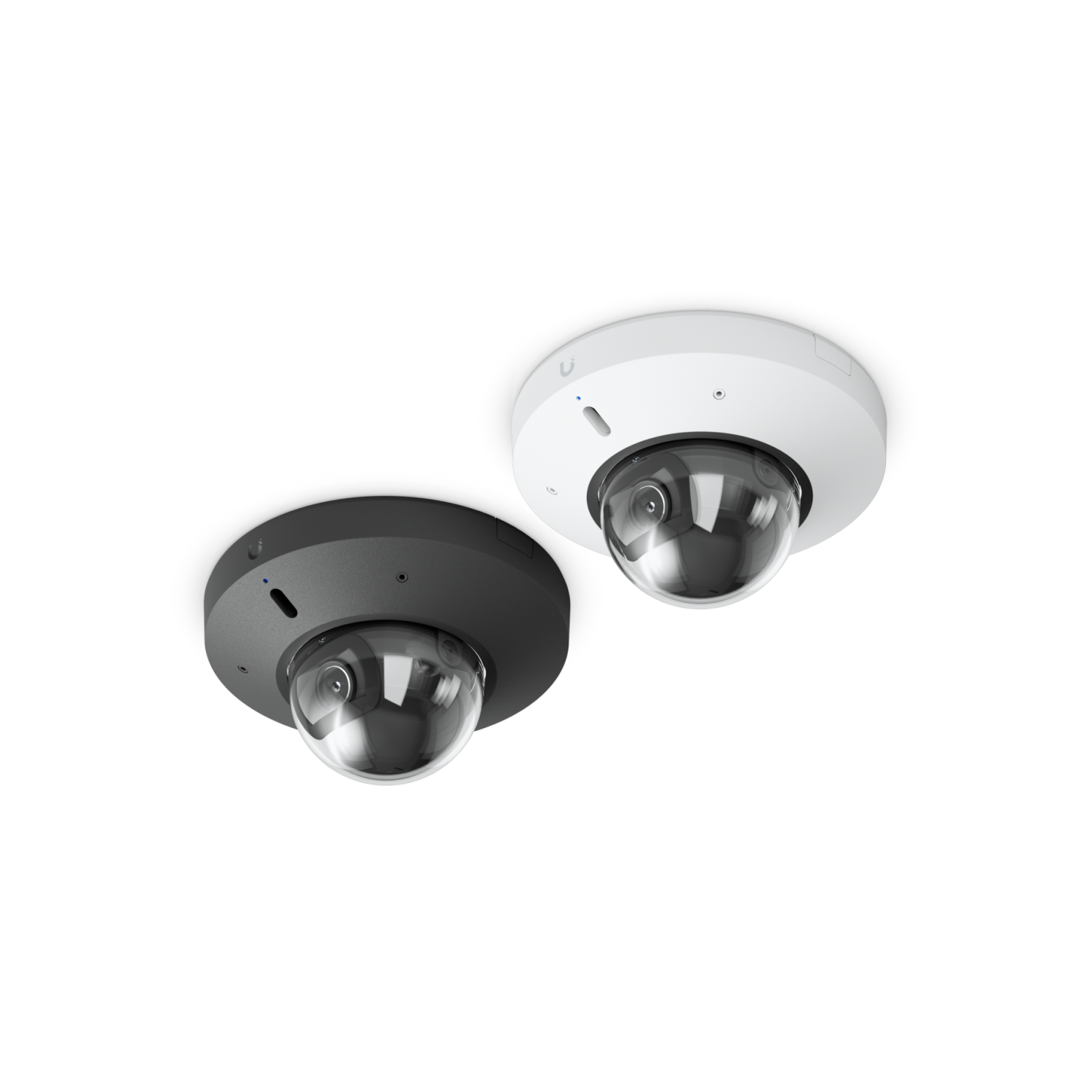

Camera G6 Mini Dome
UVC-G6-Mini-Dome 屬Ubiquiti UniFi閉路電視產品。傑成系統有限公司（香港防盜）為Ubiquiti UniFi產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
Incredibly compact 4K PoE camera with a 1/1.8″ 8MP image sensor, Multi-TOPS AI Engine, two-way audio, and IR night vision designed for discrete monitoring of high-traffic indoor areas.
規格
Overview
| Dimensions | ⌀100.8 × 56 mm ; (⌀4 × 2.2") |
|---|---|
| IR Night Vision | 20 m (65 ft) |
| Resolution | 4K |
| Field of View | H: 109.9°, V: 56.7°, D: 134.1° |
| Audio | Two-way audio |
| Tamper Resistance | IK08 |
| Mounting | Ceiling, Wall mount (Included); Gang Box Mounting Plate, Arm, Camera Dual mount, Junction box (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
|---|---|
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 9W |
|---|---|
| Supported Voltage Range | 37–57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | 254 g (9 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Button | (1) Factory-reset |
| Cable Diameter | Max. 6.5 mm (0.26") |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
